UNIVERSAL POWER BOARD WITH HIGH VOLTAGE INPUT
CUSTOMER : KF MOTORS

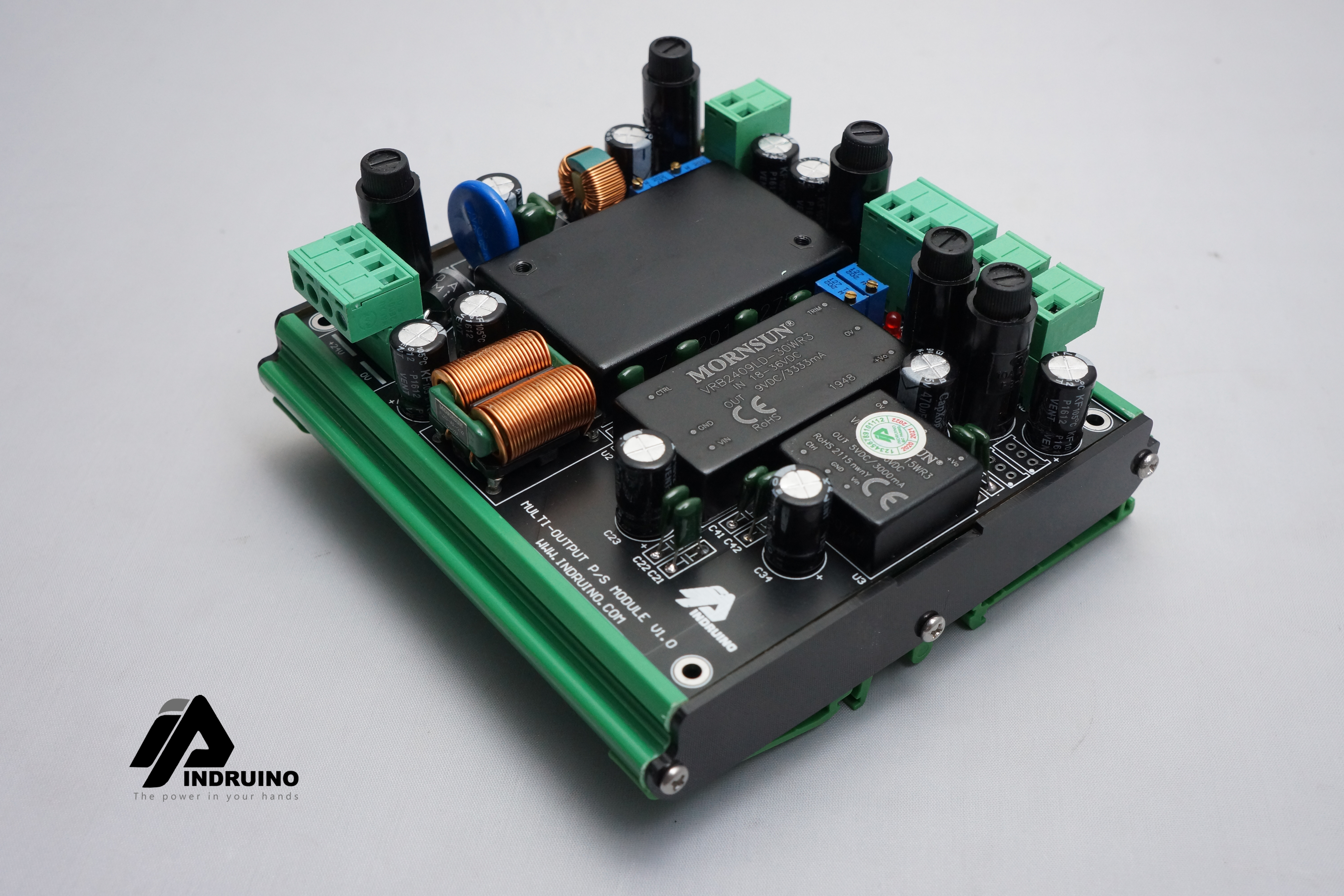

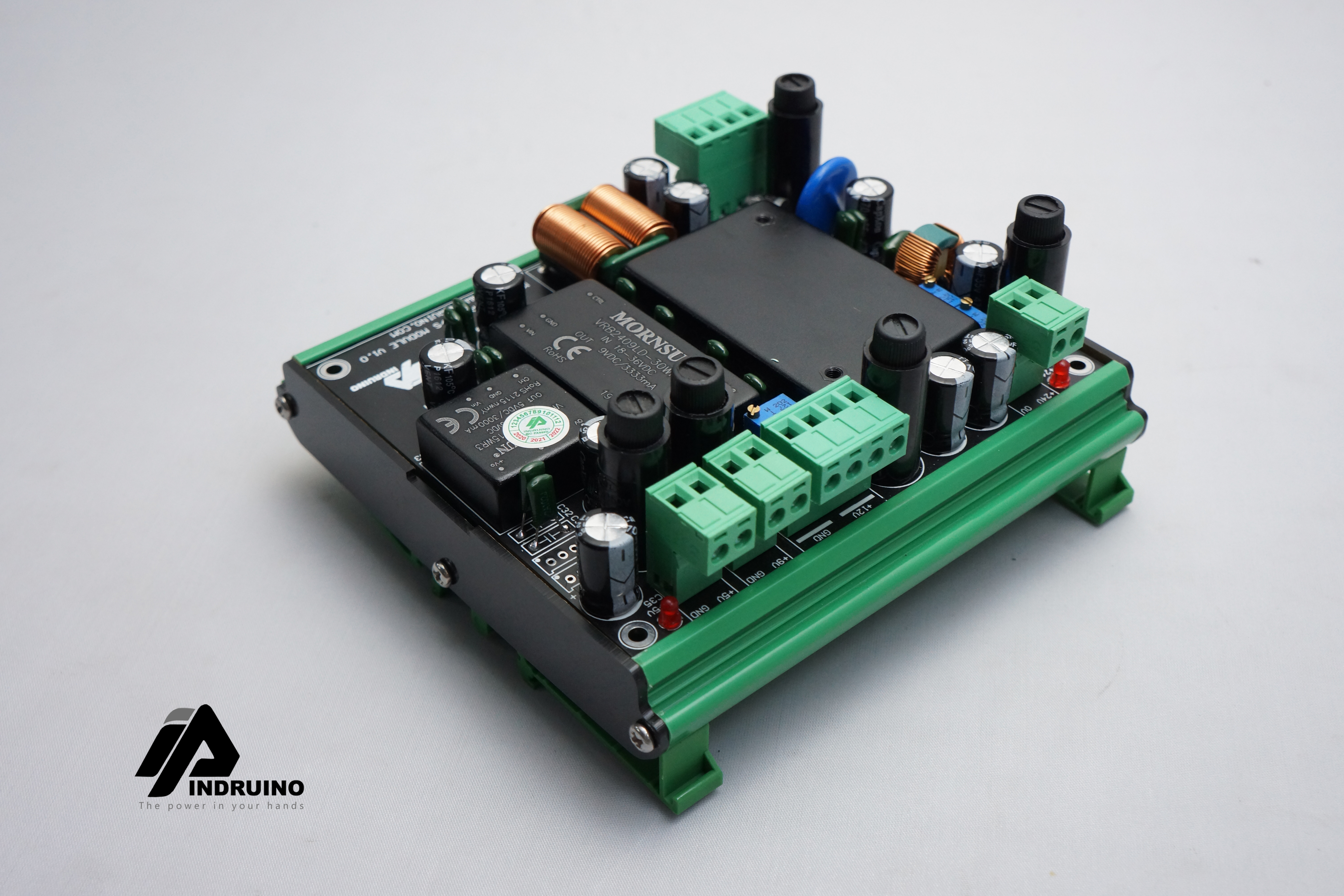

- This is a multi-function power board designed and manufactured by Indruino Company for customers.
- This power board has isolated DC/DC voltage conversion function, large input voltage range, high power and stable output power.
- The product is compactly designed, has a heat sink, uses high quality DC/DC modules, has good anti-interference ability, has fuses to protect against overcurrent, short circuit, and has LED status lights.
- Input voltage: 60-86VDC _Output voltage: 12VDC/12.5A isolated (150W)
- Output voltage: 5VDC/3A isolated (15W)
- Working temperature: -10 to 85 degrees Celsius
- Input overvoltage protection
- Include fuses for overcurrent and short circuit protection
- Include output voltage fine-tuning potentiometer
- Using plugable dominoes, convenient to install or remove
- There are 4 holes for M3 screws to fix the circuit board
- Dimensions (L x Width): 104 x 100mm
