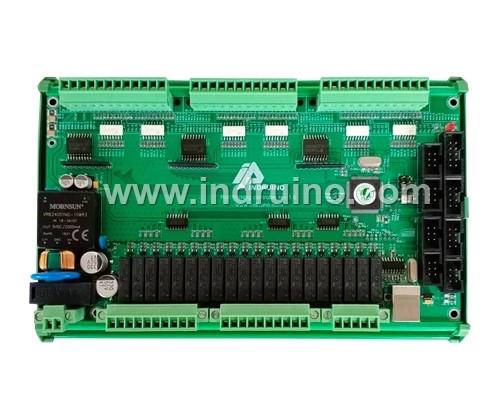

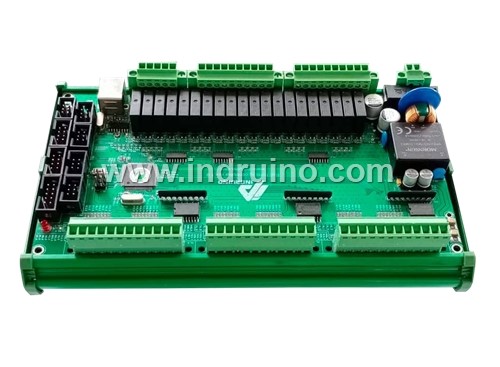

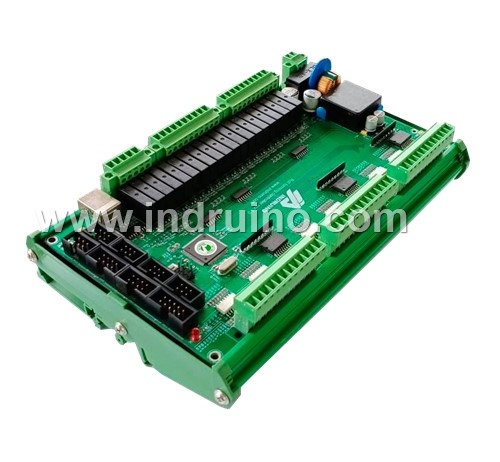

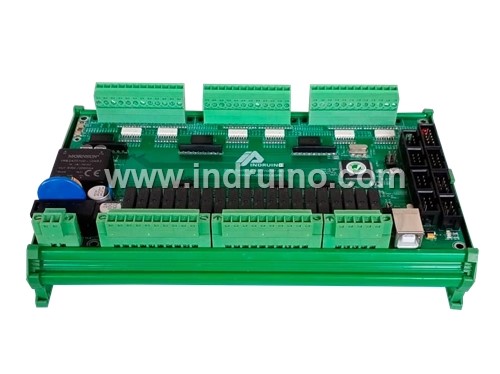

TOLE FORMING MACHINE CONTROLLER
CUSTOMER : VIETSTEEL
- This is an industrial roll forming machine controller. This product is designed and manufactured by Indruino Company according to the needs of customers. The controller includes encoder input signals, digital input, isolated relay contact output, using isolated DC/DC power, good anti-interference ability, stable operation in industrial environments. In addition, the controller is also capable of communicating with other external devices through communication standards such as USB, RS232, RS485...
- Using specialized connectors for industry, stable connection. Compact board size, easy to install.
- Power supply: 24VDC/1A
- Output power: 5VDC/2A isolated
- Microcontroller: ATMega2560
- Digital input: 24 isolated channels
- Relay trigger output: 20 channels of 3A relay contacts
- Communicate with encoder to read length
- There is a communication port with TFT LCD screen
- USB communication with computer to load firmware
- Support RS232, RS485 to communicate with other industrial equipment.
- Use specialized connectors with fixed screws
- Assembled according to Dinrail standards
- There are 4 holes for M3 screws to fix the circuit board
- Board size: 190 x 107mm
