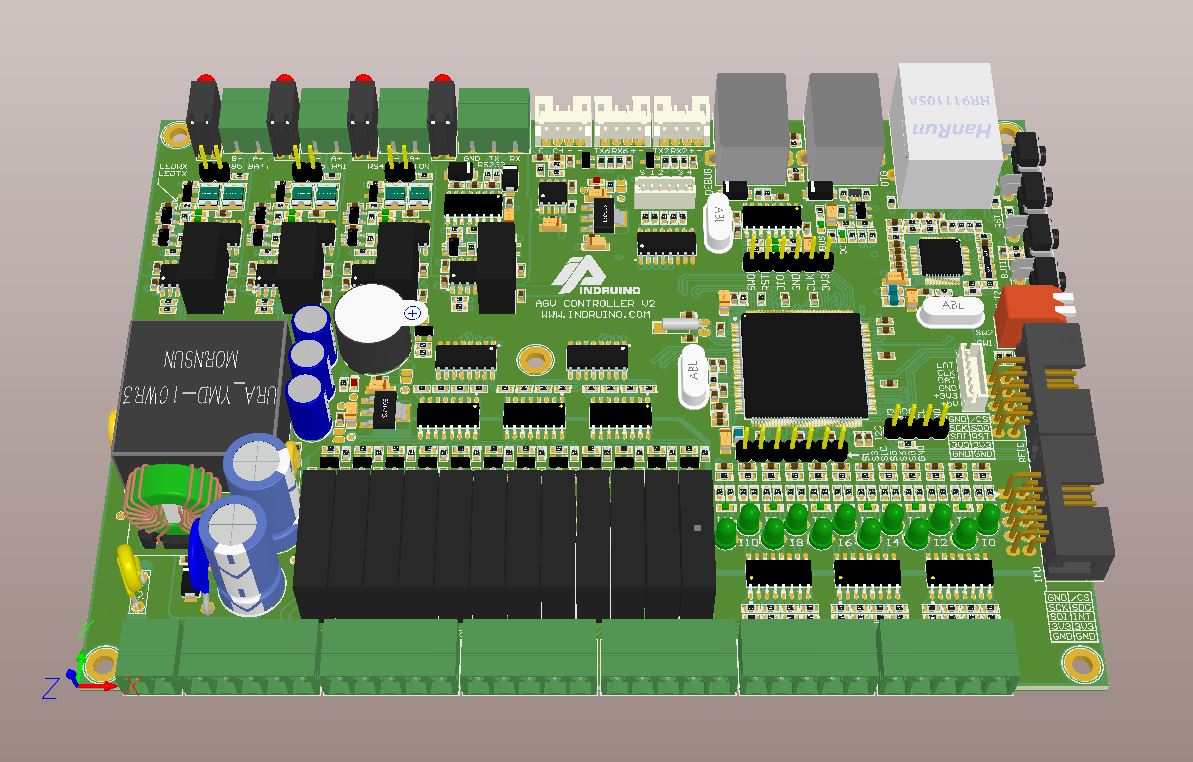

AGV_CONTROLLER_V2I0_01

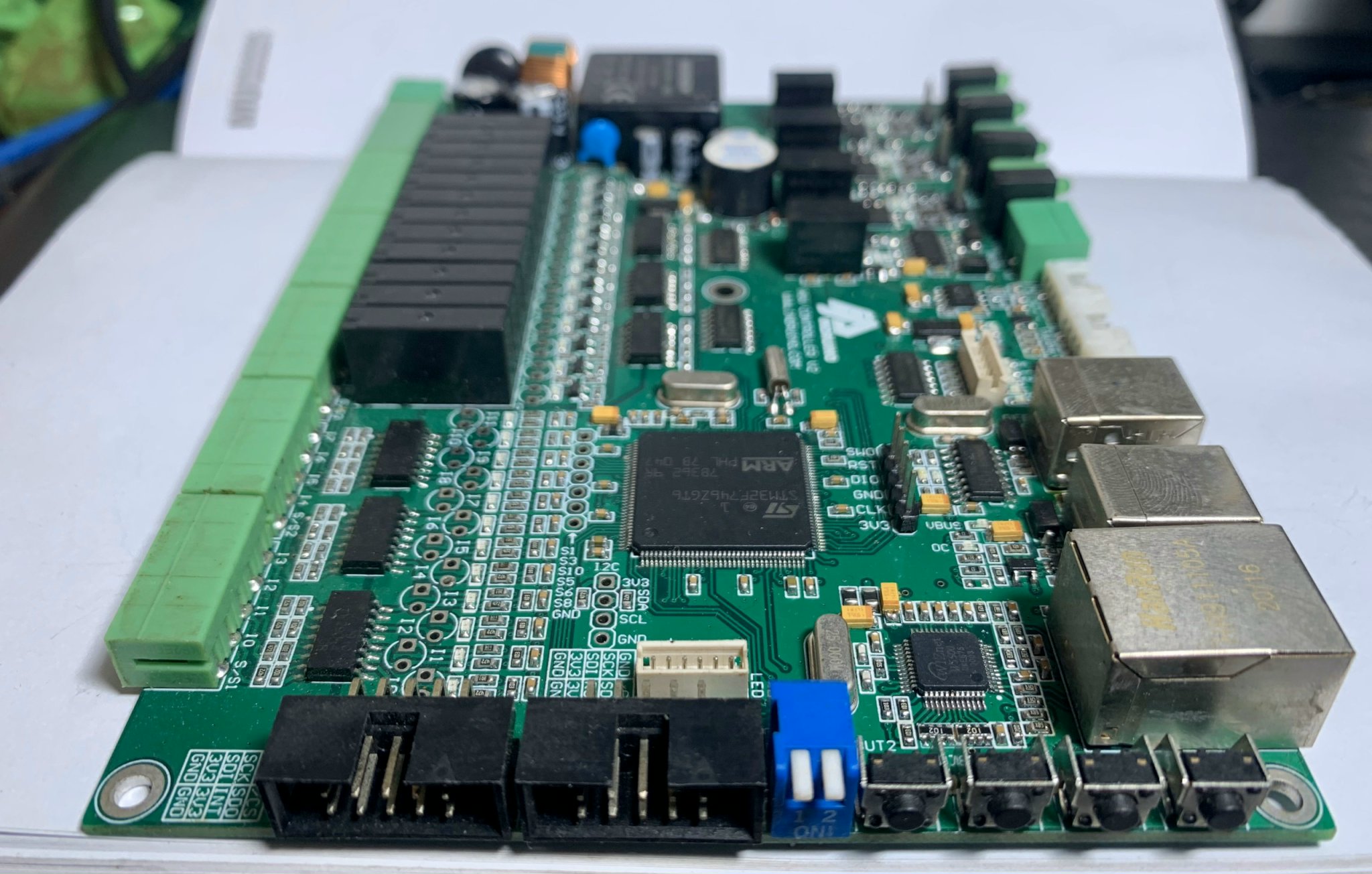

AGV_CONTROLLER_V2I0_08

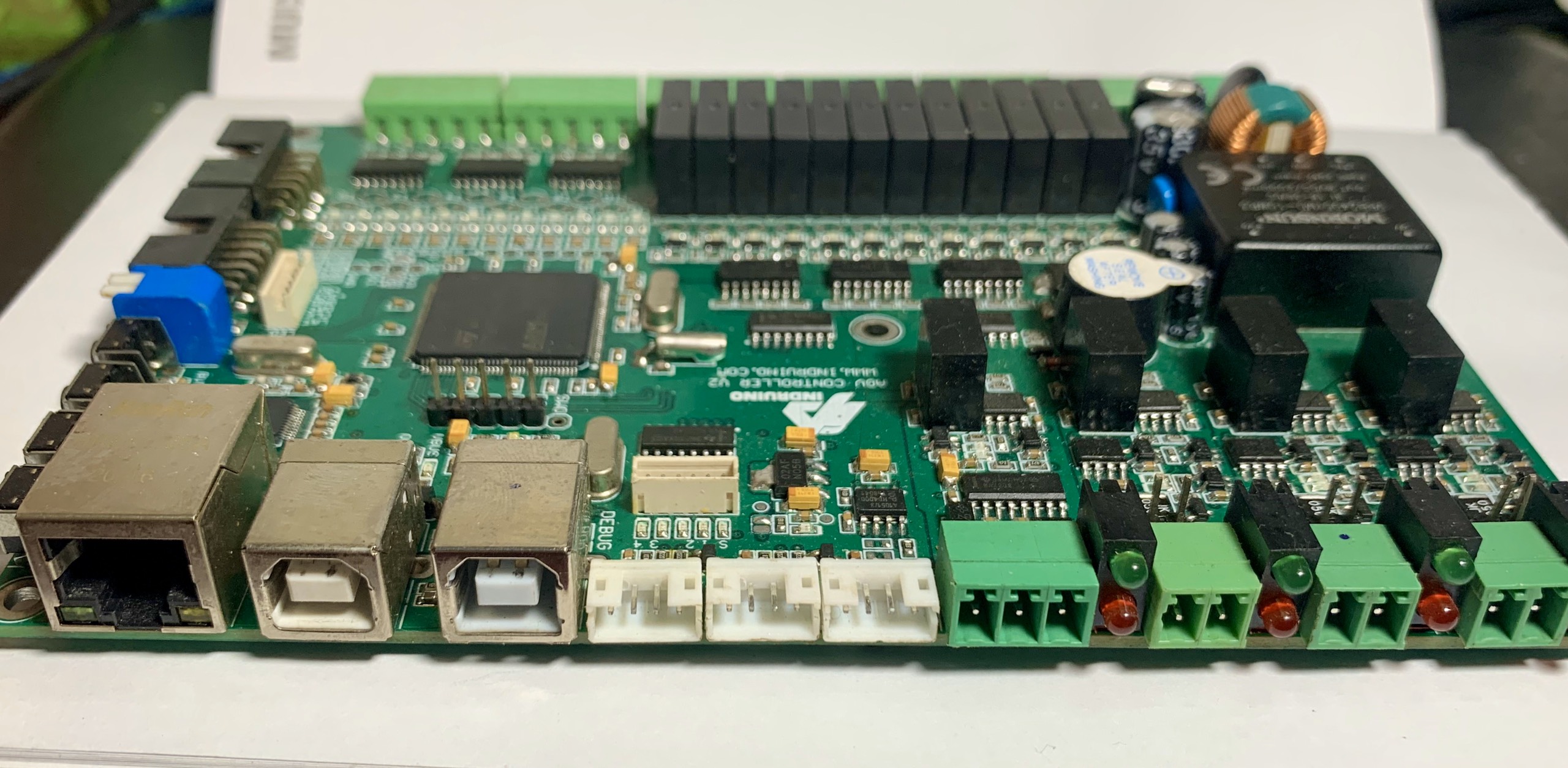

AGV_CONTROLLER_V2I0_09

AGV ROBOT MAIN CONTROLLER V2

Description

AGV ROBOT MAIN CONTROLLER V2

- This is the main controller board, which is special designed for AGV robot.

- This controller board support for all necessary peripherals that make the AGV robot could work properly.

- All inputs, output & interface signals are isolated from noise. This help AGV robot more stable and reliable while working in industrial enviroment .

TECHNICAL SPECIFICATIONS

- Supply voltage                : 18 to 36VDC

- Max current                    : 3A

- Max power                     : 15W

- CPU                               : 32 bits ARM Cortex M3

- Number of digital input    : 16

- Number of digital output  : 16

- Number of analog output : 2

- Interface                        : RS485, USB, SPI, UART

- Display type                   : TFT LCD + Touch screen

- Others                           : RFID reader, SD card, RTC

- Dimensions (LxWxH)       : 190x135x20 mm
