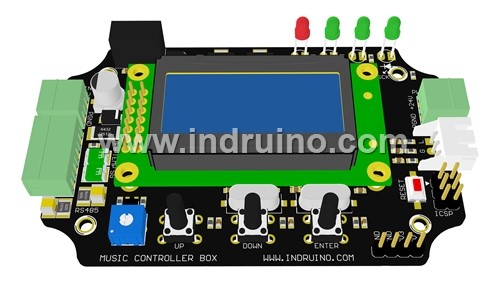

AUDIO_MODULE.3

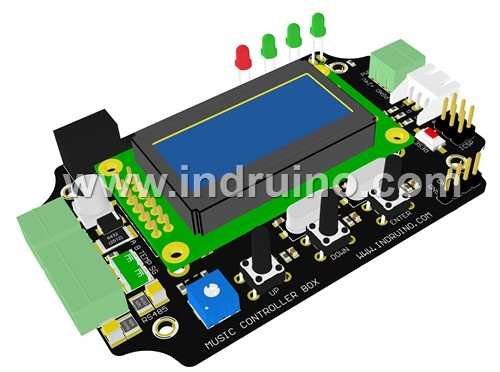

AUDIO_MODULE.2

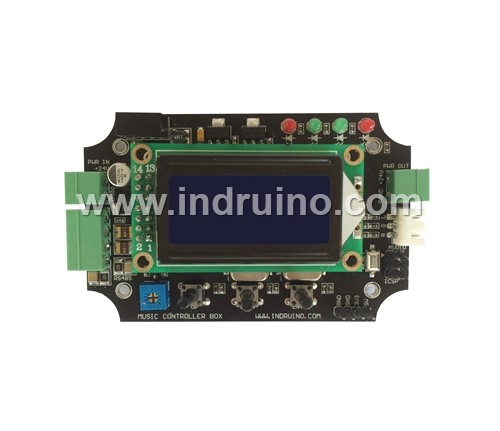

IMG_2597

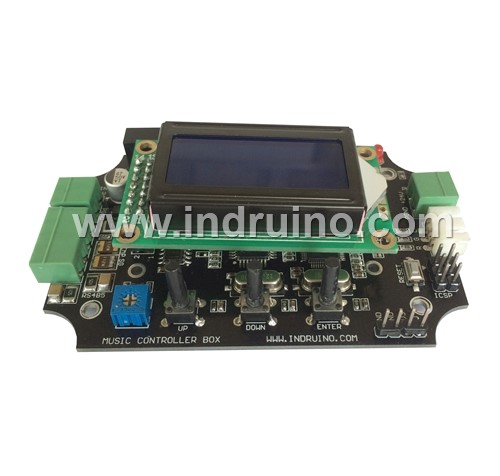

IMG_2599

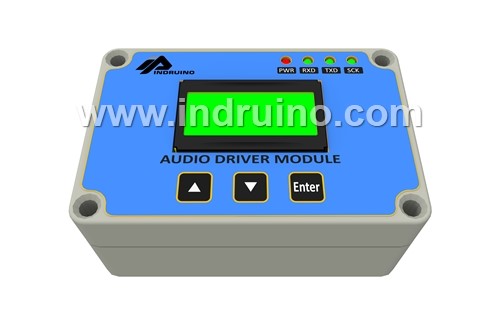

AGV_AUDIO_BOX.232

MP3 AUDIO MODULE FOR AGV

Description

MP3 AUDIO MODULE FOR AGV

- This module designed for playing MP3 audio files which are storaged in SD card. There is one character LCD 8x2 to display file name and file’s status. The control buttons to select which file to
be played.

- Module also has the RS485 interface socket, so the module can be controled remotely via specific protocol.

TECHNICAL SPECIFICATIONS

- Supply voltage            : 24 VDC

- Max current                 : 200 mA

- Max power                  : 1 W

- CPU                            : 8 bits microcontroller

- Interface                     : RS485

- SD card support         : Yes

- File type                     : MP3

- Output                        : Analog audio signal

- Display                       : Character LCD 8x2

- Others                        : LED indicator, setting buttons

- Dimensions (LxWxH) : 90 x 57 x 30 mm
