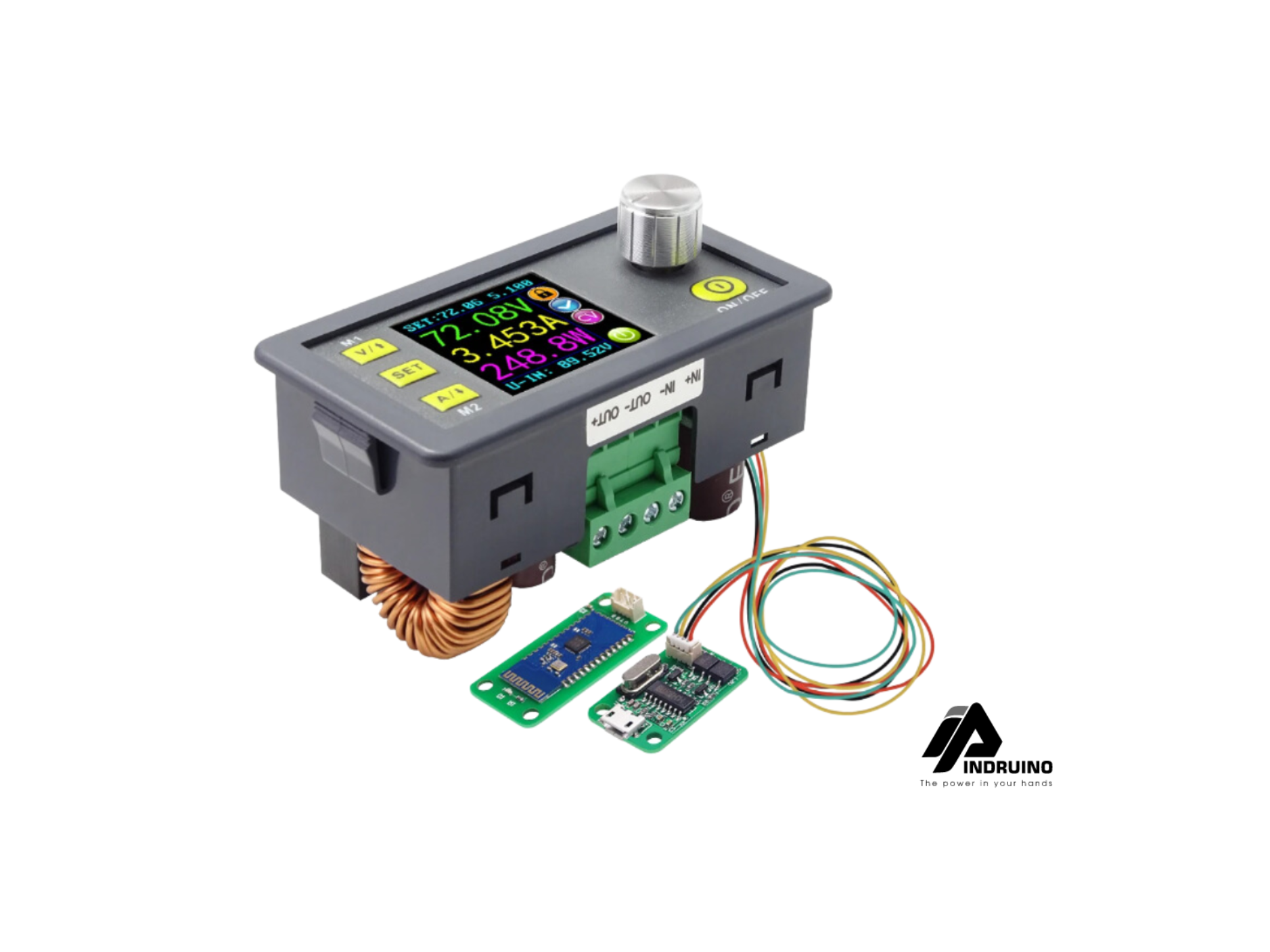

DPS8005 - USB - DIGITAL CONTROL CONSTANT VOLTAGE CONSTANT CURRENT POWER SUPPLY
Description
- This constant voltage and constant current programmable control power supply module combines analog integration and digital control functions into one.
- This module has a power-down stored function that it can store 10 groups of preset values and extract 2 groups of stored values.

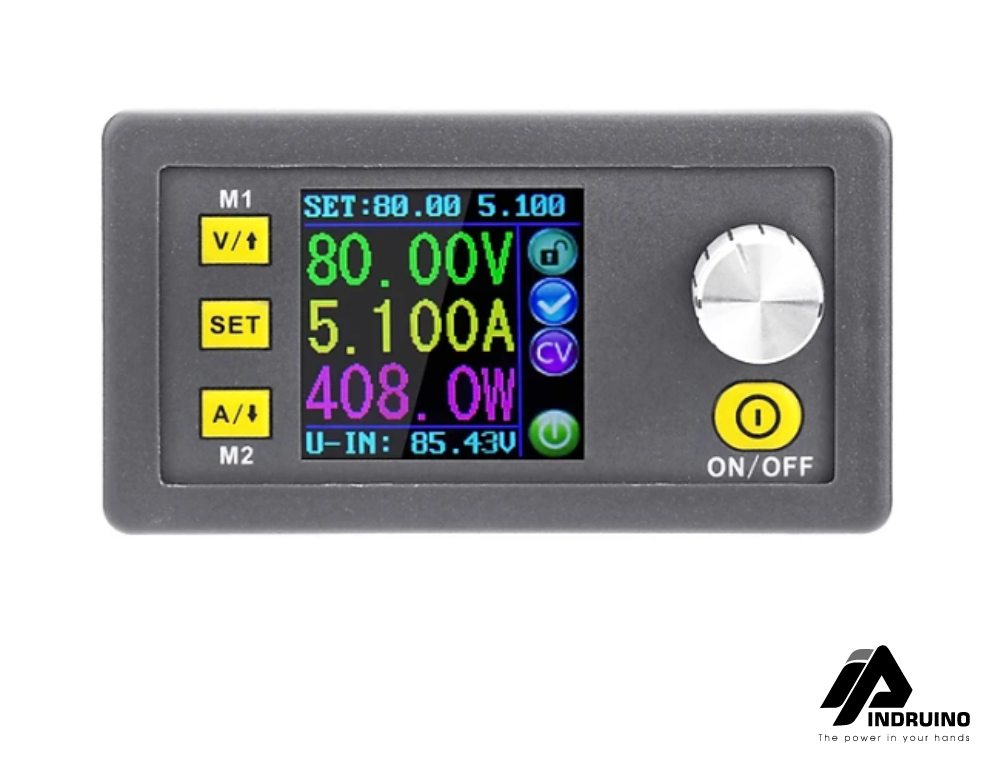

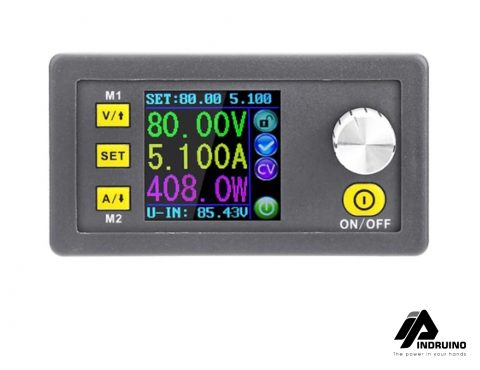

- With an LCD display, the user can view the preset voltage/current, output voltage/current, output power, input voltage, etc.
- This product, with its small size, advanced functions, good visual effect, high operability, and high precision, can not only be used independently but also inset into the device for a wide application range.
NOTE:
- When you get the product for the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.
- You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.
- If you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uf, C is over 2200 uf.
- When you get the product for the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.
- You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.
- If you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uf, C is over 2200 uf.
Techical Specification :
- Input Voltage: DC10-90V
- Output Voltage: 0-80.00V
- Output Current: 0-5.100A
- Output Power: 0-408W
- Voltage Resolution: 0.01V
- Current Resolution: 0.001A
- Output Voltage: 0-80.00V
- Output Current: 0-5.100A
- Output Power: 0-408W
- Voltage Resolution: 0.01V
- Current Resolution: 0.001A
- Made in China
- Distributed by Indruino Technology Solutions Co., Ltd
