RS232 ISOLATION/RTC/SDCARD /ENTHERNET Shield For Arduino Mega2560

RS232 ISOLATION/RTC/SDCARD /ENTHERNET Shield For Arduino Mega2560

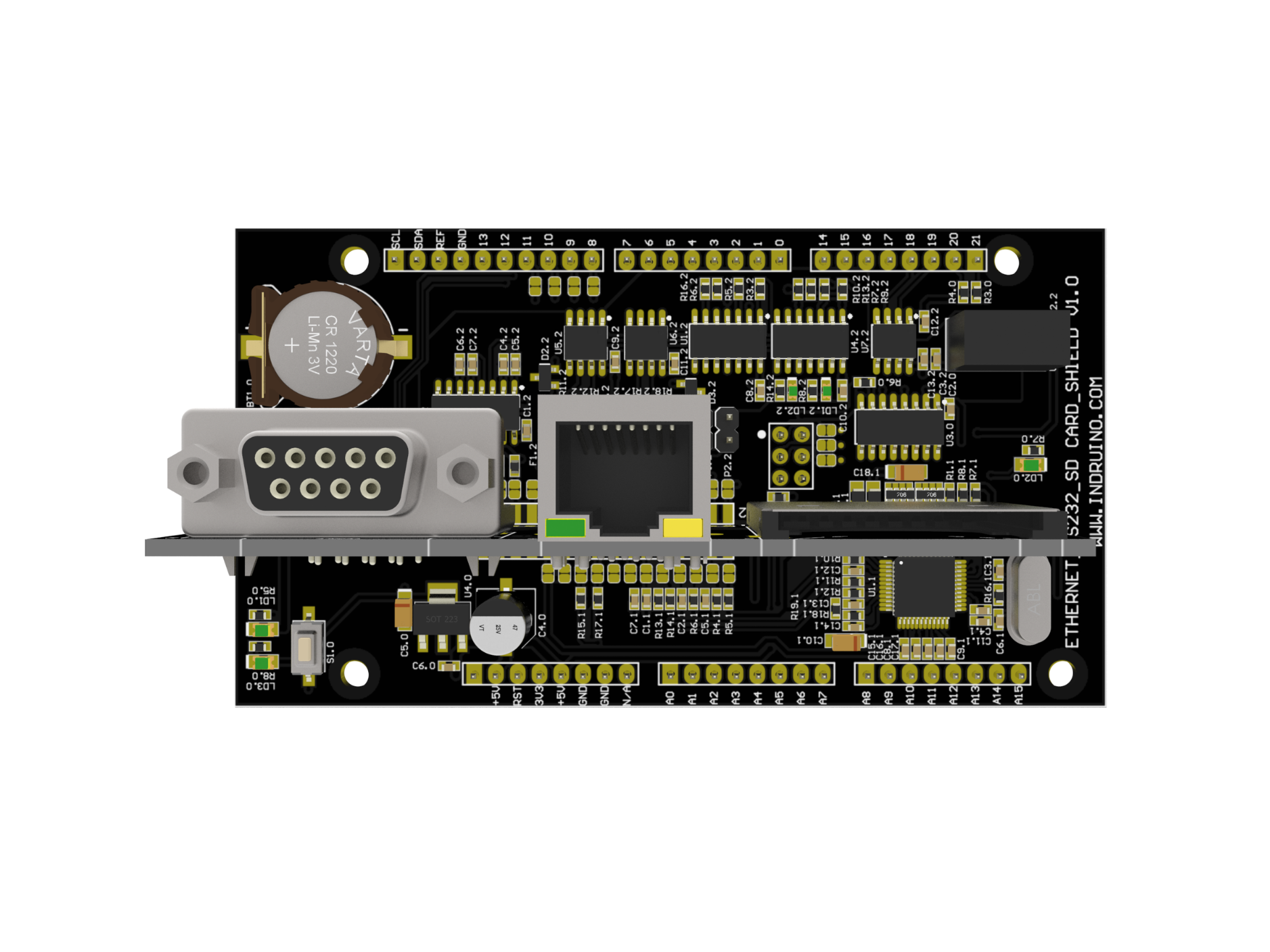

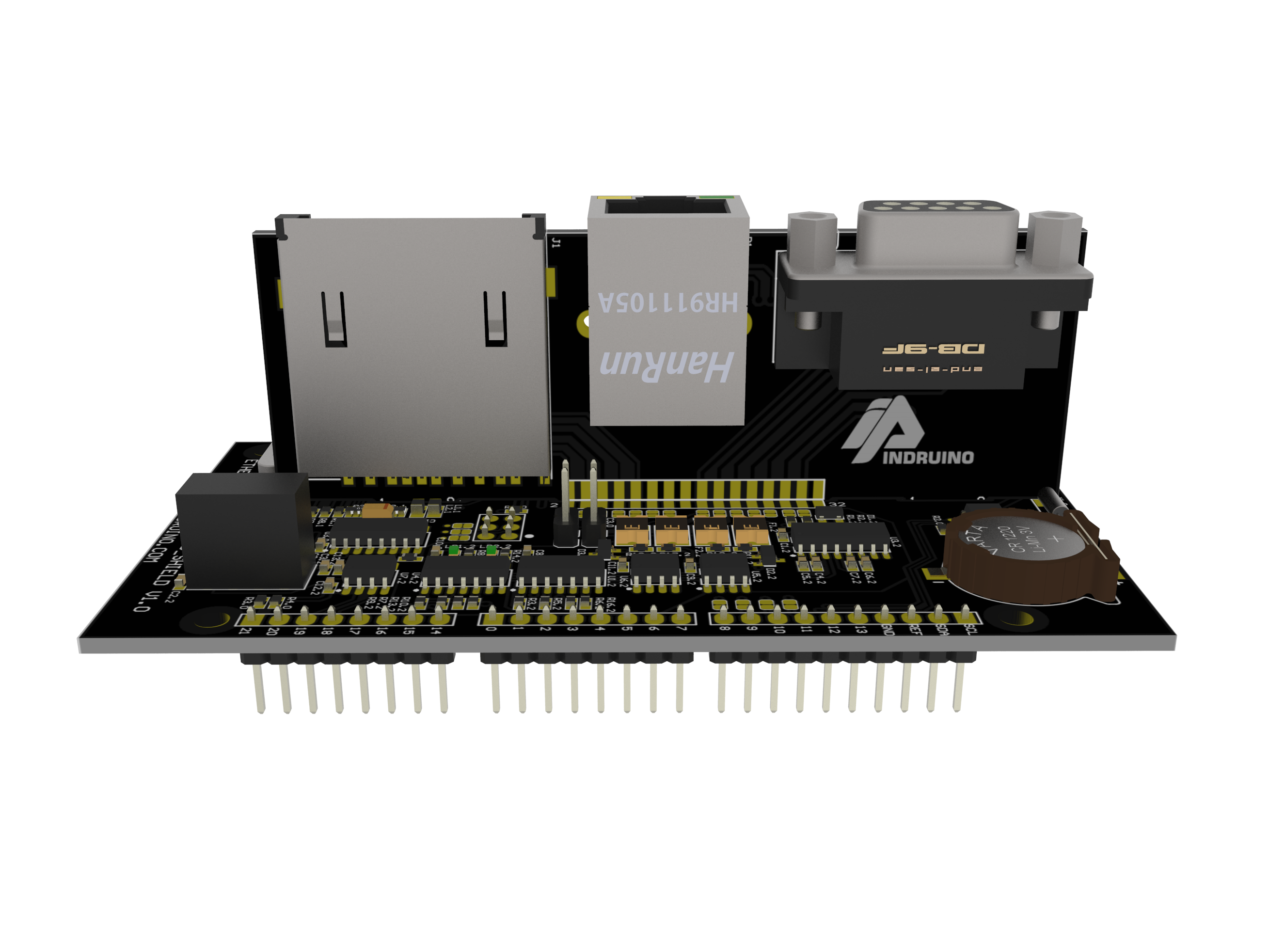

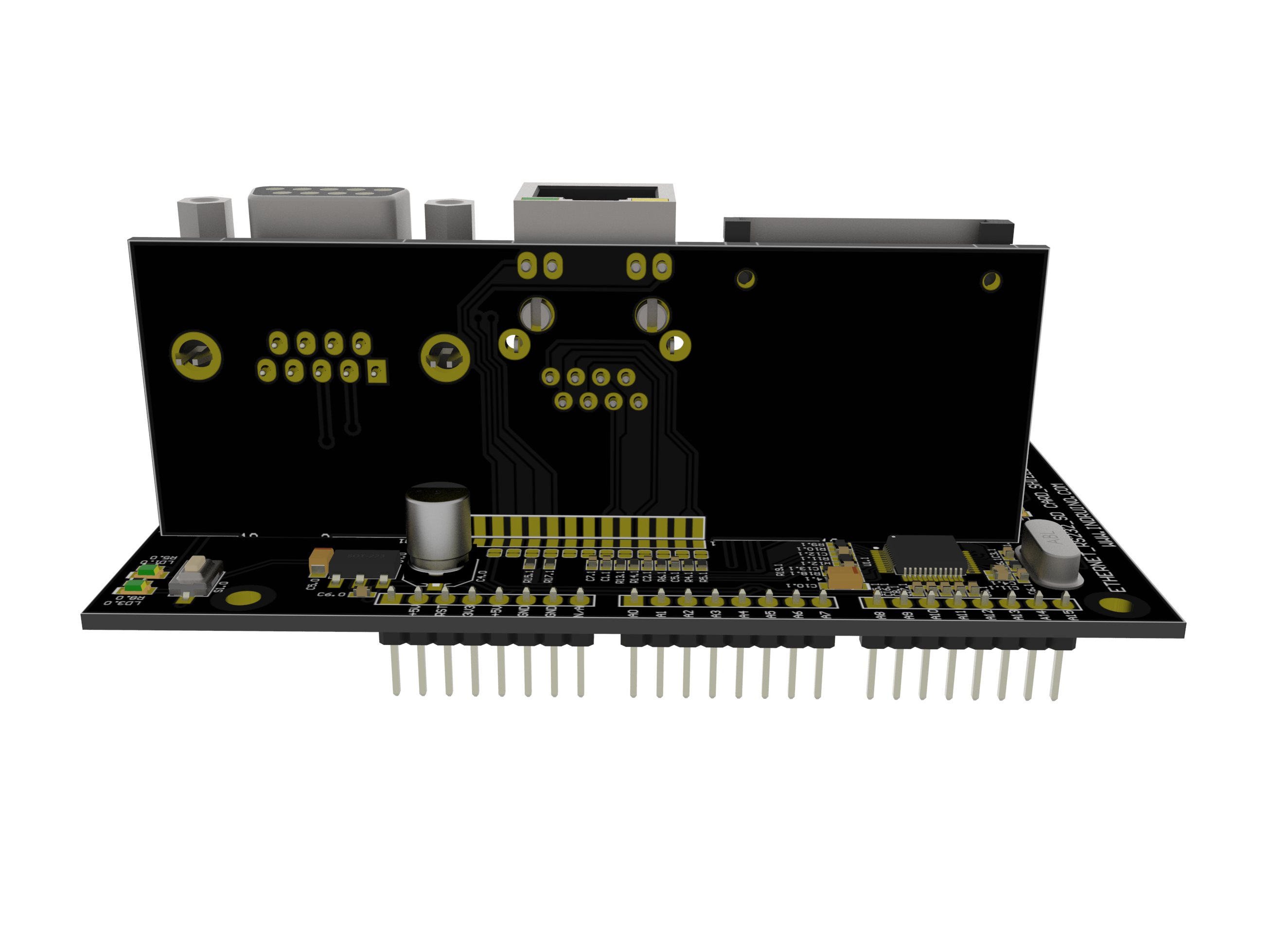

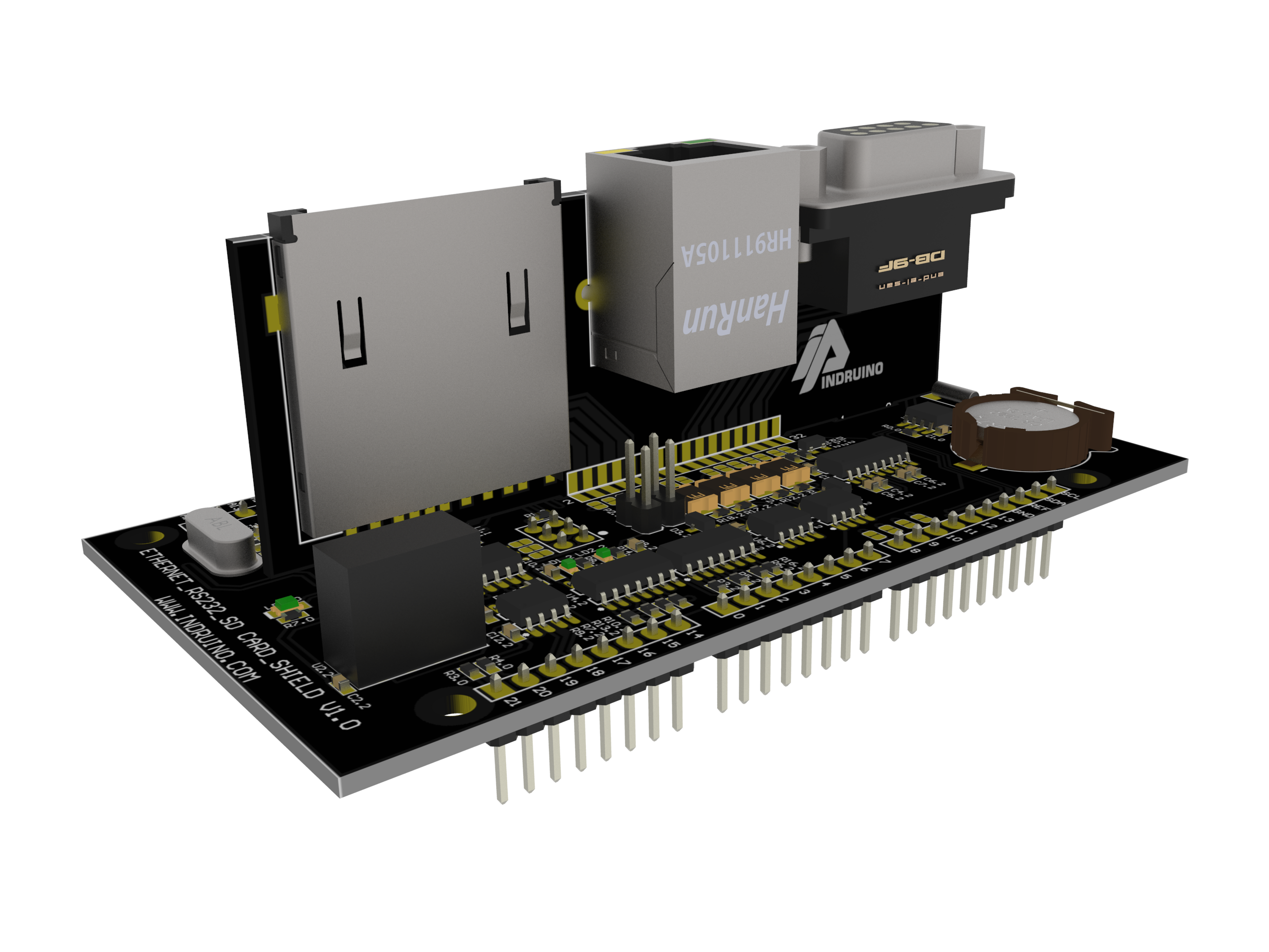

This is a shield for Arduino Mega2560 and is intergrated with micro SD, Real Time Clock, UART TTL to Isolated RS232, Ethernet TCP/IP

Technical Specifications :

- Power supply : 5V
- Interface: UART TTL to Isolated RS232, Ethernet TCP/IP
- RS232 Duplex : Full
- RS232 Data rate : 1.0Mbps
- RS232 Voltage isolation :2500Vrms
- Dimensions (L x W) : 101.52 x 53.3 mm
- Weight : 80 g
- Other features : Arduino Mega2560 compatible shield; Intergrated RTC, SD card socket; Status LEDs.

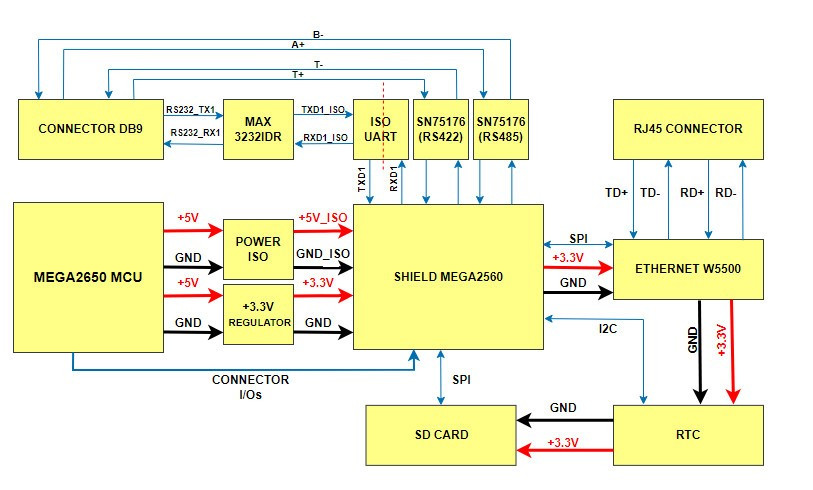

Block Diagram :

Download: https://drive.google.com/file/d/1u4fRTuePo3r9umoB57hhldzAUtEftVLg/view?usp=sharing
