SPI To RS232 CONVERTER ISOLATED/RTC/SDCARD Shield For Arduino Uno

SPI To RS232 CONVERTER ISOLATED/RTC/SDCARD Shield For Arduino Uno

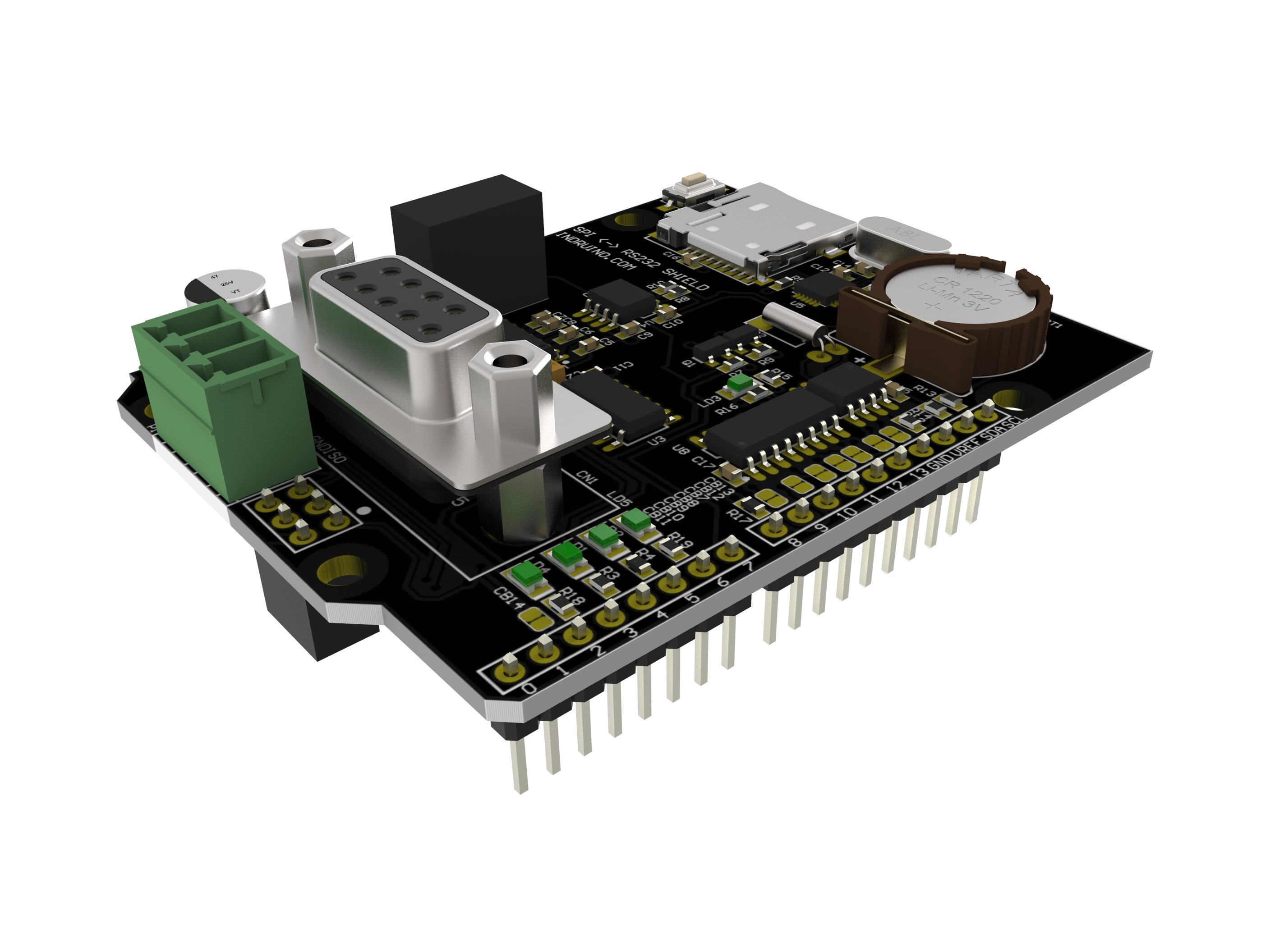

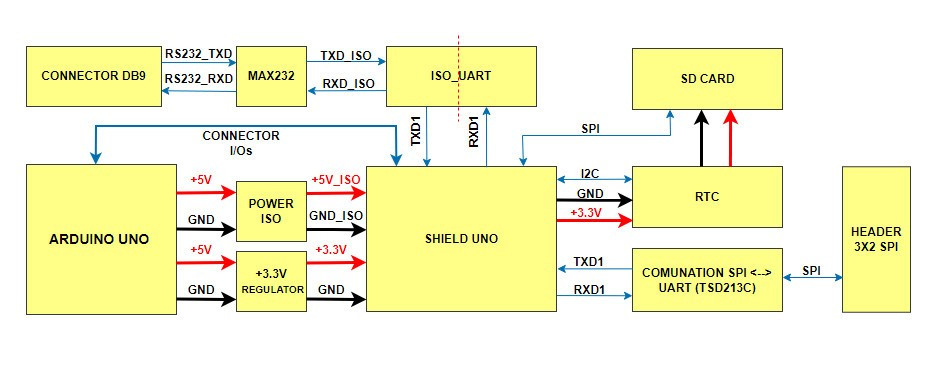

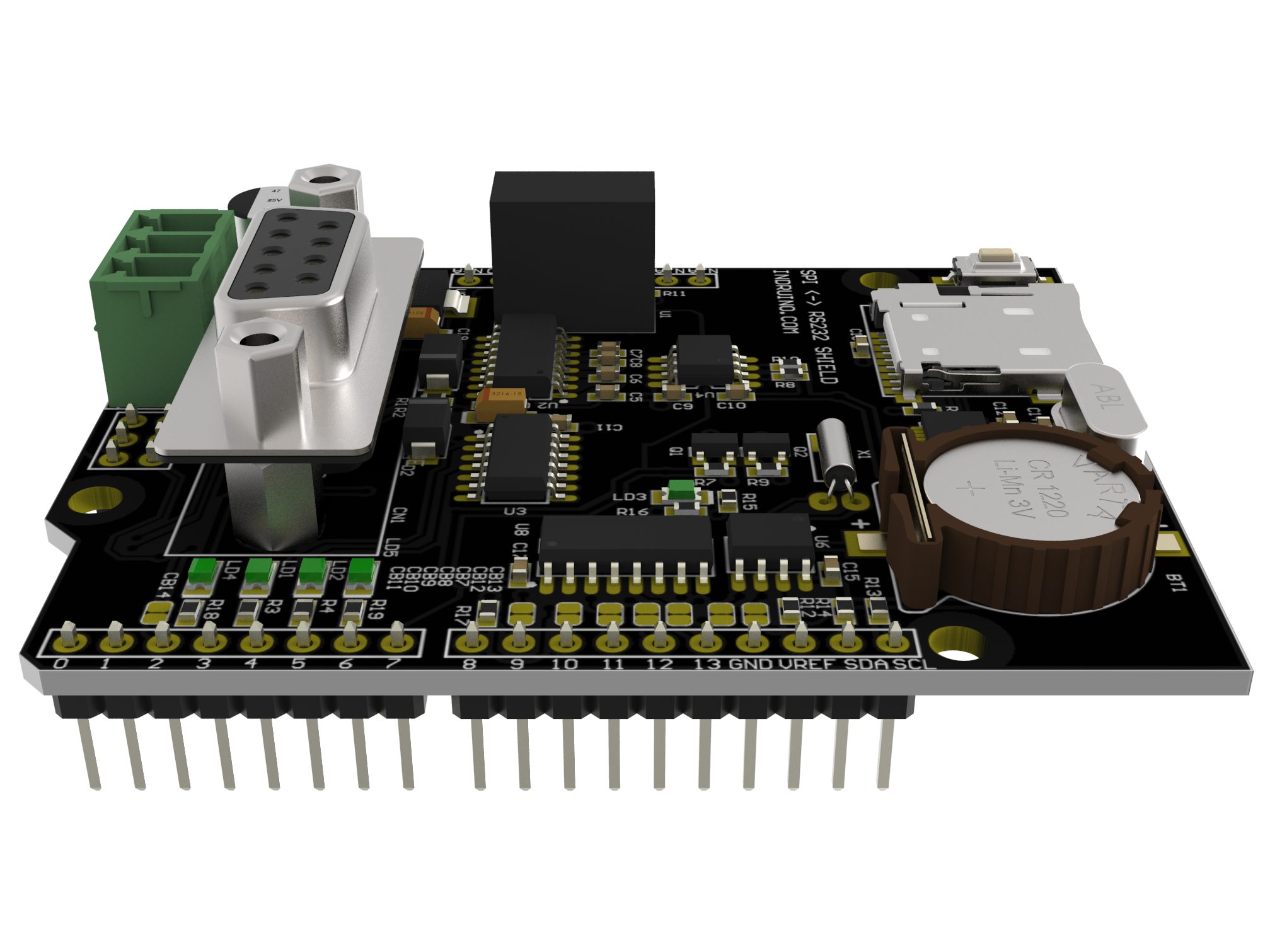

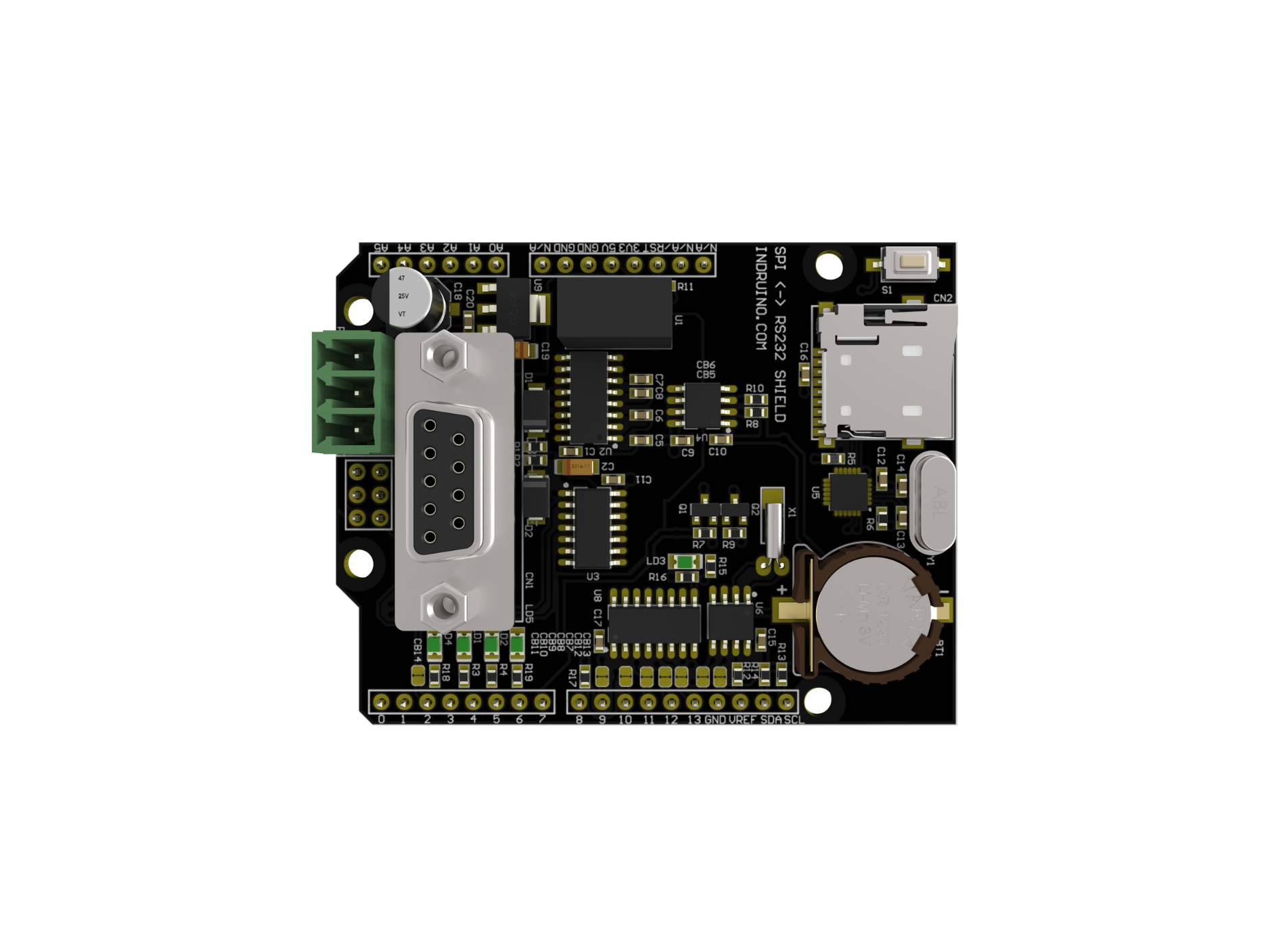

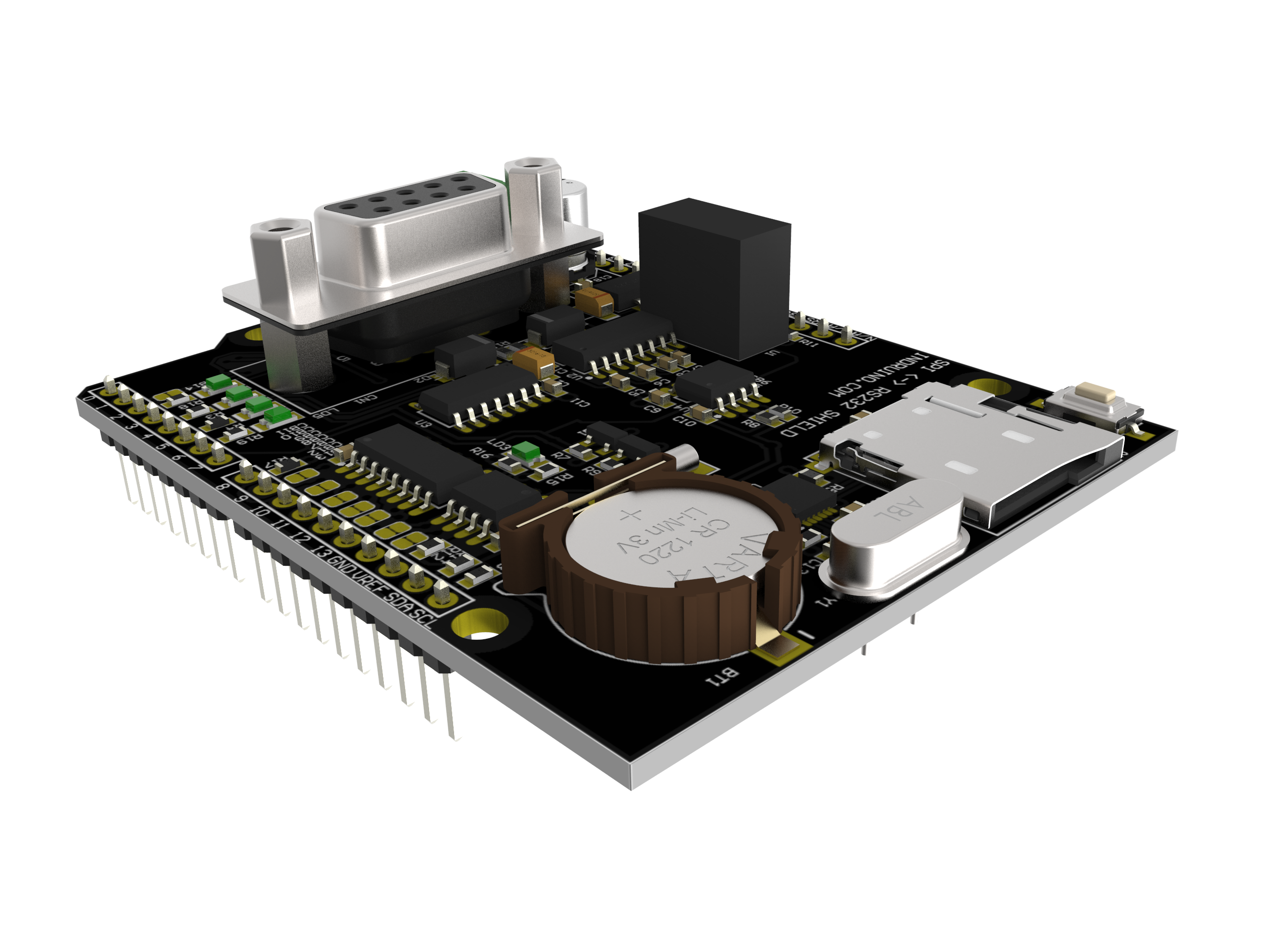

This is a shield for Arduino Uno and is intergrated with micro SD, Real Time Clock and SPI to isolated RS232

TECHNICAL SPECIFICATIONS

- Power supply : 5V
- Interface: SPI to Isolated RS232
- Number of channel: 1 channels
- Duplex : Full
- Data rate : 1.0Mbps
- Voltage isolation :2500Vrms
- Dimensions (L x W) : 68.6 x 53.4 mm
- Weight : 50 g
- Other features : Arduino Uno compatible shield; Intergrated RTC, Micro SD card socket; Status LEDs.
