ENTHERNET W5100 MINI

ENTHERNET W5100 MINI

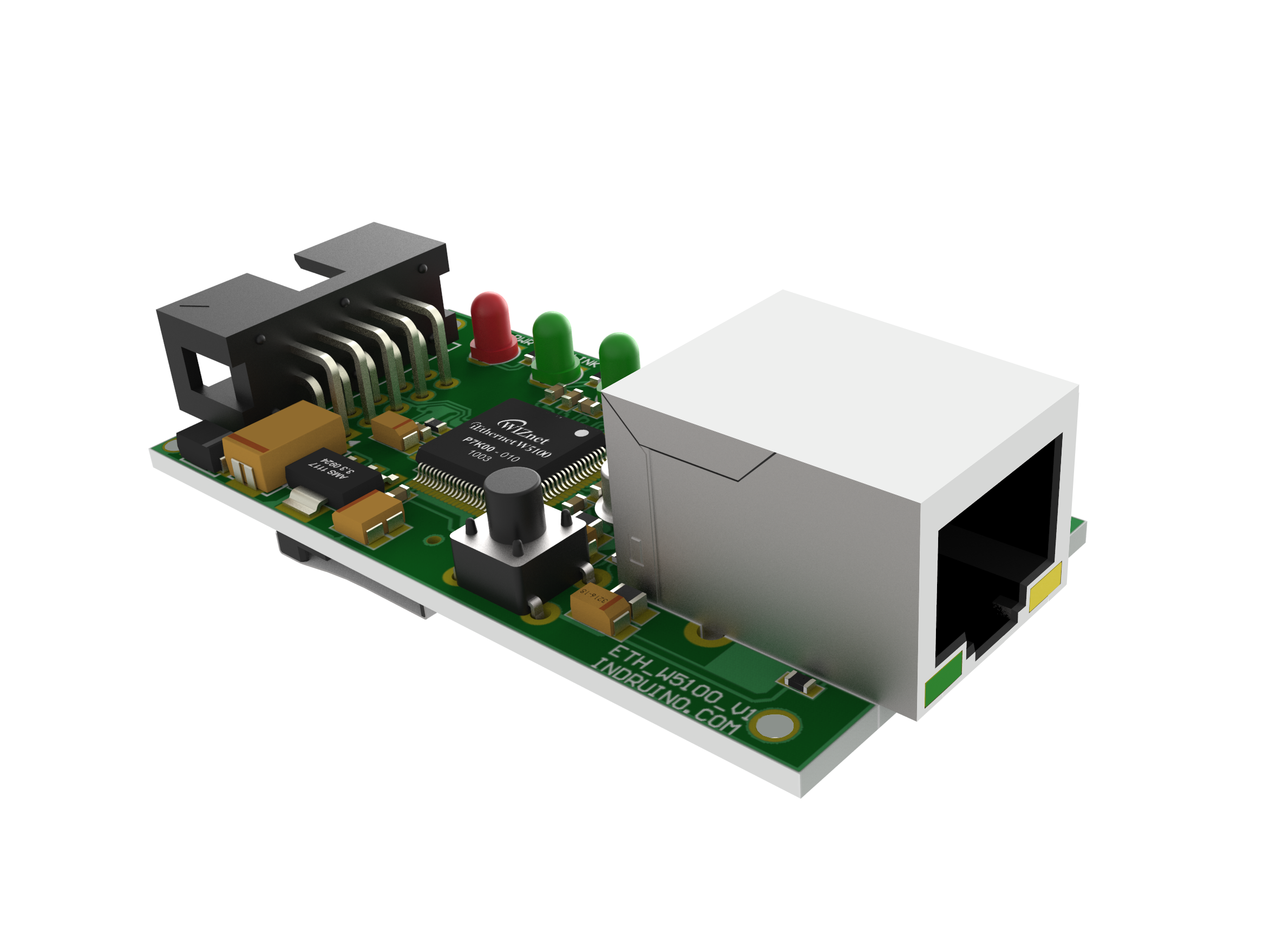

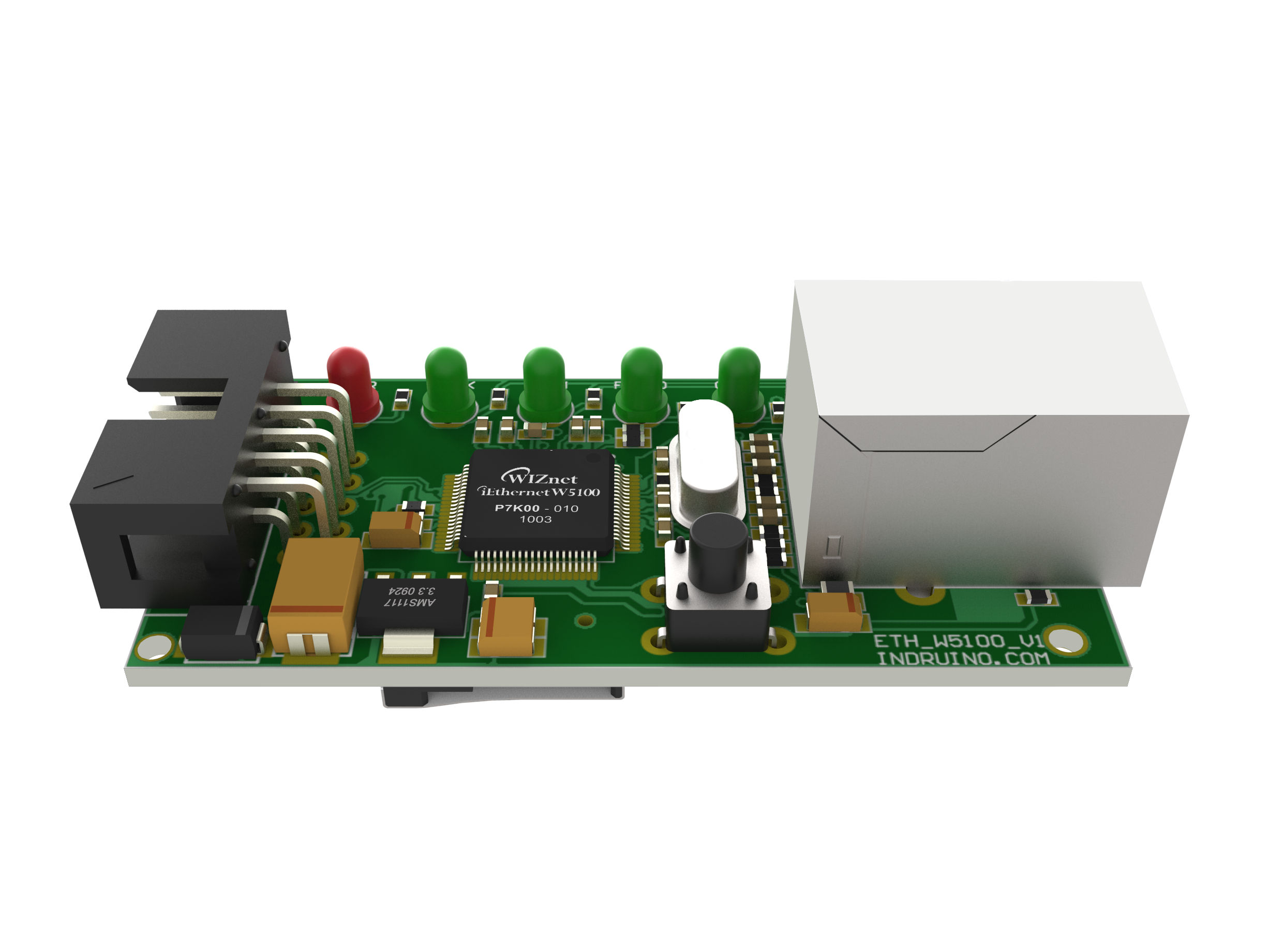

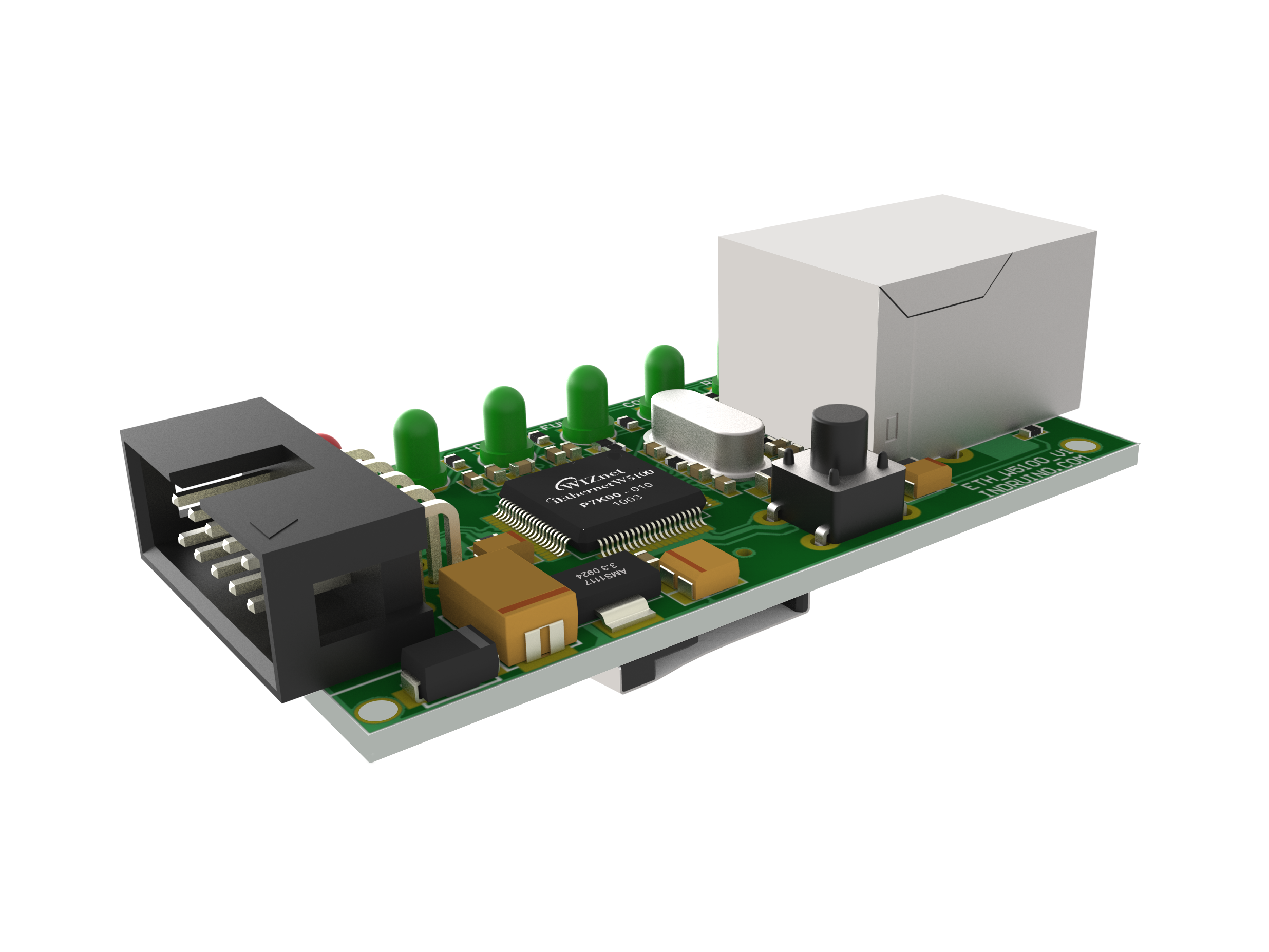

This is a W5100 Ethernet Network mini board, it based on the the WIZnet W5100 Embedded TCP/IP IC. This chip includes all the necessary support for network communication with a wide range of built-in hardware protocol support.

Key features:

- Converting TCP/IP to SPI and vice versa.

- ESD protection.

- RJ45 connector and IDC 3x2

- Status led indicators.

- Small size, easy to intergrated into the system.

Technical Specifications :

- Power supply: 5 VDC

- Max current: 500 mA

- Interface: TCP/IP, UART

- Max baudrate: 115200 bps

- Duplex: Full/ Half

- Power,  status leds on board

- Standard SPI communication bus for connection to most mcu

- Standard RJ-45 socket with in-built isolation transformer

- Dimension: 72x51x20 mm

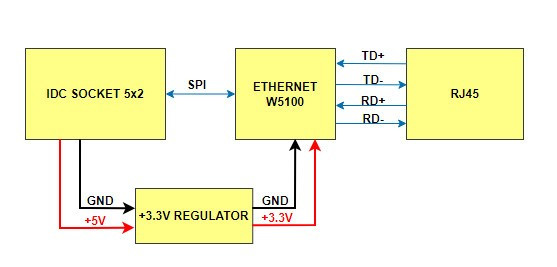

Block Diagram :

Download: https://drive.google.com/file/d/1sjwqnPoZ_PzYPNtXGVNomE2SH7yoCSaU/view?usp=sharing
