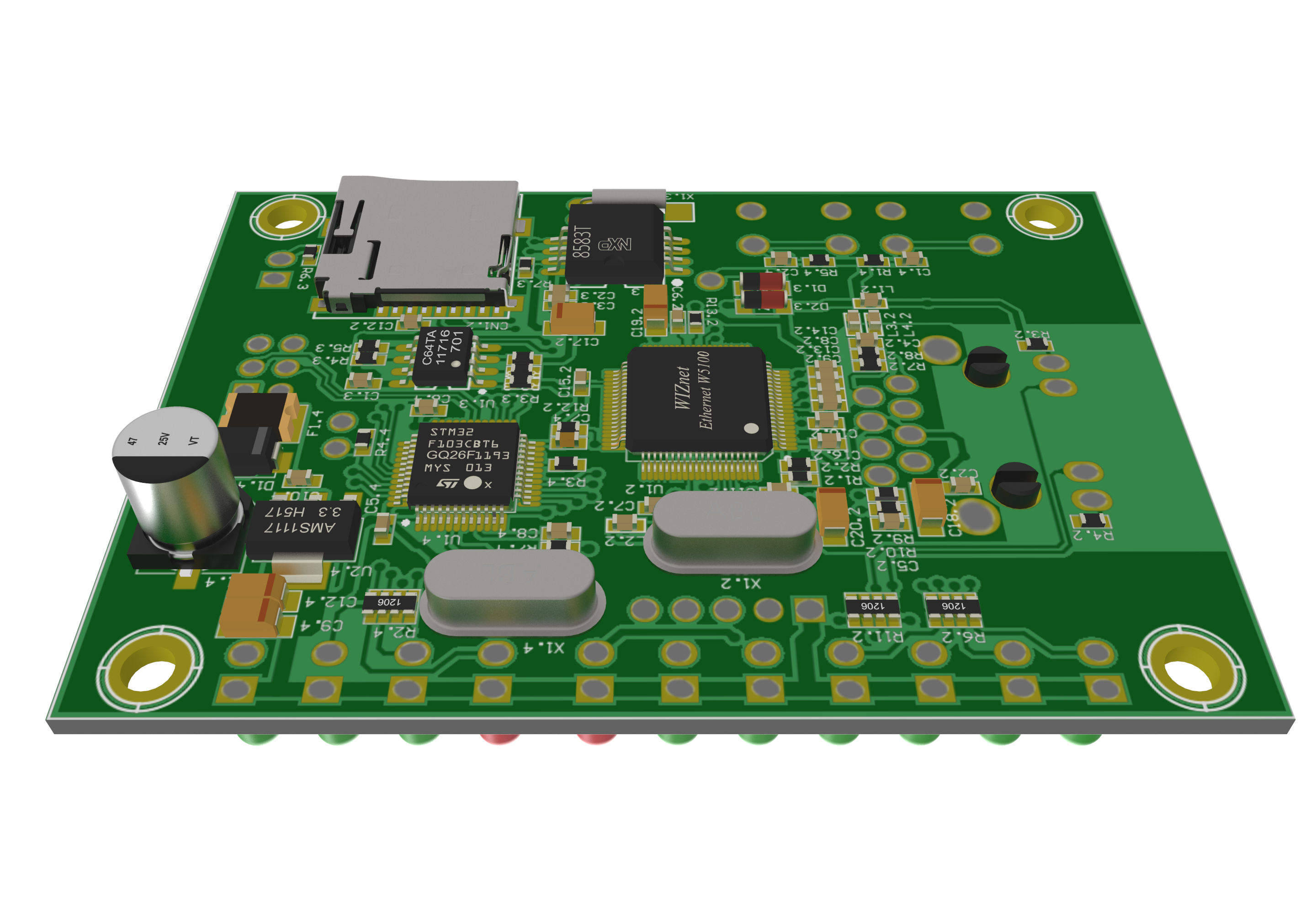

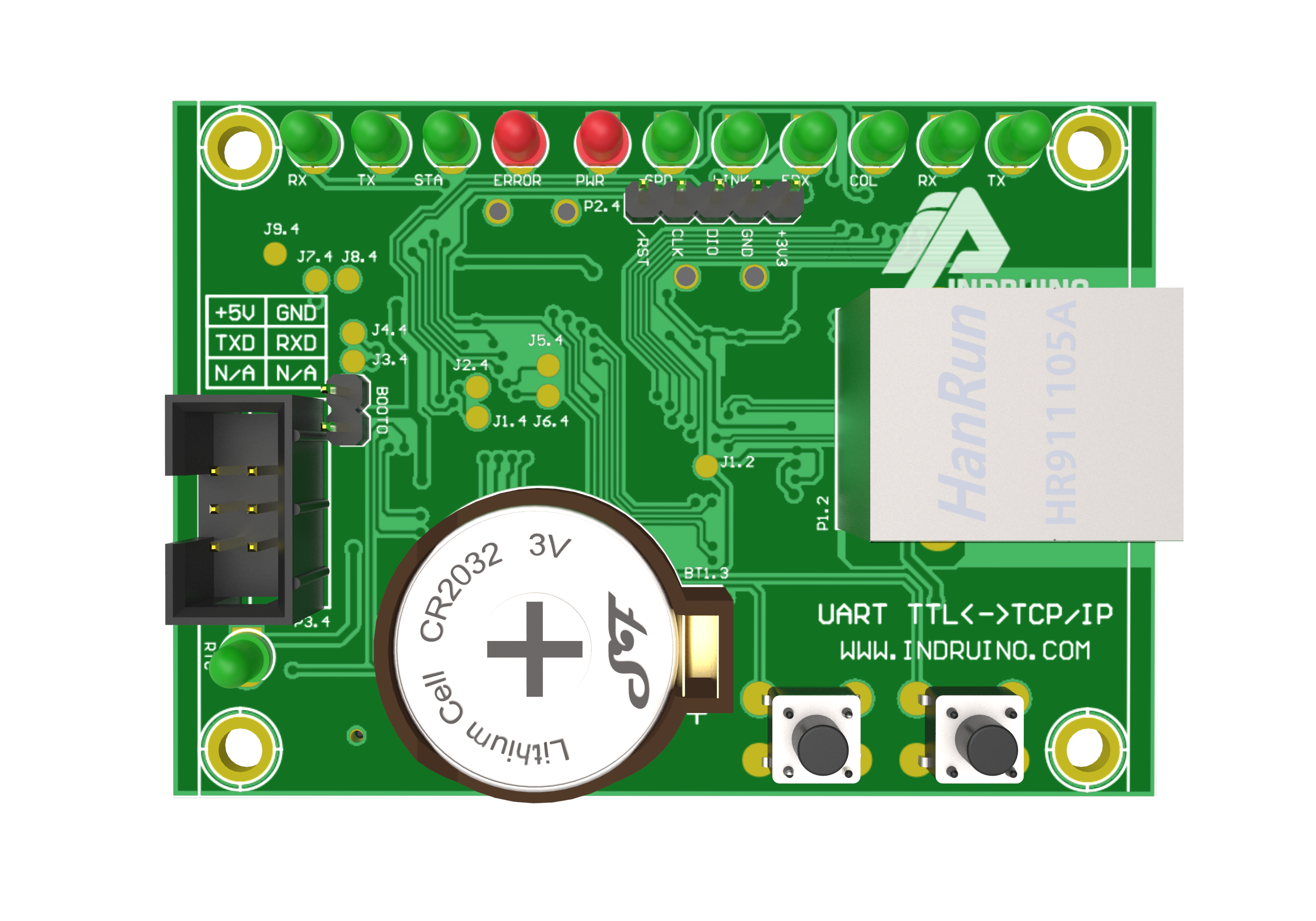

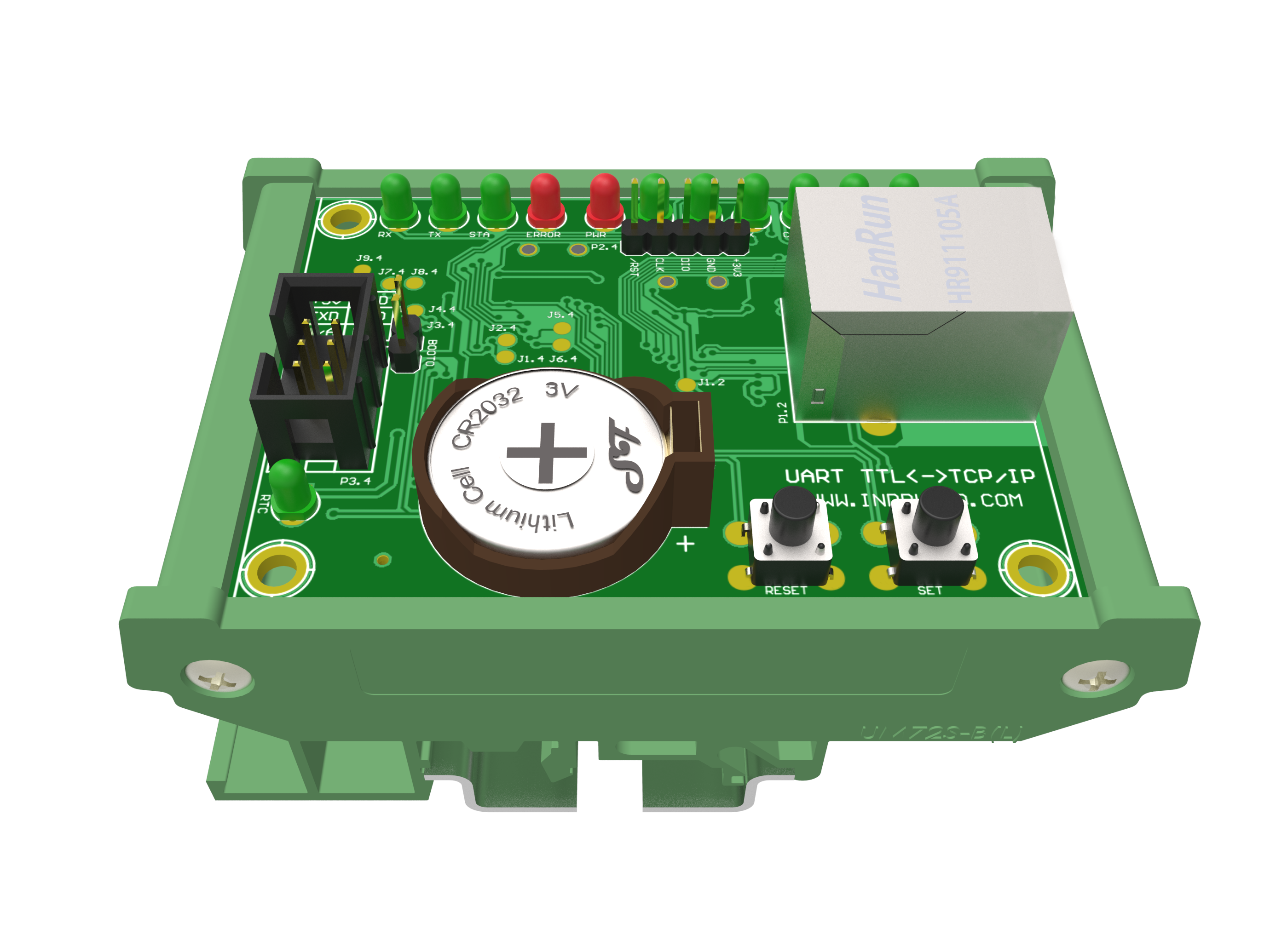

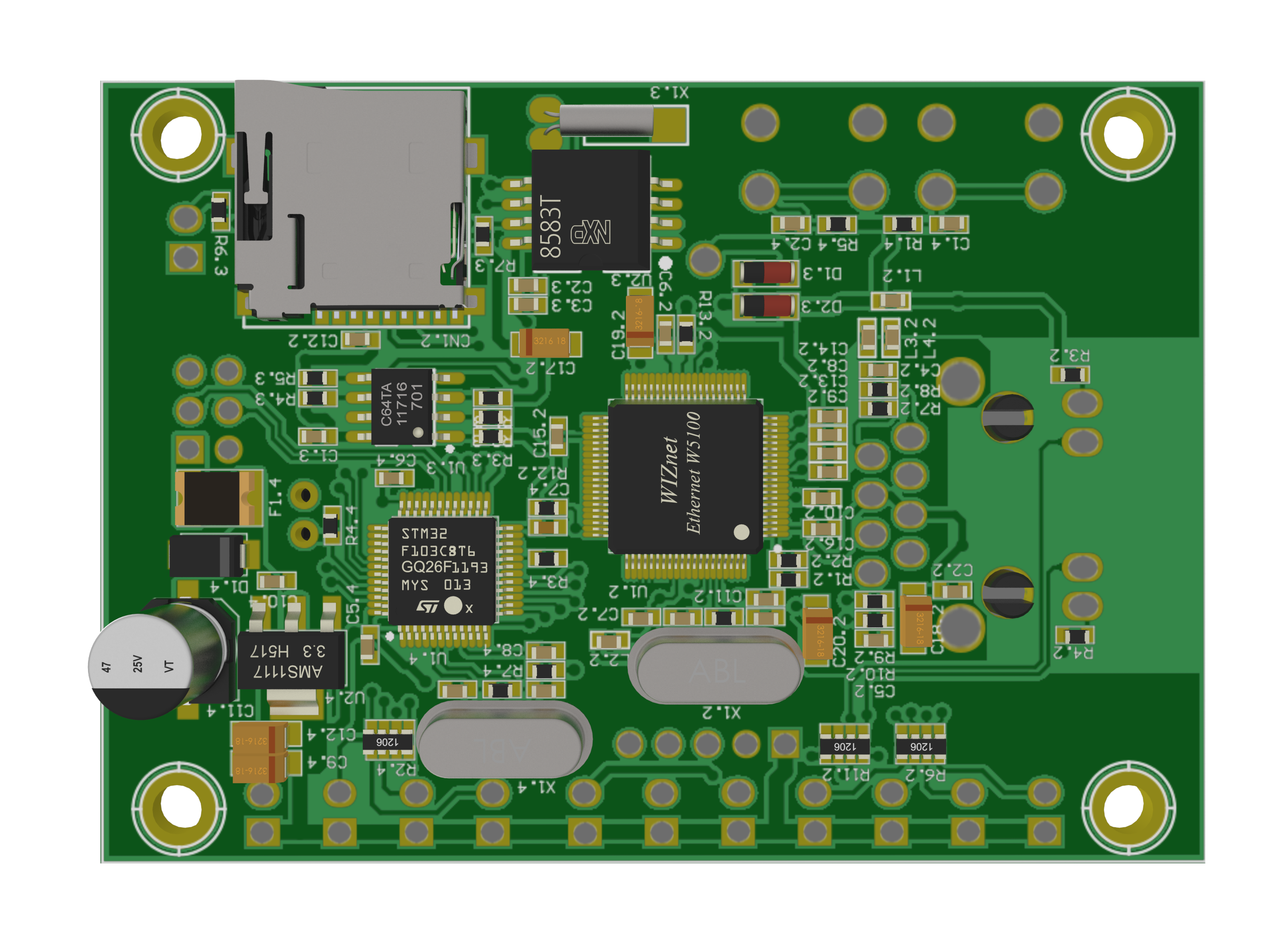

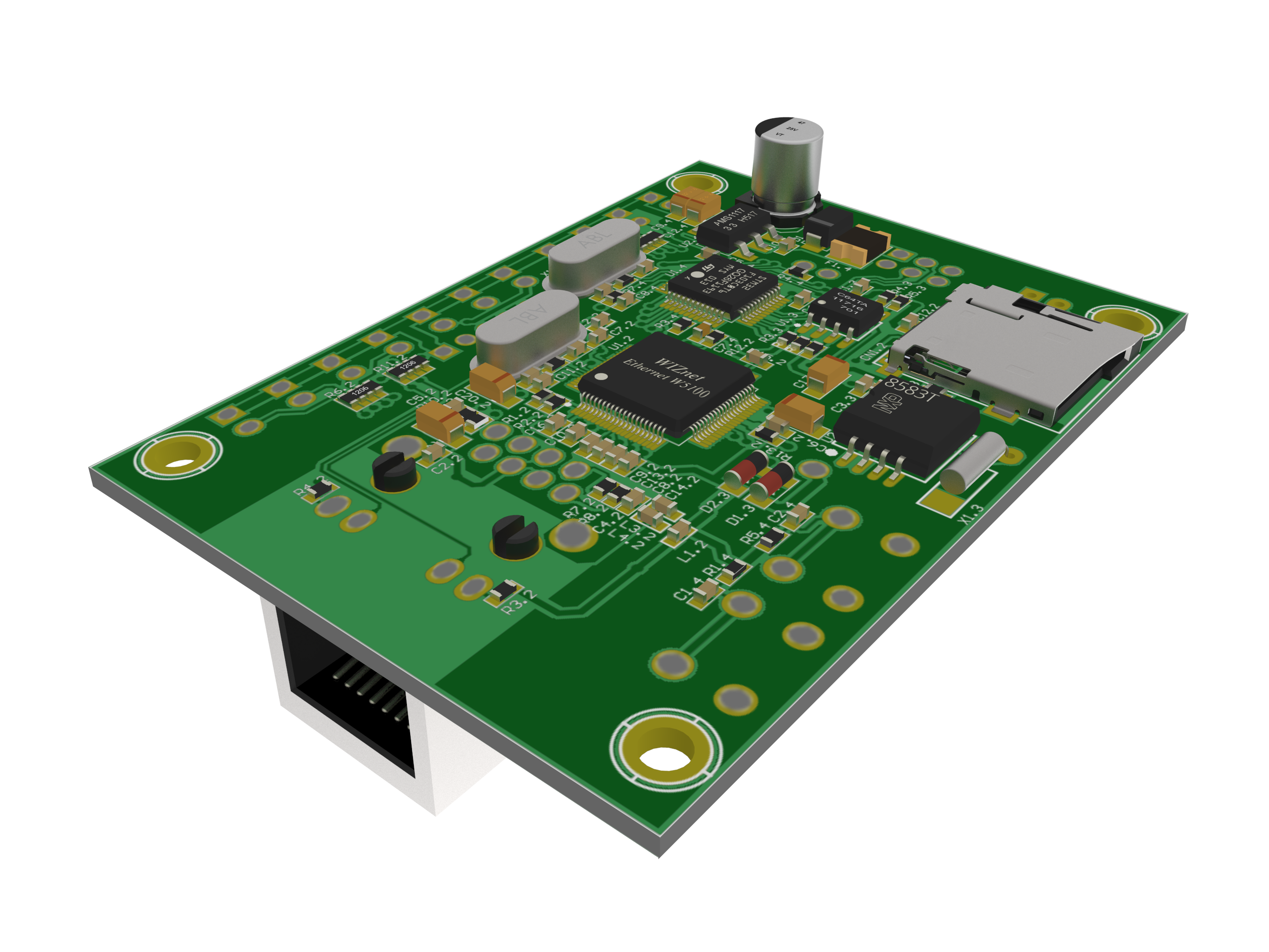

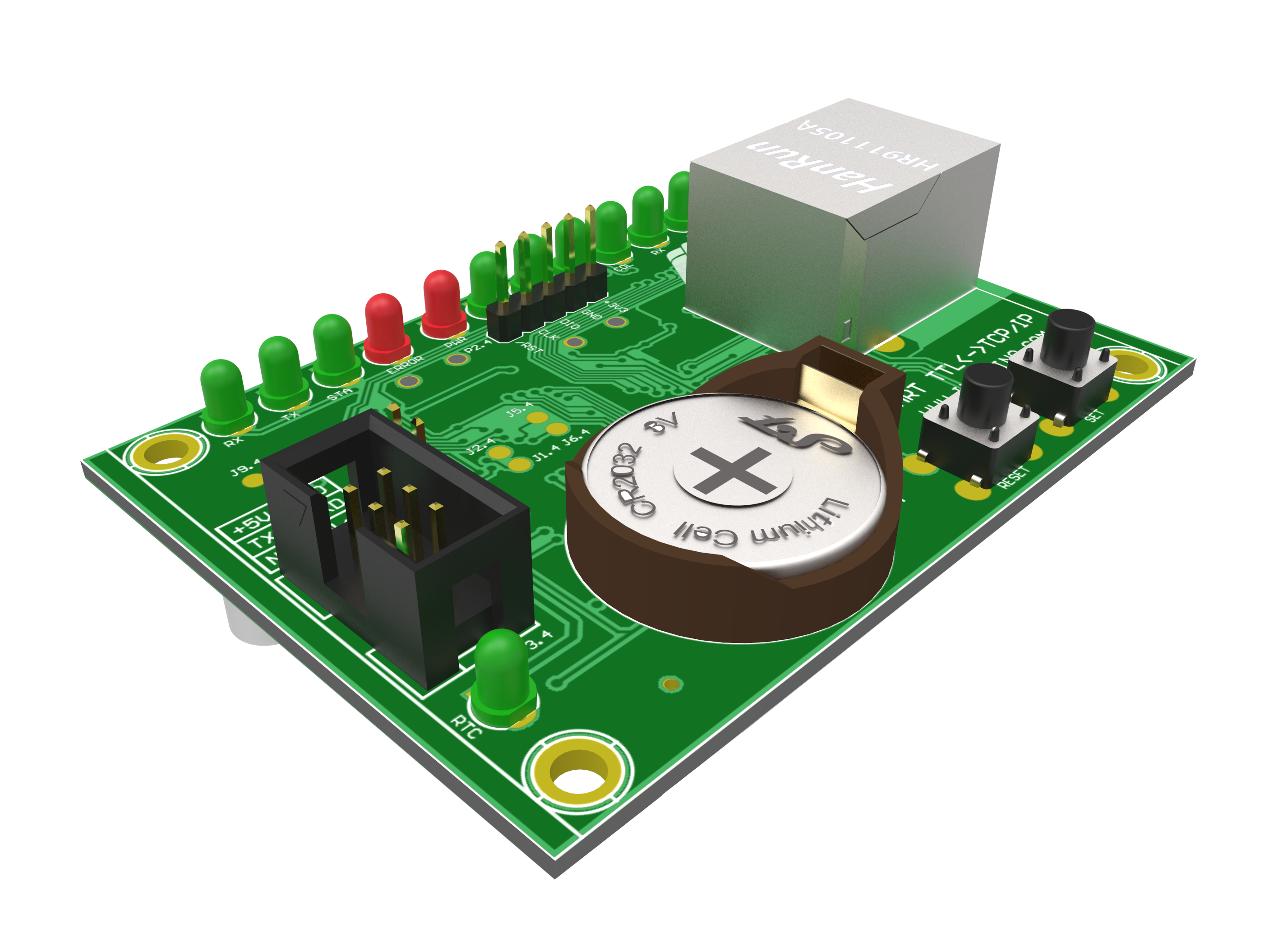

This is a serial TTL to Ethernet module, used for data transparent transmission, converting TCP or UDP socket data to serial UART.

Key features:

- TCP/IP to UART TTL converting using W5100 ethernet chip and ARM Cortex M3 STM32F103.

- Supports SD card, FRAM and RTC chip.

- Config parameters via webserver.

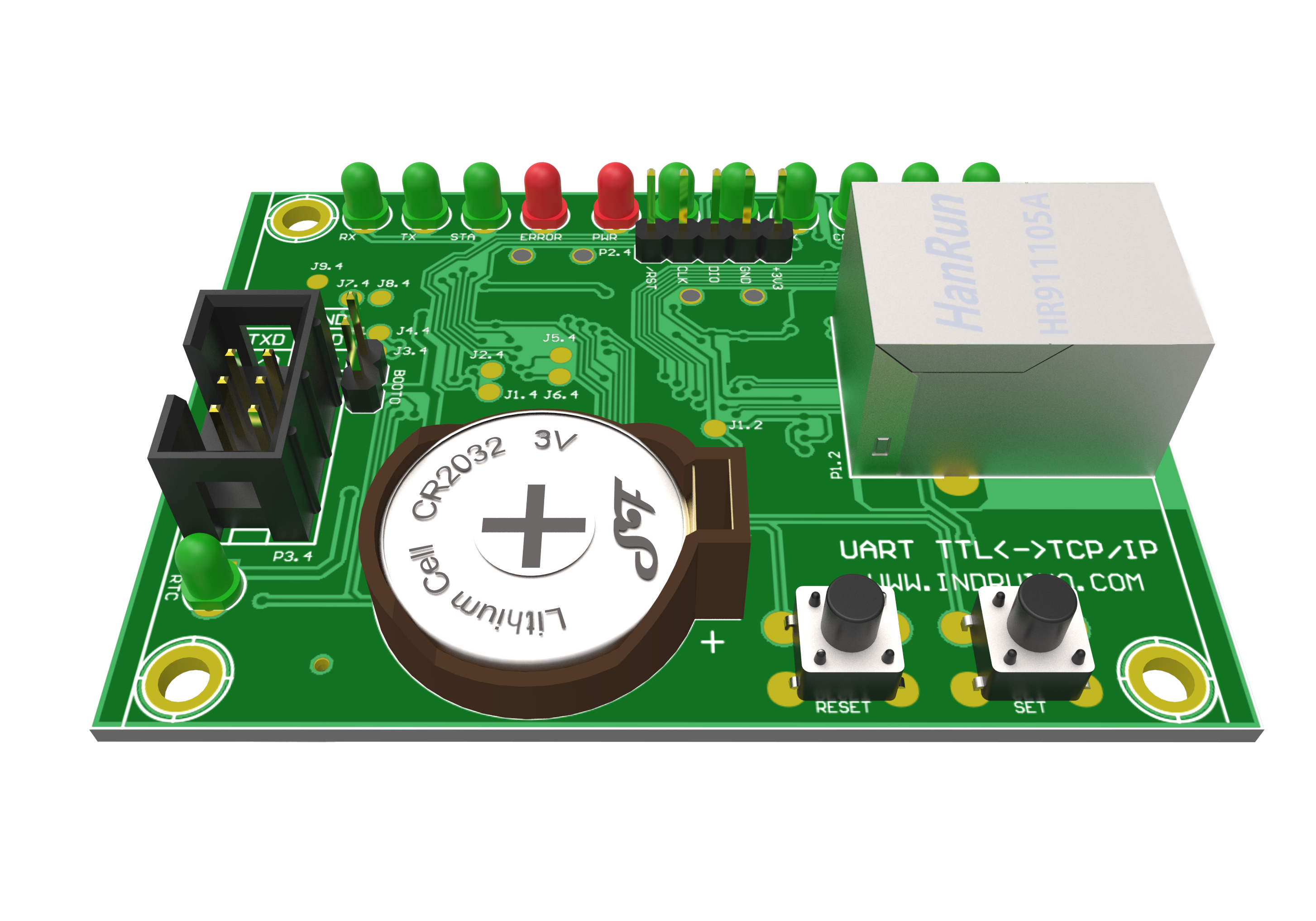

- Power supply & status led indicators.

- Having Reset & Default buttons.

- Small size, easy to intergrated into the system.

Technical Specifications :

- Power supply: 5 VDC

- Max current: 500 mA

- Interface: TCP/IP, UART

- Max baudrate: 115200 bps

- Duplex: Full

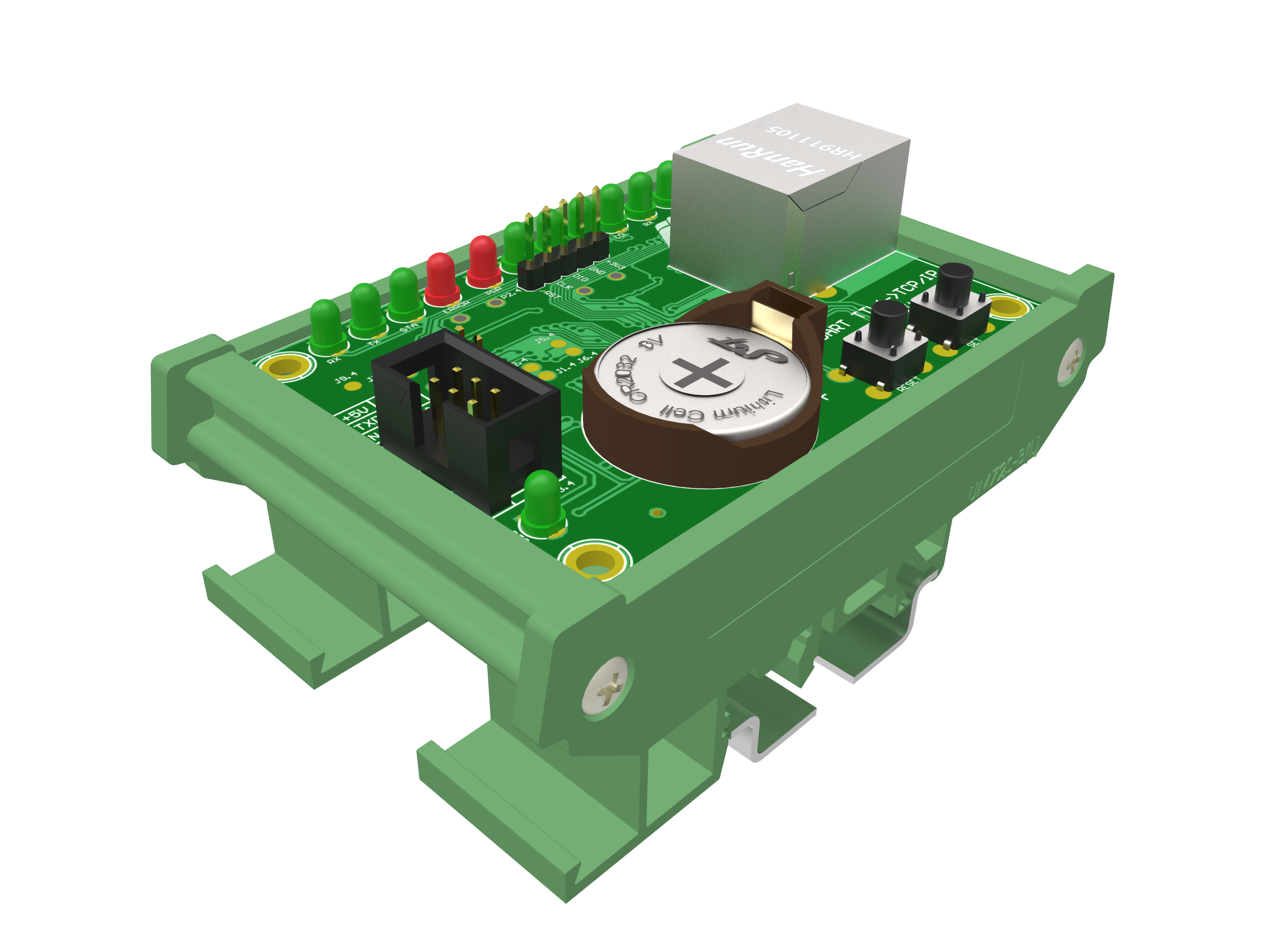

- Assembly method : Dinrail

- Dimension: 72x51x20 mm

- Other features: Support micro SD card, RTC, reset to factory default settings.

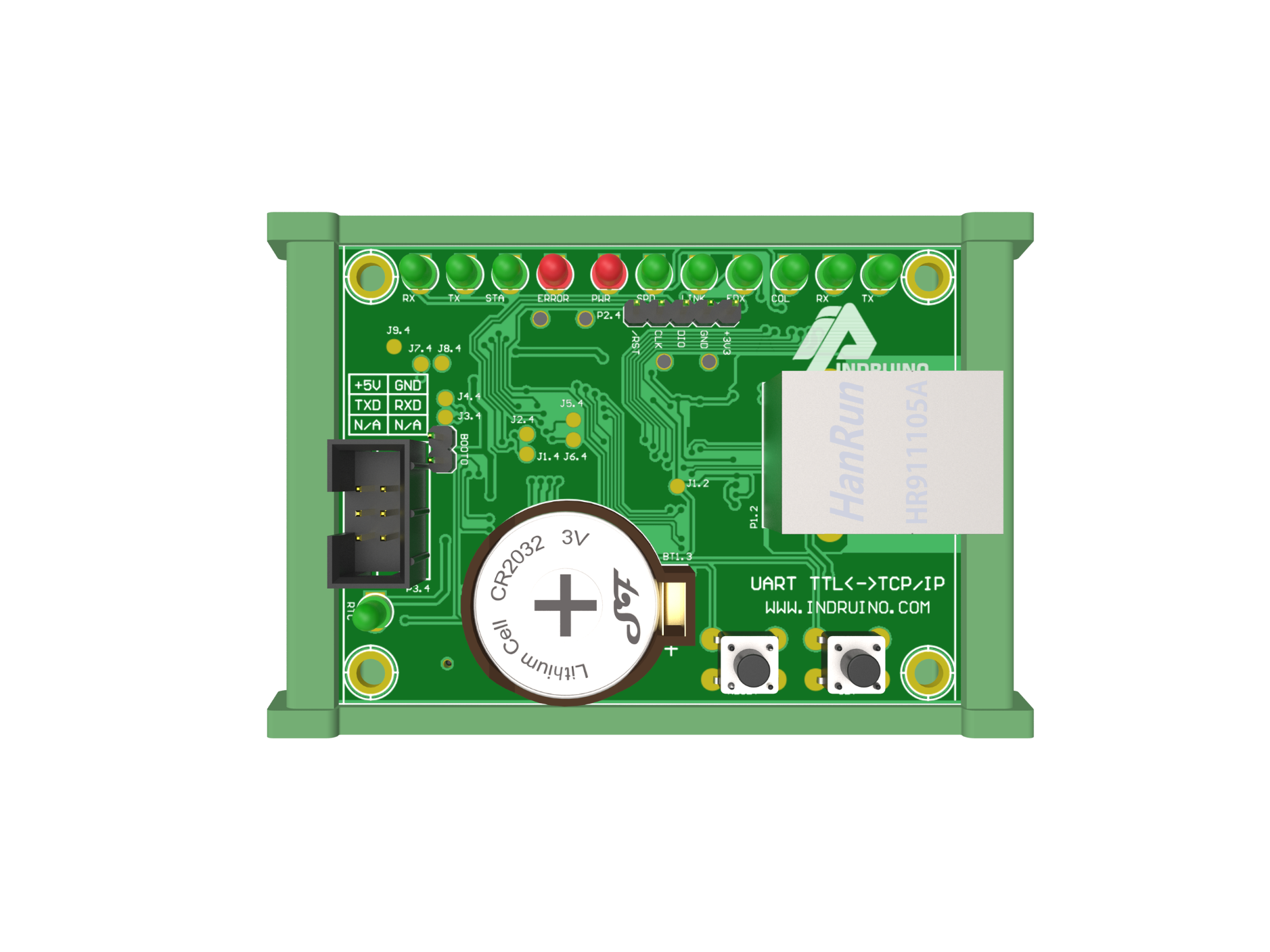

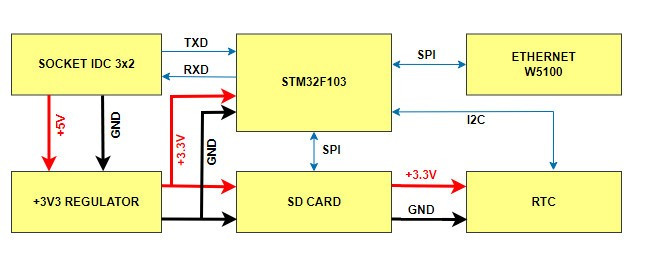

Block Diagram :

Download: https://drive.google.com/file/d/1YAbNDrAr8J7MHm0mvfozLDlL-mvW_kkm/view?usp=sharing
