iCPU-8DI/8DO-RLY/8AI

Description

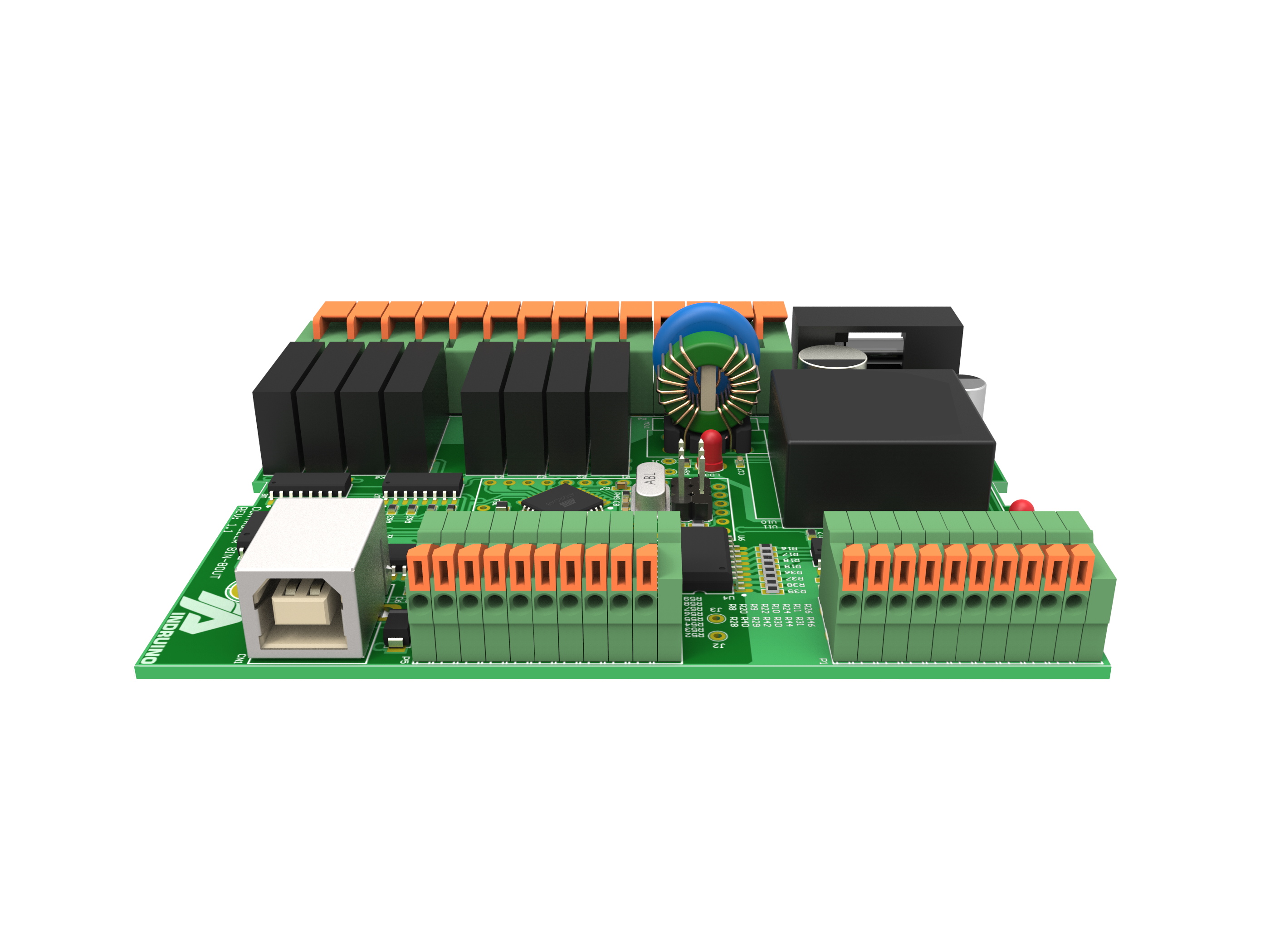

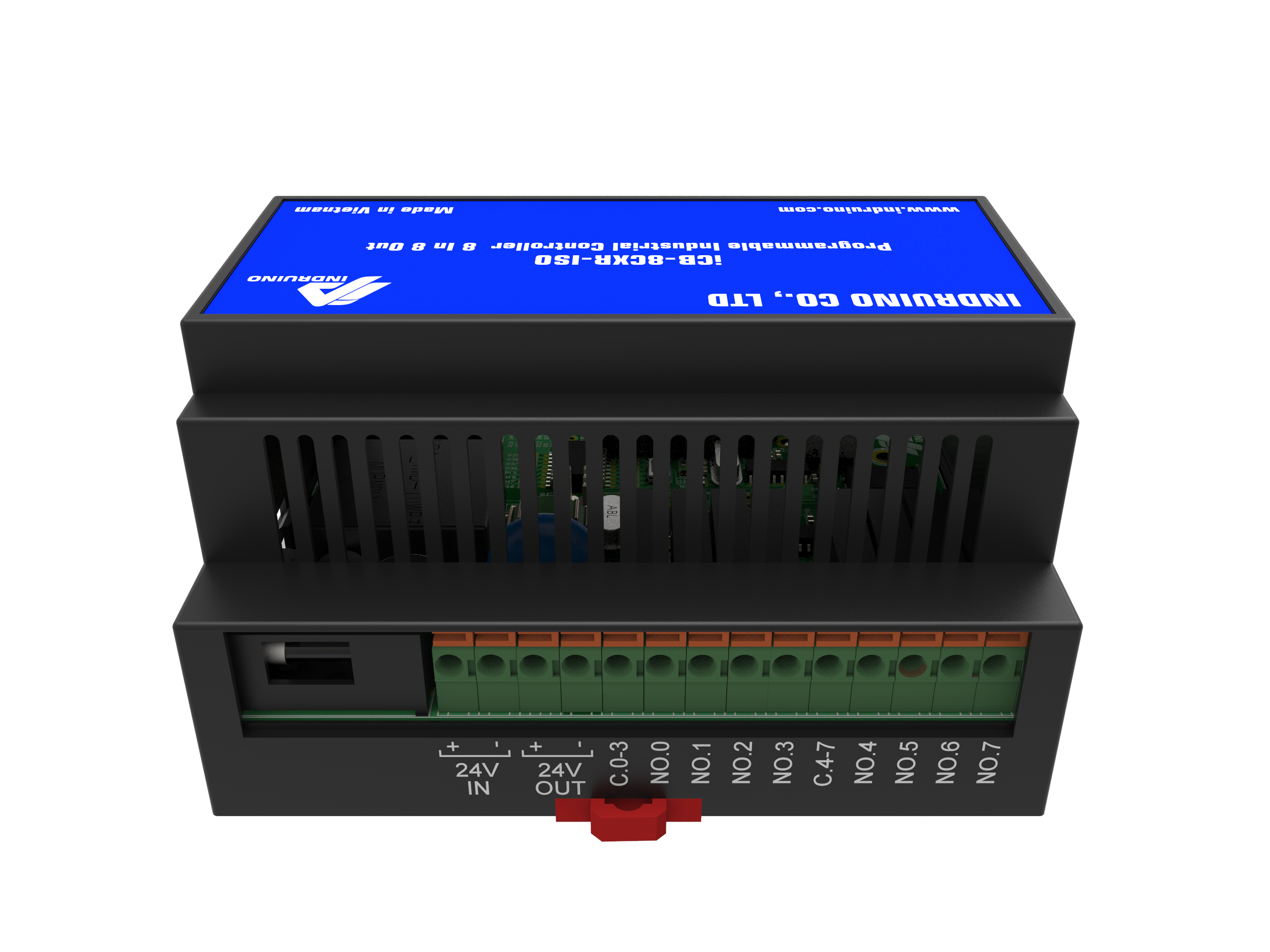

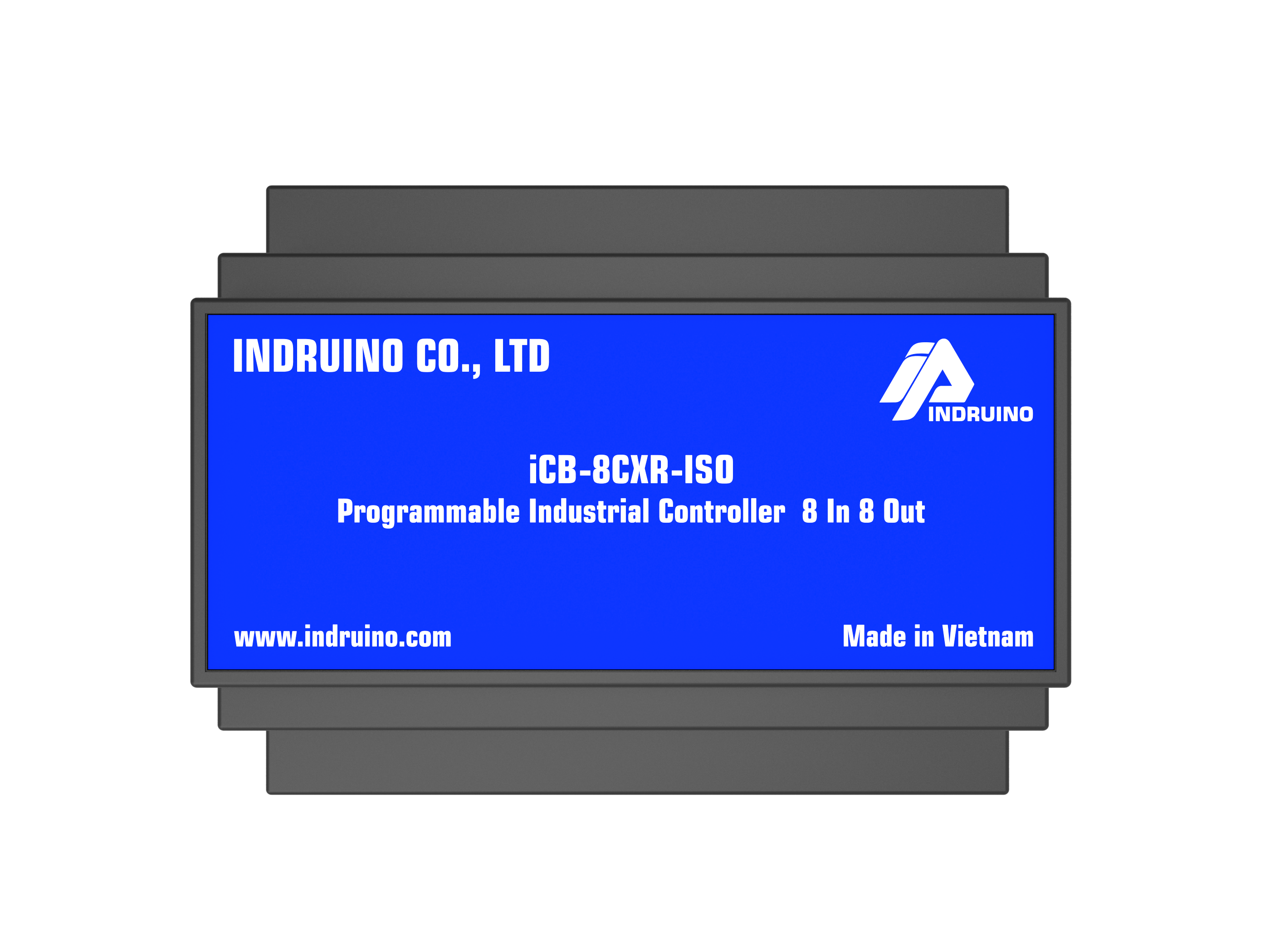

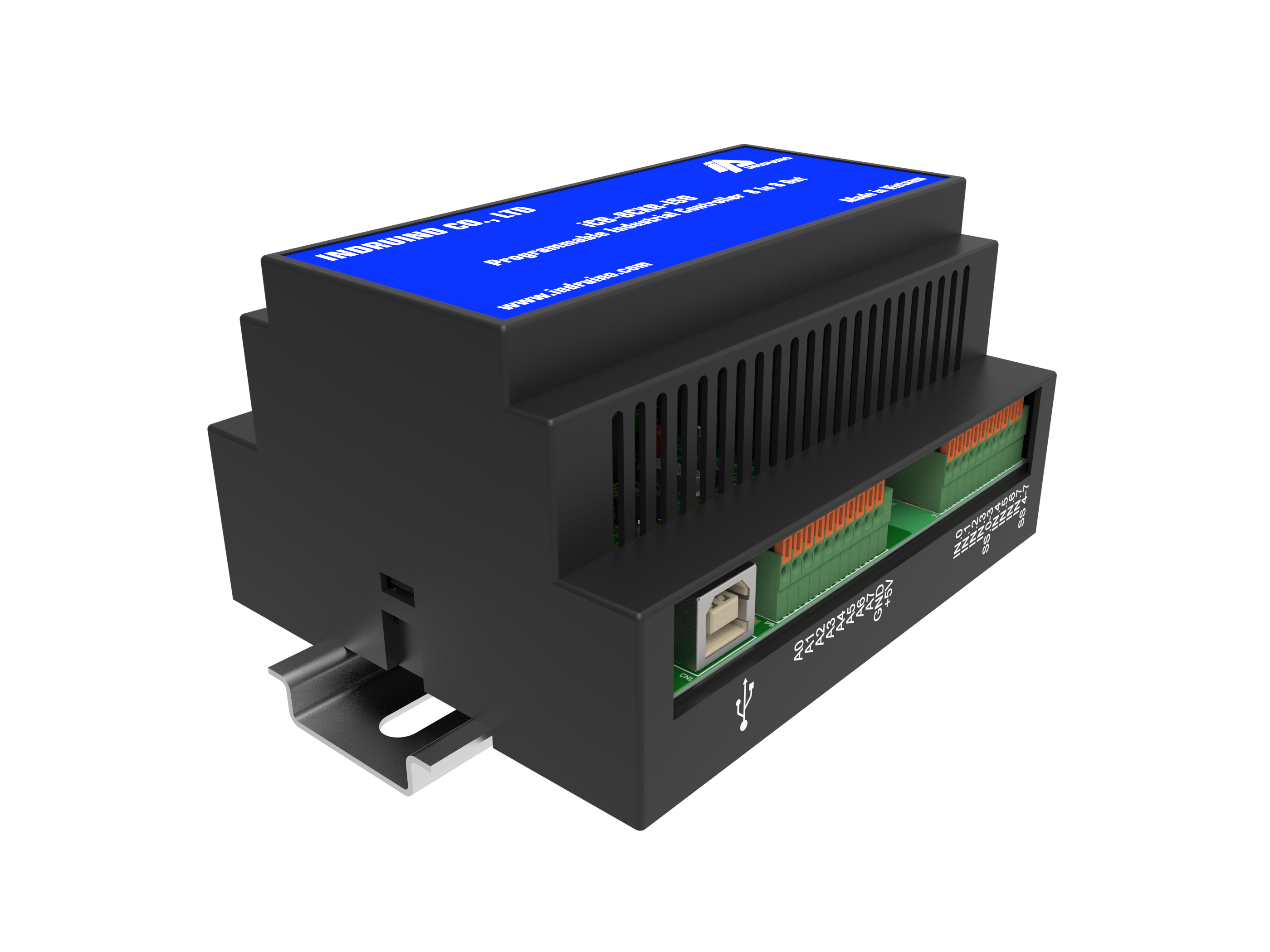

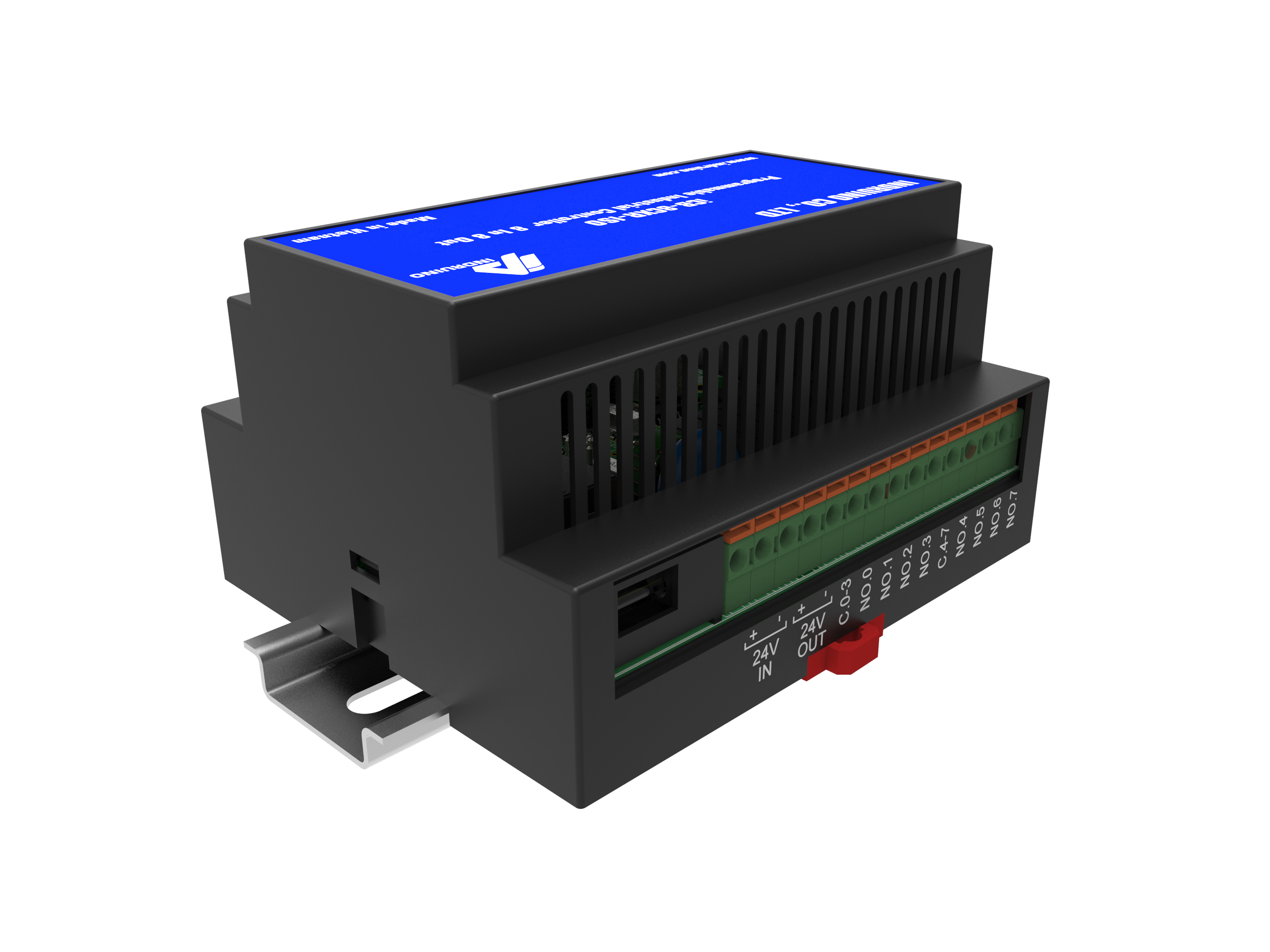

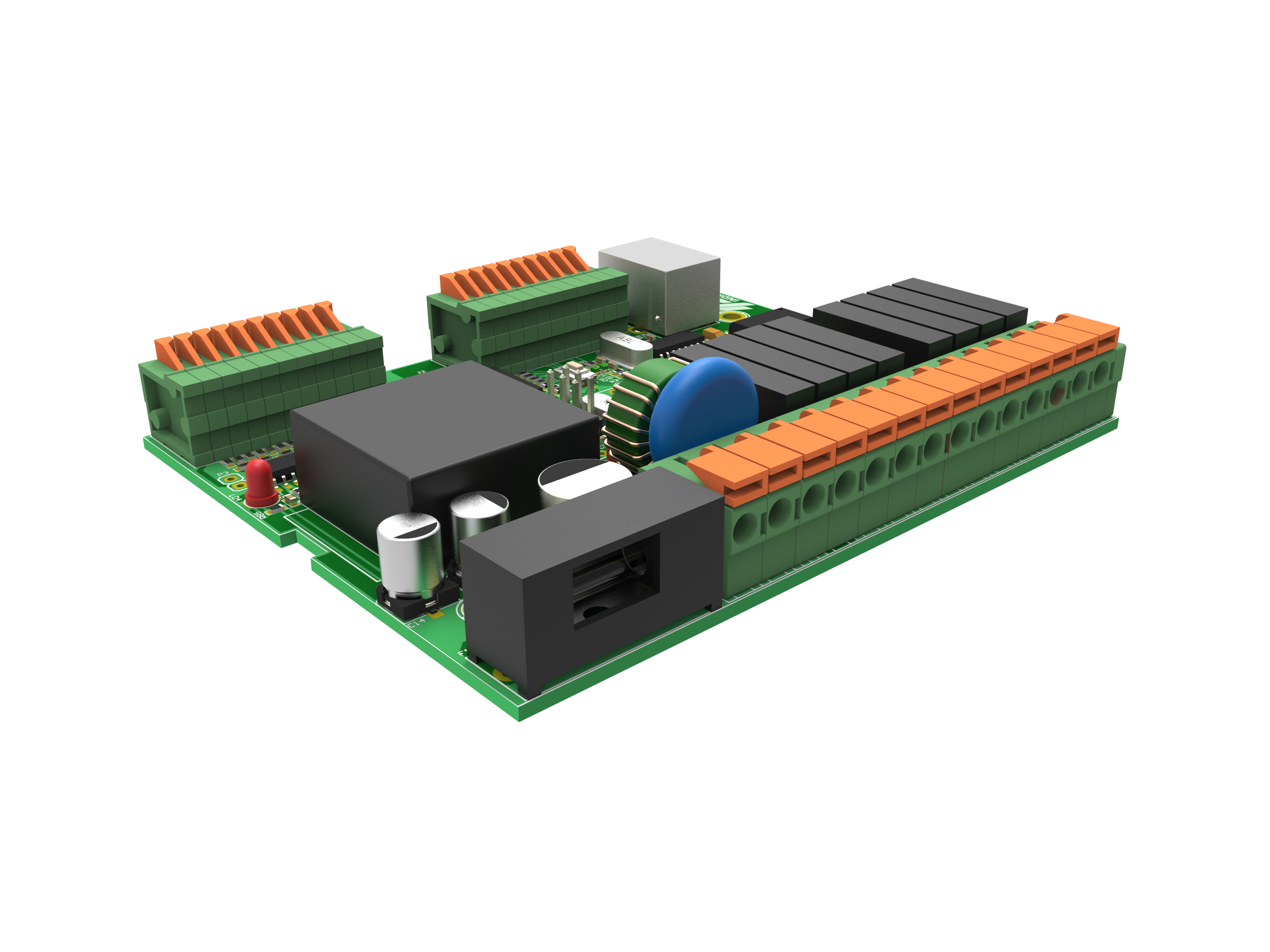

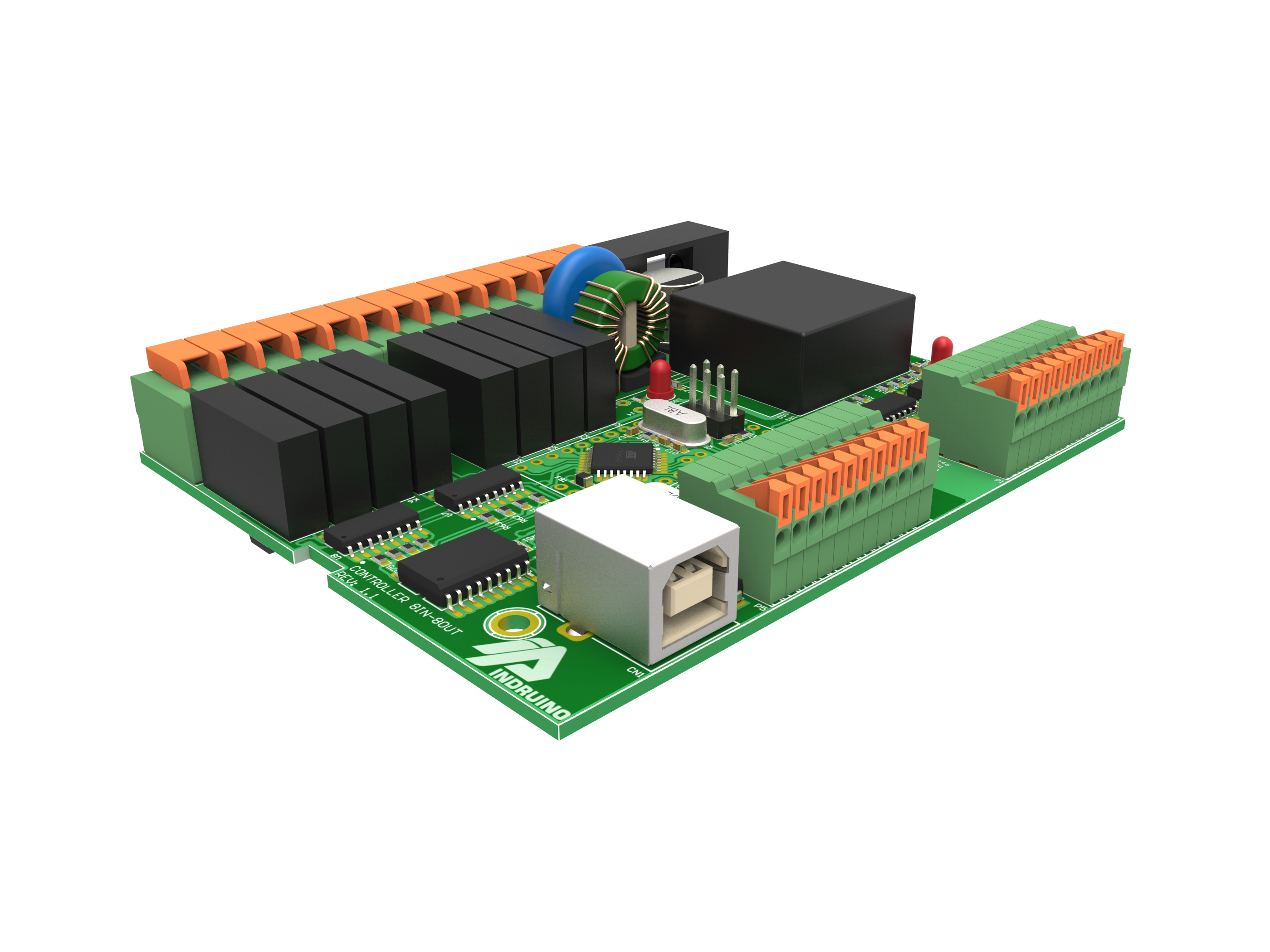

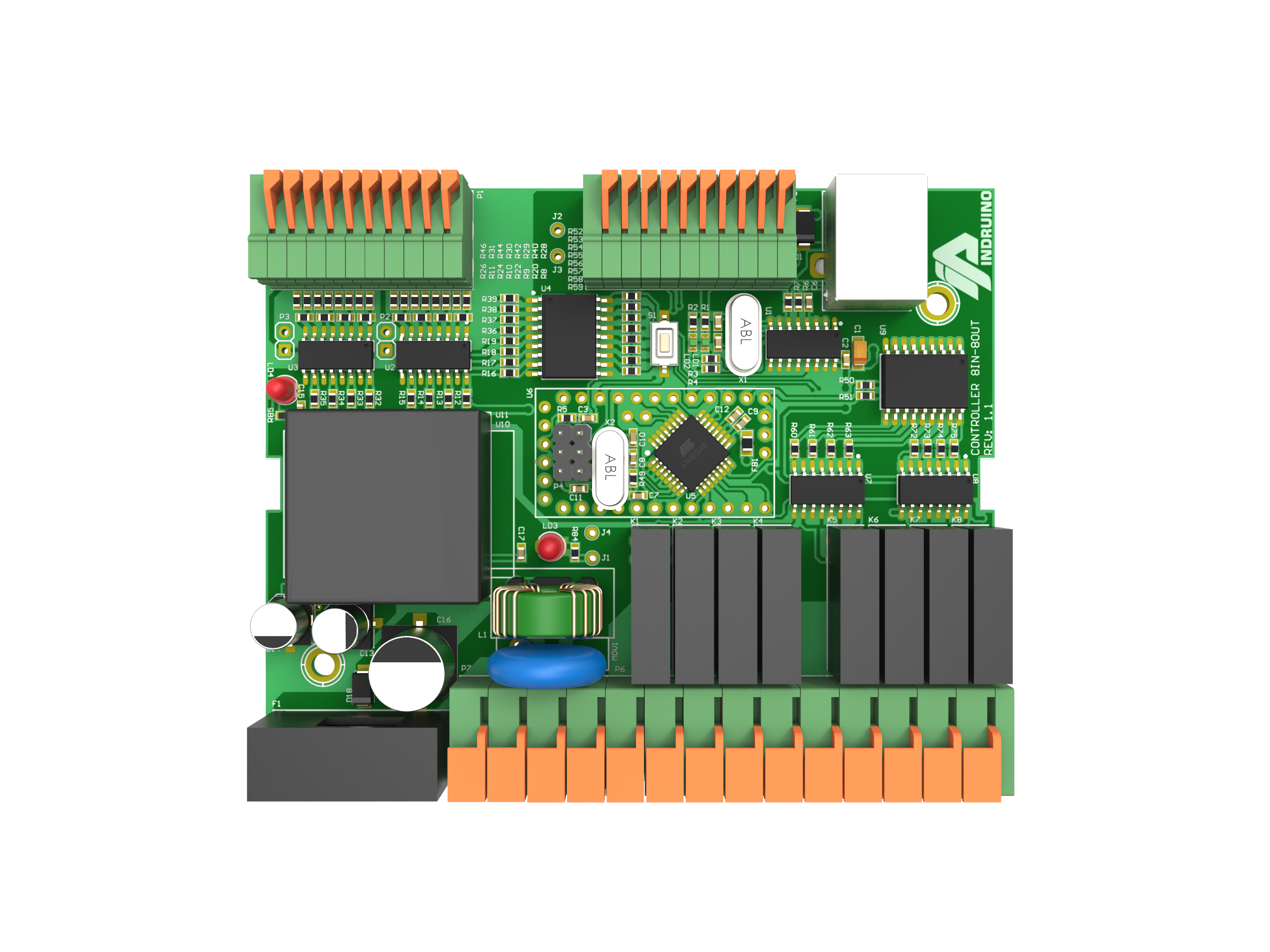

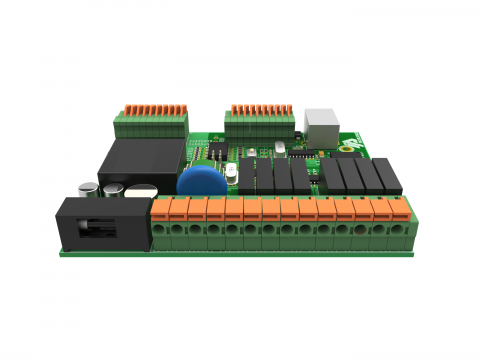

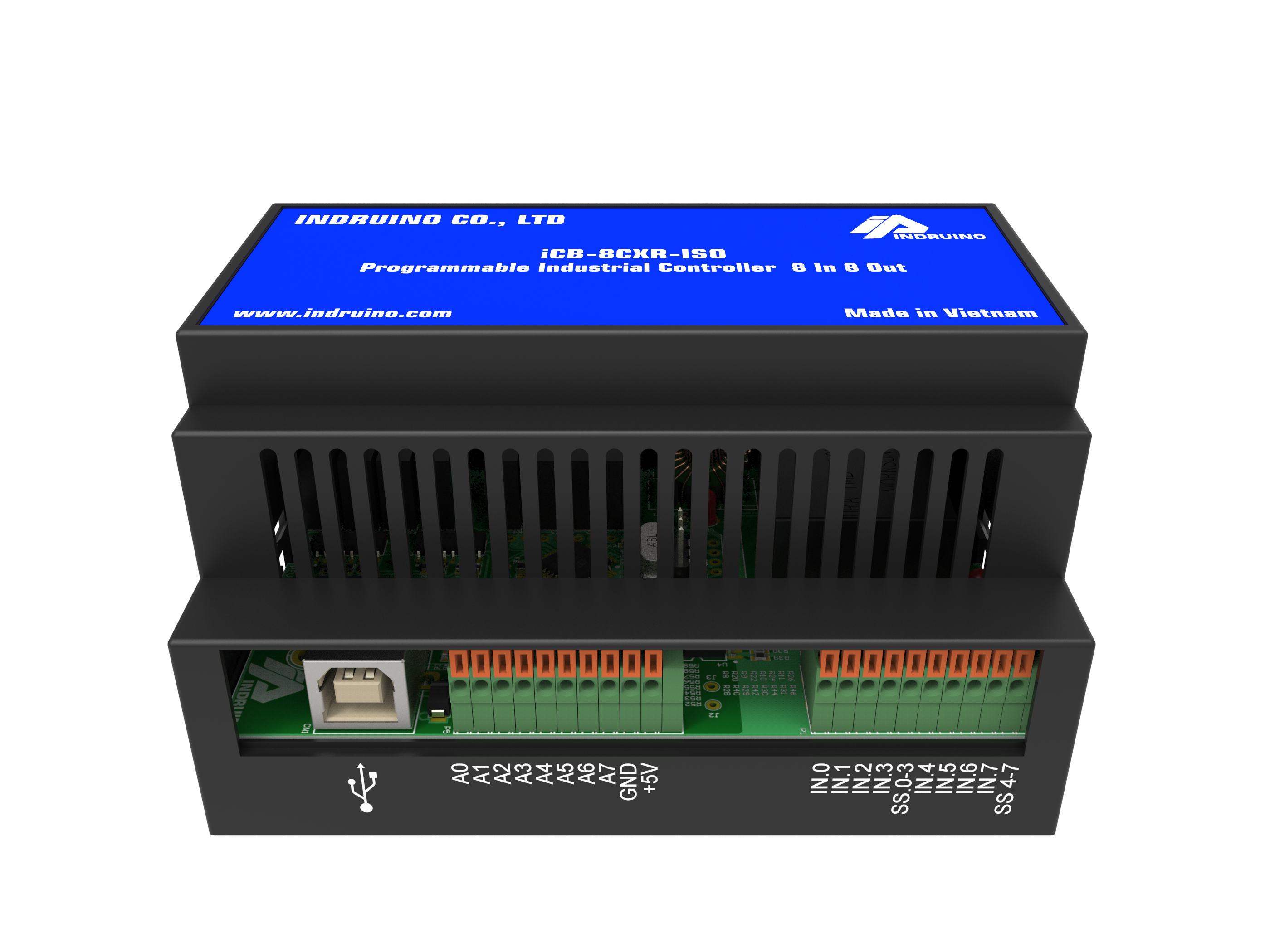

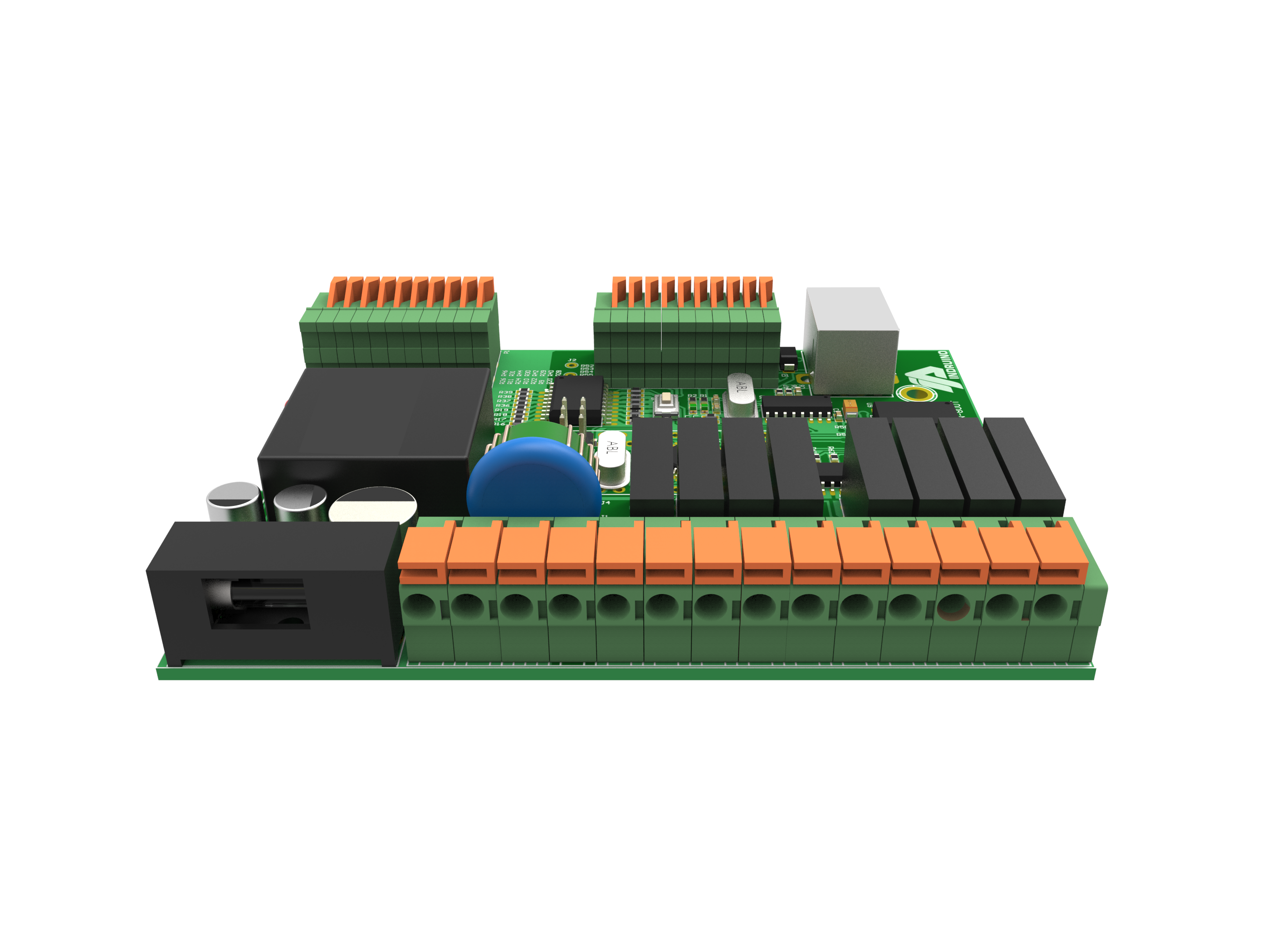

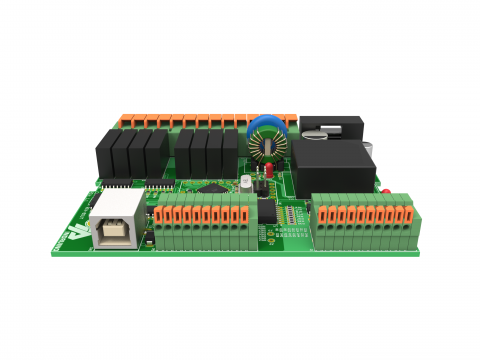

iCB-8CXR-ISO

- This controller is design to work well in the industrial environment. It's integrated the isolated DC/DC regulator, short circuit, over current, over voltage, fuse protection.

- Support 8 isolated digital input channels, input signal can be configed 5V or 24V level.

- Support 8 isolated relay output channels, max current up to 3A per each contact point, reliable working with high switching frequency.

- Otherwise, this controller also supports 8 analog input channels to read value of those sensor which has analog output.

- Progamming firmware using C, C++, Python, support libraries and sample code for the users.

TECHNICAL SPECIFICATIONS

- Power supply: 24 VDC

- Power consumtion: 10 W

- Microcontroller: 8 bit ATMega328

- Number of digital inputs: 8 isolated channels

- Number of relay outputs: 8 isolated relay output channels

- Number of analog inputs: 8 analog channels

- Interface: USB

- Other features: Box enclosure, dinrail connection

- Dimension: (L)105x(W)90x(H)60 mm

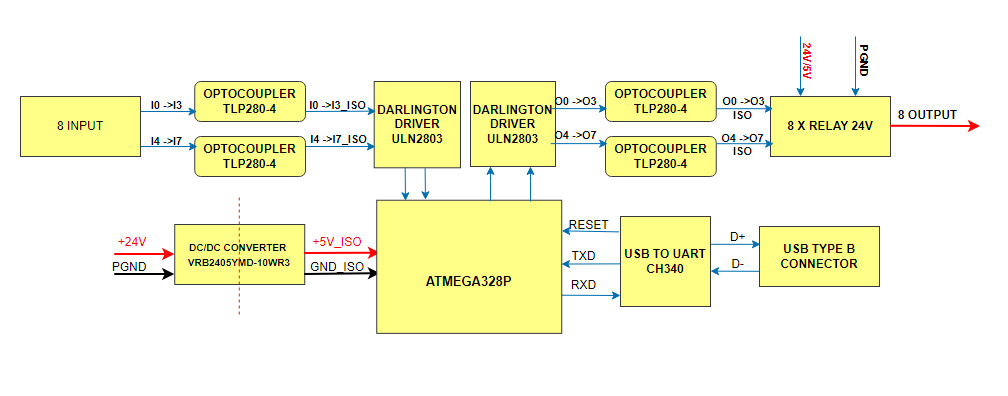

Block Diagram :

Download: https://drive.google.com/file/d/1TCzDXhTEIPOk5RYySWNk_TeVVatdOQUe/view?usp=sharing
