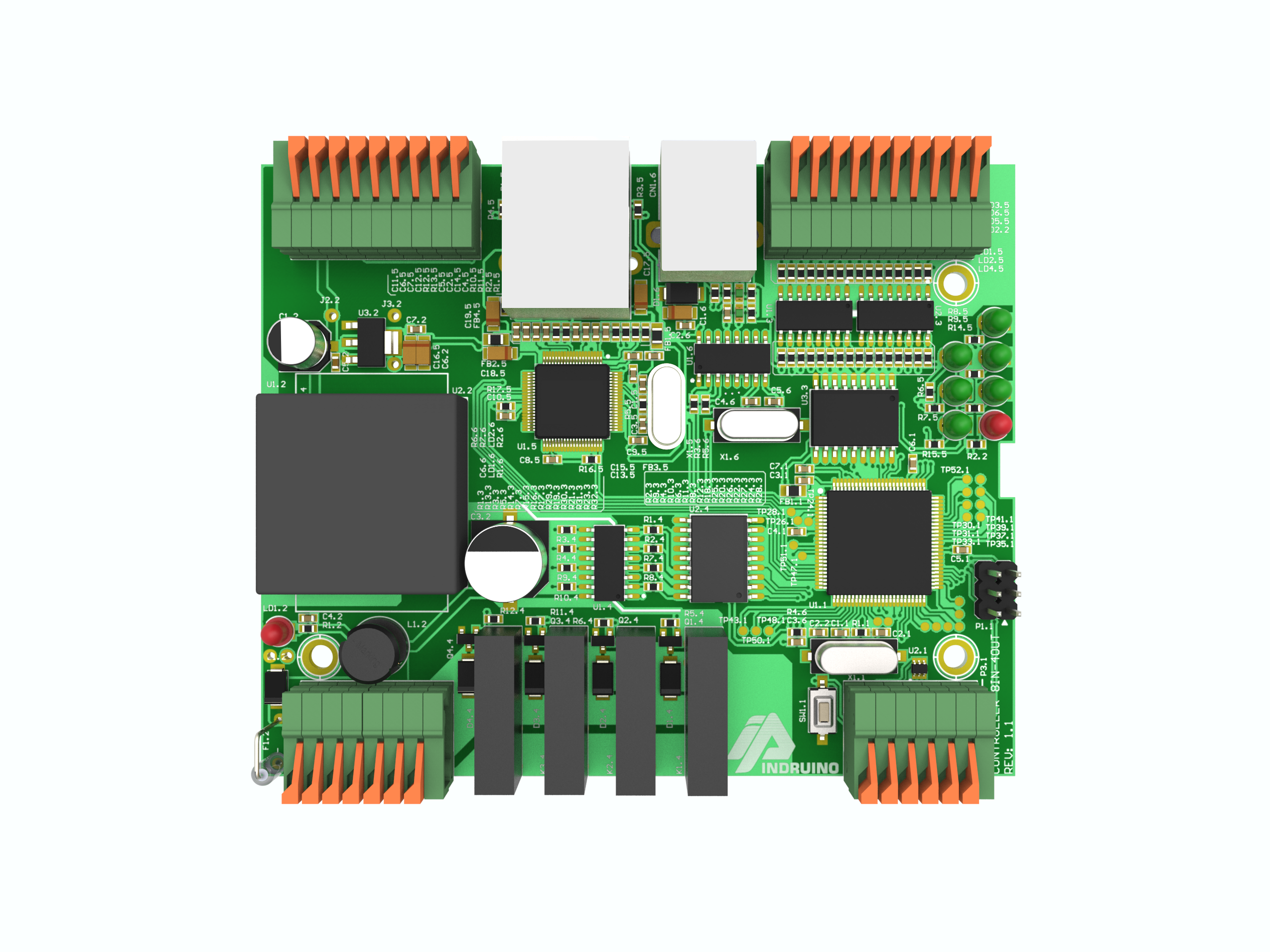

CONTROLLER_8IN_4OUT_V1I1_01
CONTROLLER_8IN_4OUT_V1I1_02
CONTROLLER_8IN_4OUT_V1I1_03

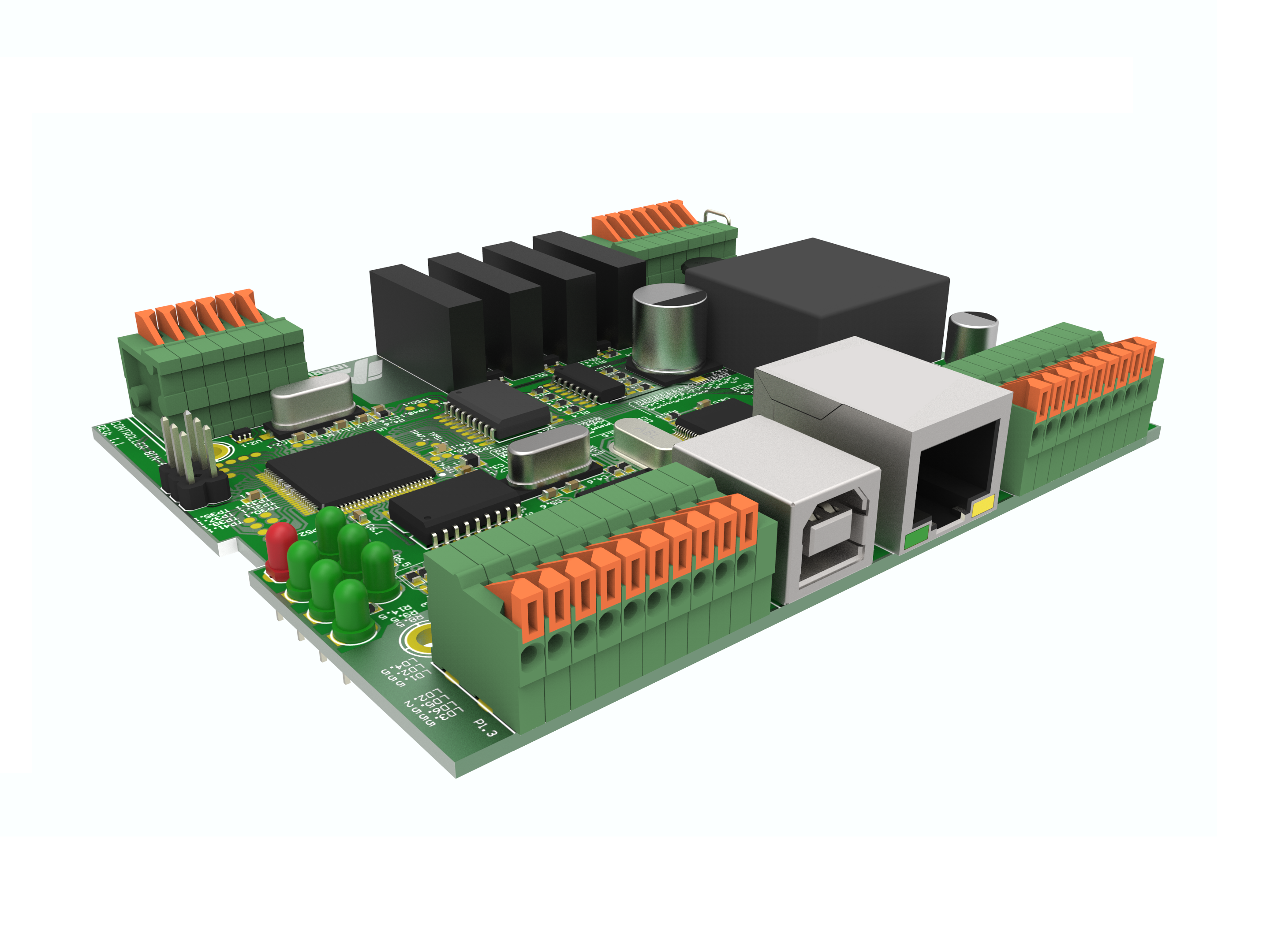

CONTROLLER_8IN_4OUT_V1I1_04
CONTROLLER_8IN_4OUT_V1I1_05
CONTROLLER_8IN_4OUT_V1I1_07
CONTROLLER_8IN_4OUT_V1I1_08
CONTROLLER_8IN_4OUT_V1I1_09
CONTROLLER_8IN_4OUT_V1I1_10

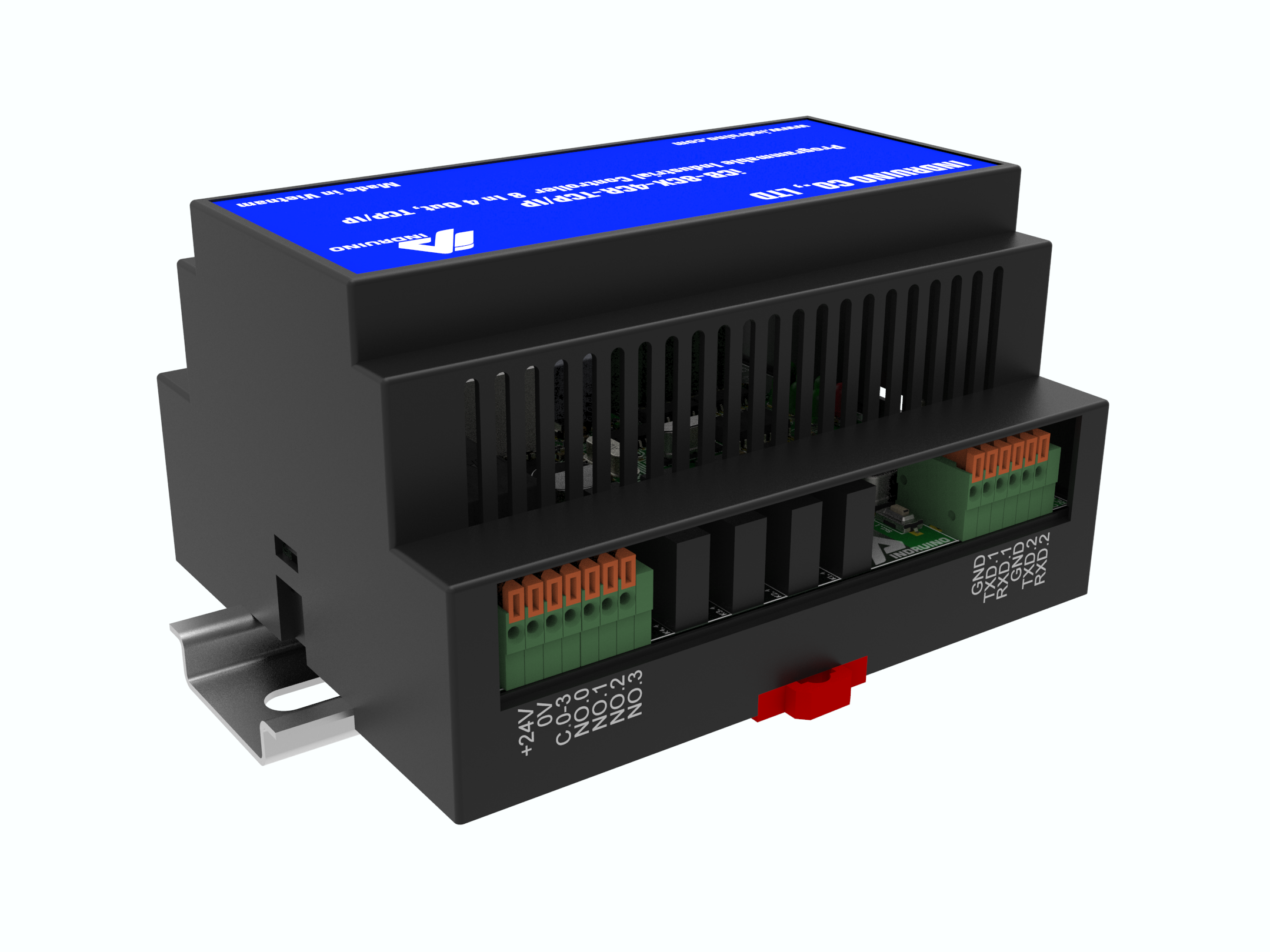

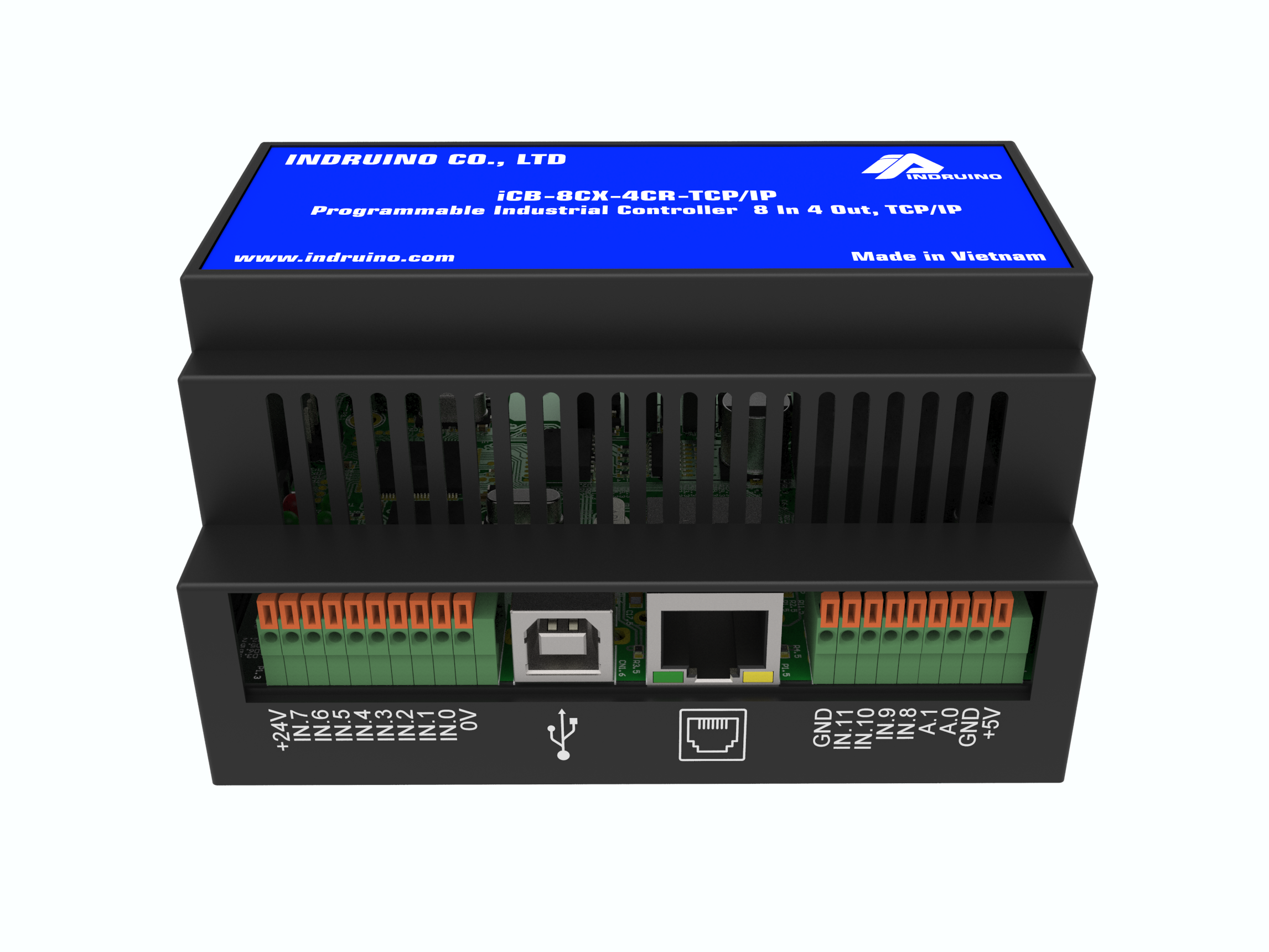

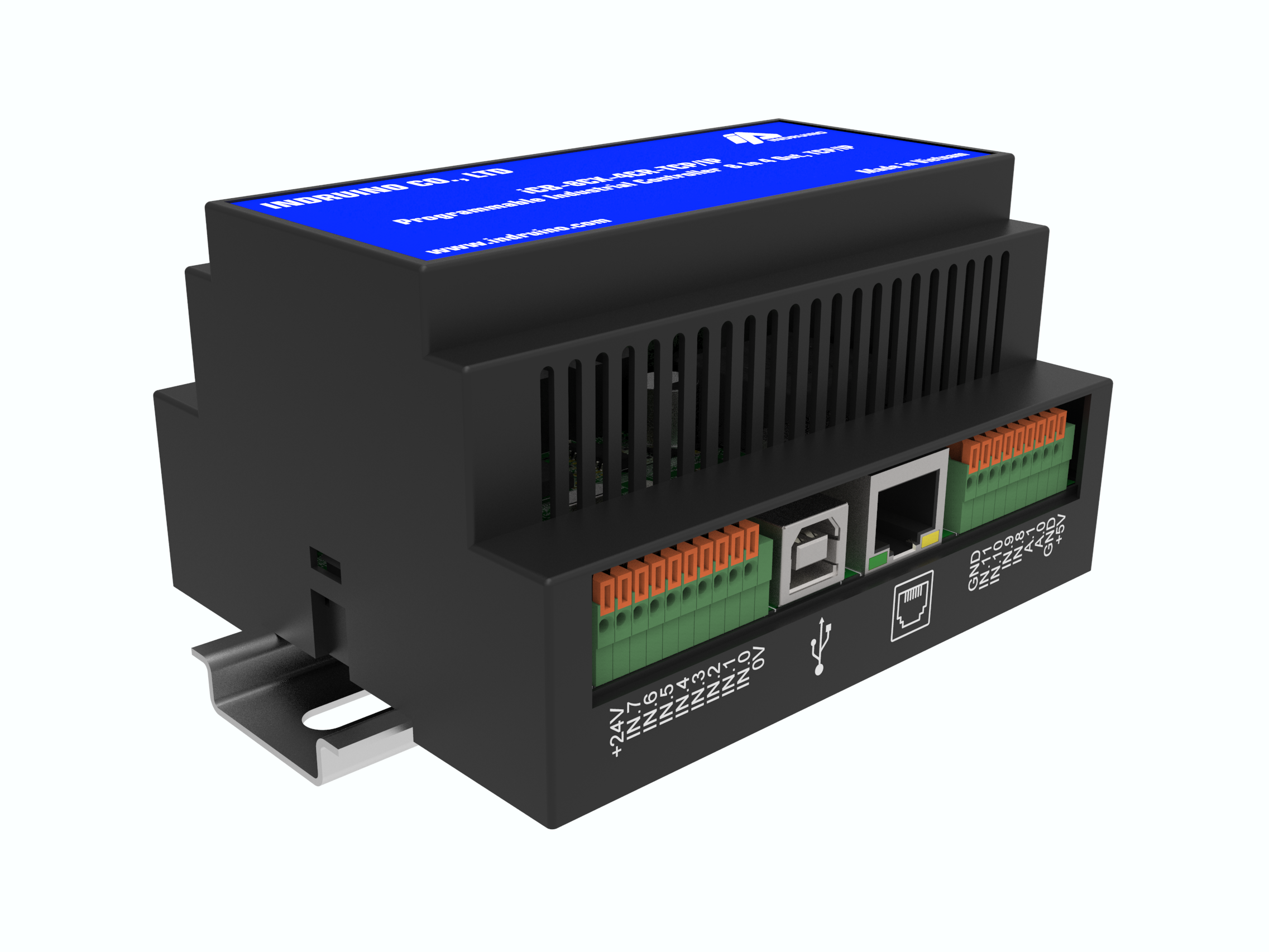

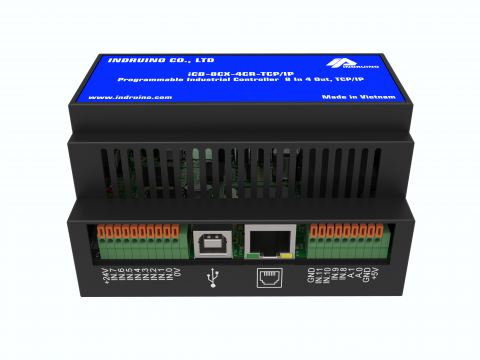

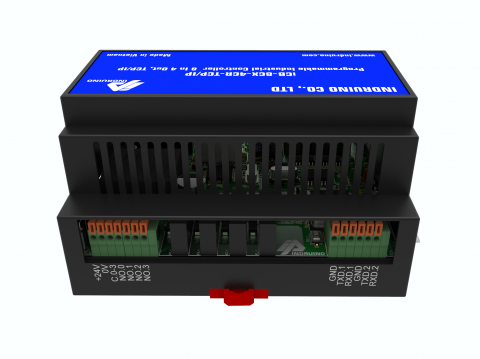

iCPU-8DI/4DO-RLY/TCP-IP

Description

iCB-8CX-4CR-TCP/IP

- This is a new product, it's compactly designed according to industrial standards, meeting the requirements of stability and reliability during use.

- It's integrated the isolated DC/DC regulator. Support RJ45-TCP / IP port for Ethernet, IoT related applications.

- Besides, it's supports 8 isolated digital signal input channels and 4 relay contact output channels, max current up to 3A per each contact point.

- Programming through C, C ++, Python with full library and reference sample code.

Technical Specifications :

- Power supply: 18-36VDC

- Microcontroller: ATMega2560

- Interface: TCP/IP, UART

- Number of inputs: 8 isolated channels

- Number of outputs: 4 isolated relay output channels

- Assembly method : Dinrail

- Dimenson (L x W x H) : 105x87x57 mm
