UNIVERSAL POWER BOARD

UNIVERSAL POWER BOARD

CUSTOMER : PMS

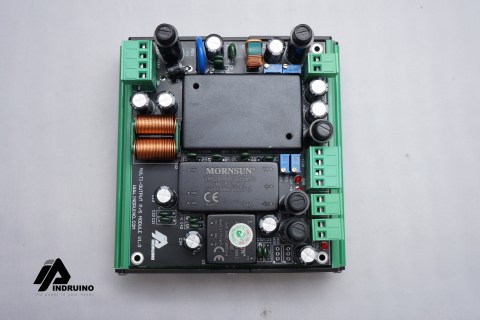

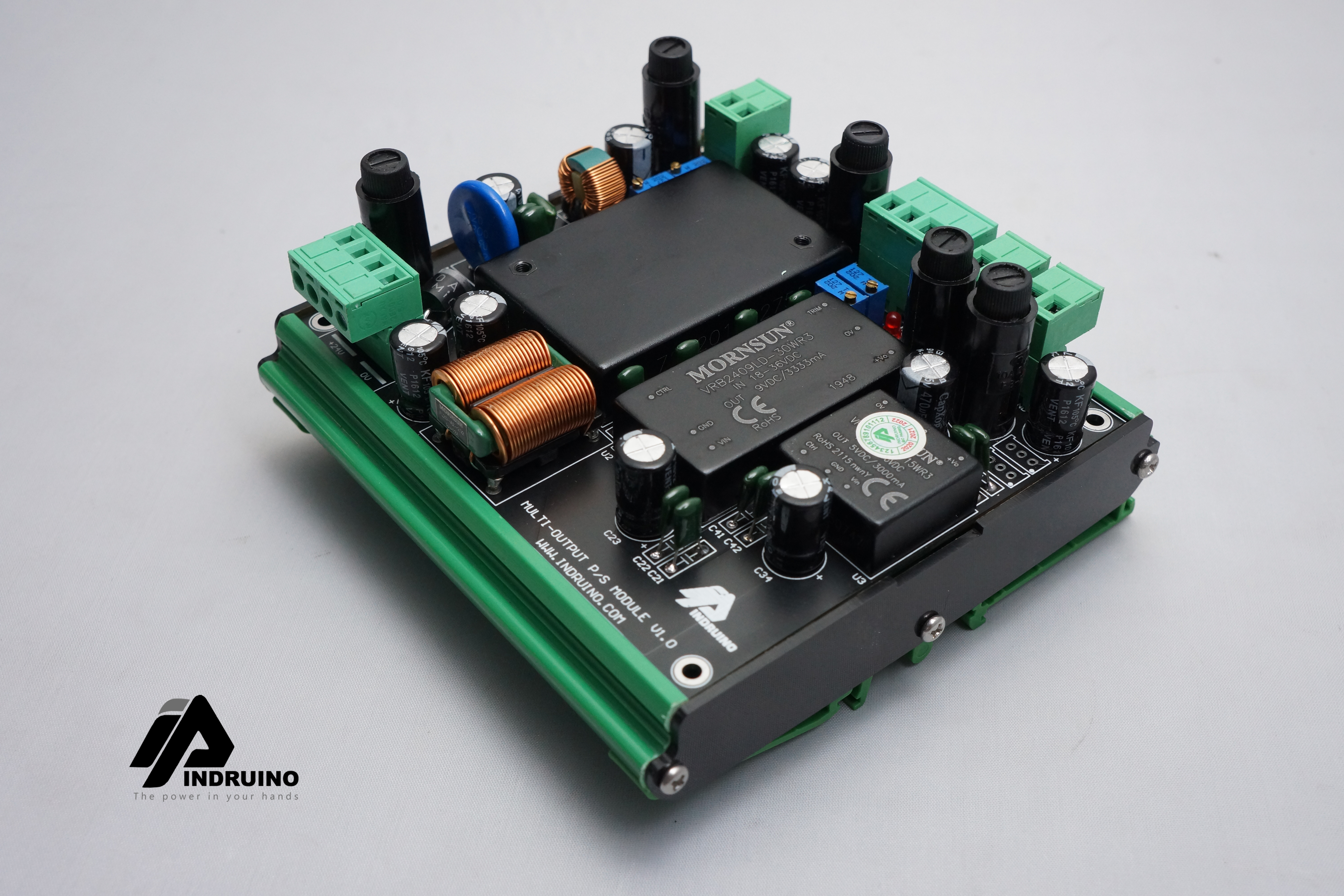

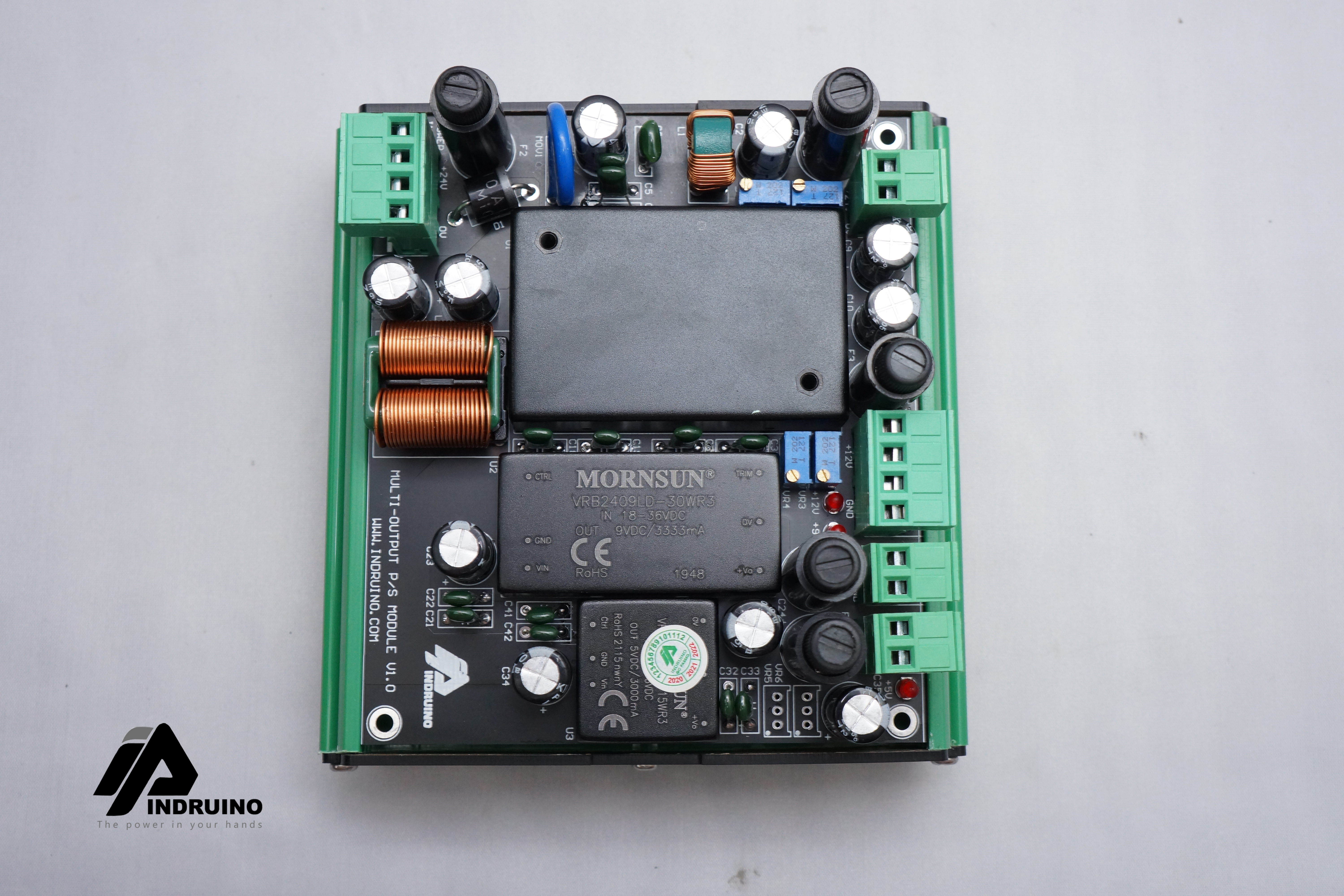

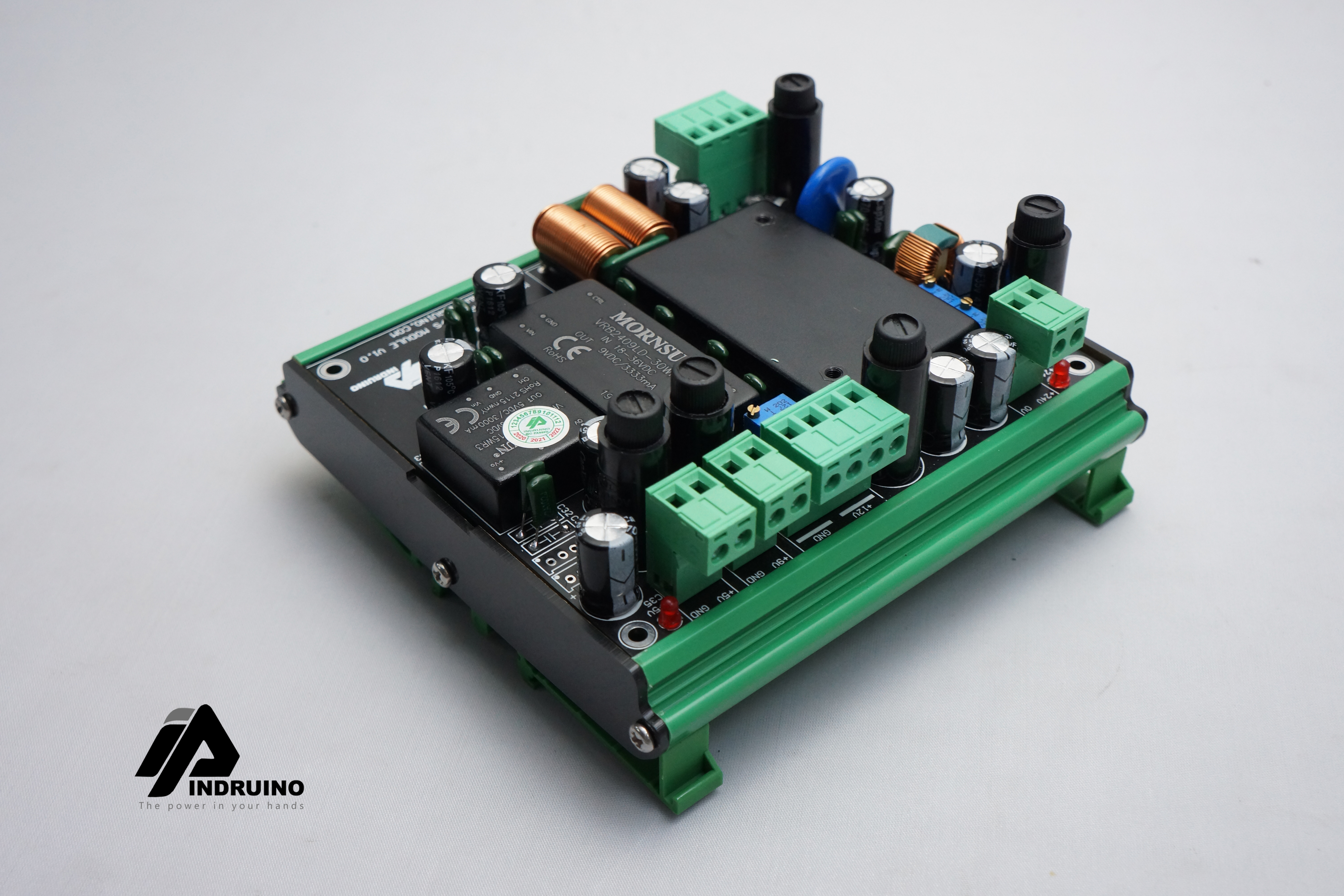

- This is a multi-function power board designed and manufactured by Indruino Company for customers.

- This power board has isolated DC/DC voltage conversion function, high power and stable output power.

- The product is compactly designed, using high quality DC/DC module, good anti-interference ability, with fuse protection for overcurrent, short circuit, with LED status indicator.

TECHNICAL SPECIFICATIONS

- Input voltage: 18-36VDC

- Output voltage: 24V/1.5A without isolation

- Output voltage: 12VDC/10A isolated (120W)

- Output voltage: 9.6VDC/3A isolated (30W)

- Output voltage: 5VDC/3A isolated (15W)

- Working temperature: -10 to 85 degrees Celsius

- Input overvoltage protection

- Include fuse for overcurrent and short circuit protection

- Output voltage fine-tuning potentiometer

- Using plugable dominoes, convenient to install or remove

- There are 4 holes for M3 screws to fix the circuit board

- Dimensions (L x Width): 120 x 107mm

- Dinrail standard size, easy to assemble.
