UNIVERSAL POWER BOARD WITH HIGH VOLTAGE INPUT

UNIVERSAL POWER BOARD WITH HIGH VOLTAGE INPUT

CUSTOMER : KF MOTORS

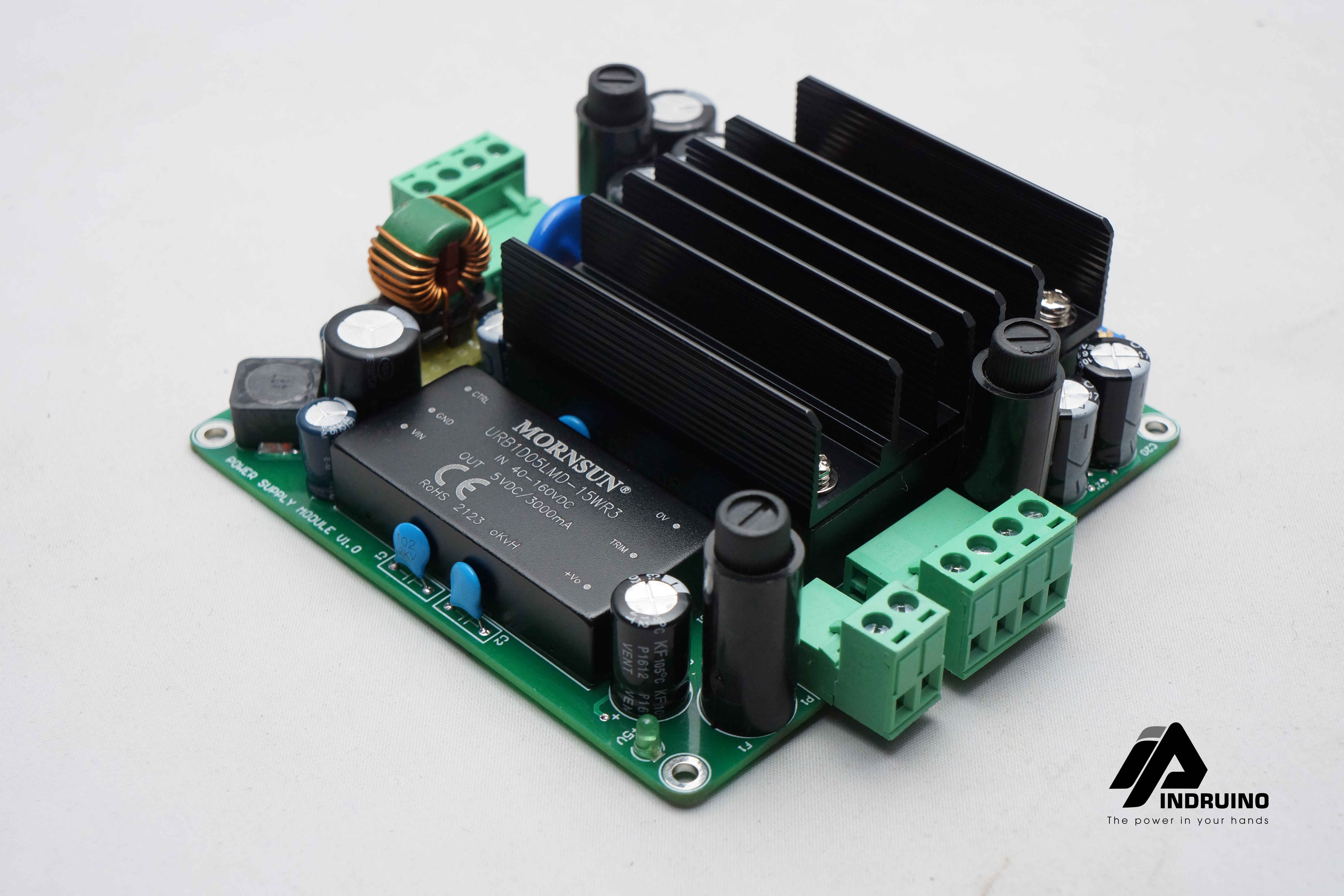

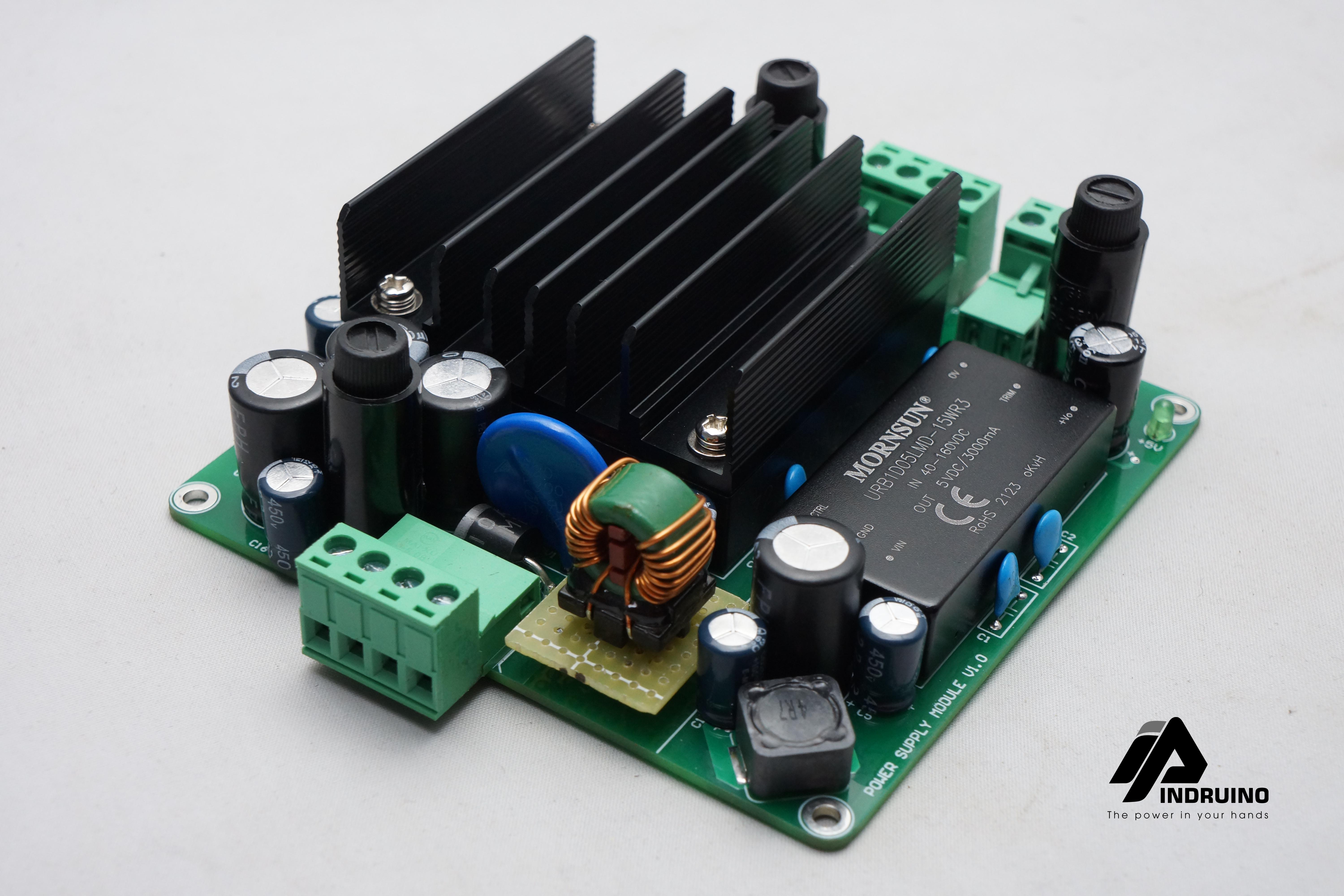

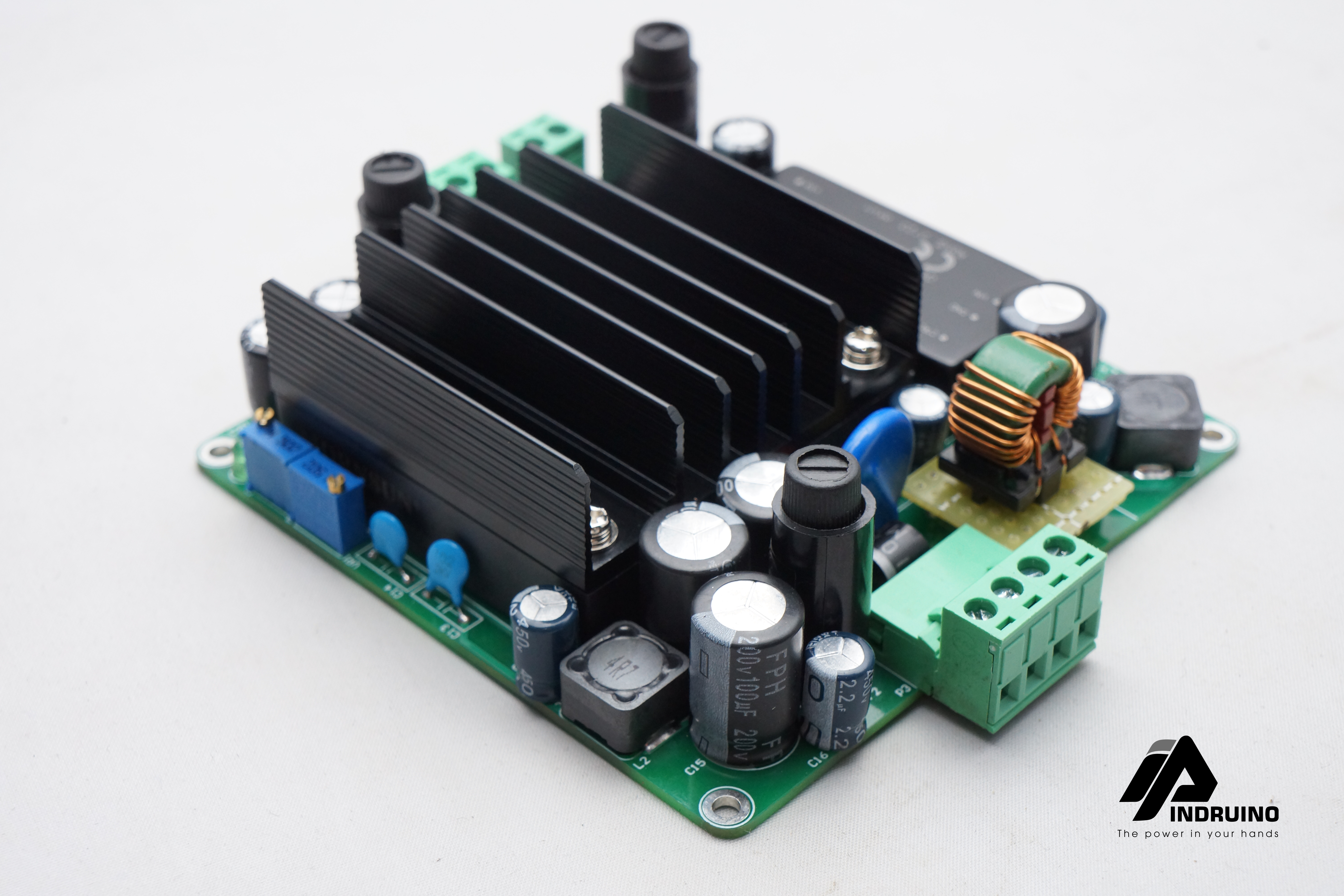

- This is a multi-function power board designed and manufactured by Indruino Company for customers.

- This power board has isolated DC/DC voltage conversion function, large input voltage range, high power and stable output power.

- The product is compactly designed, has a heat sink, uses high quality DC/DC modules, has good anti-interference ability, has fuses to protect against overcurrent, short circuit, and has LED status lights.

TECHNICAL SPECIFICATIONS

- Input voltage: 60-86VDC _Output voltage: 12VDC/12.5A isolated (150W)

- Output voltage: 5VDC/3A isolated (15W)

- Working temperature: -10 to 85 degrees Celsius

- Input overvoltage protection

- Include fuses for overcurrent and short circuit protection

- Include output voltage fine-tuning potentiometer

- Using plugable dominoes, convenient to install or remove

- There are 4 holes for M3 screws to fix the circuit board

- Dimensions (L x Width): 104 x 100mm
