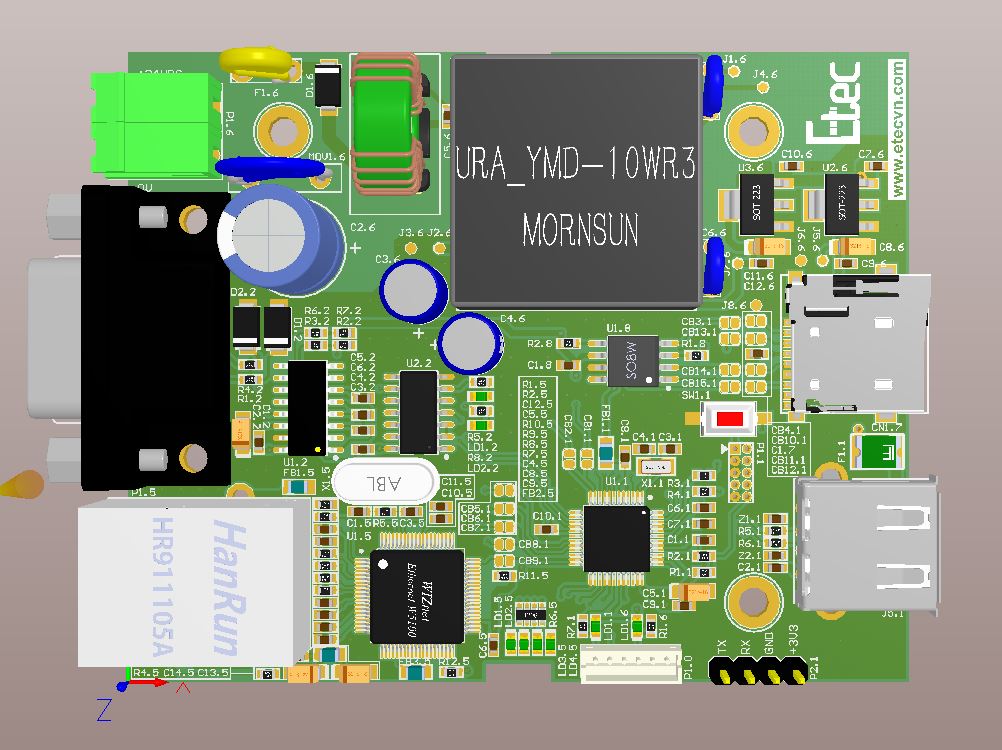

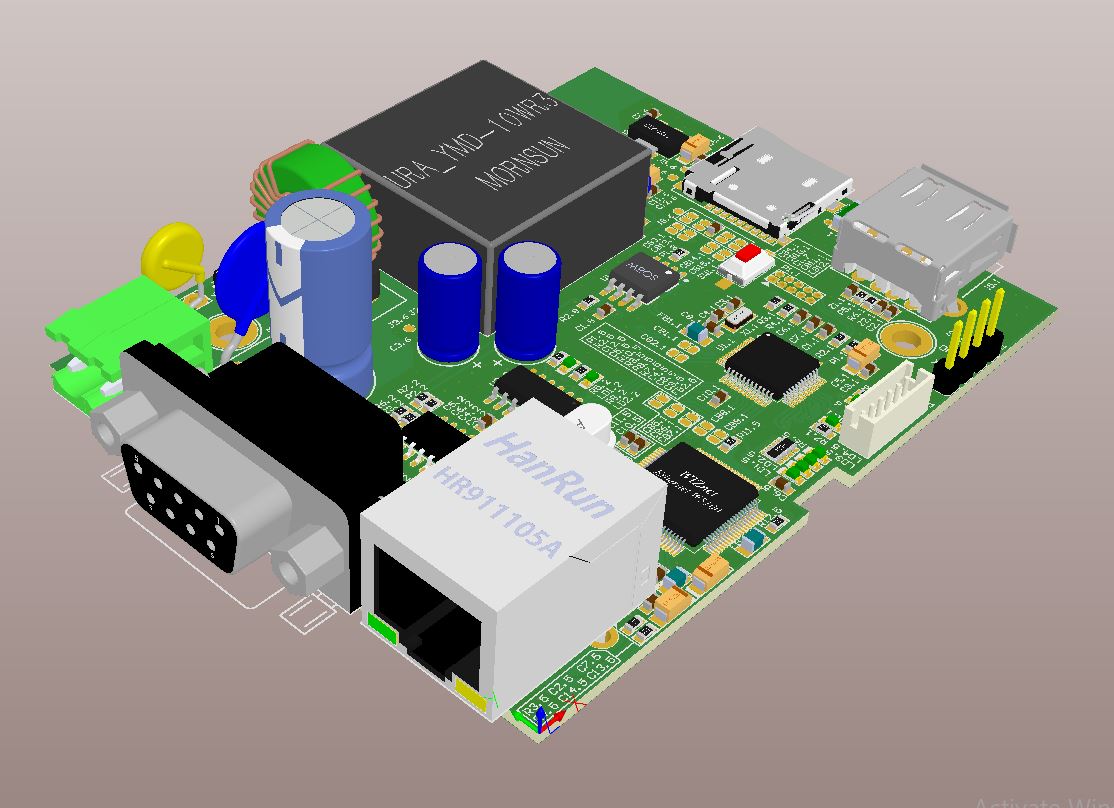

RS232/ Ethernet TCP/IP to USB 2.0 Converter Board

THERMAL PRINTER CONTROLLER

CUSTOMER : ETEC

- This is a controller that communicates with the HMI display and thermal printer to print receipts in factory format. This product is designed and manufactured by Indruino Company according to the needs of customers.

- The controller has the function of communicating with Modbus RTU via RS232 or RS485 or Modbus TCP/IP via Ethernet. Communicate with thermal printer via USB Host. In addition, the controller also integrates a MicroSD card to store data.

- The product is compactly designed, with screw holes for positioning.

Technical Specifications

- Input voltage: 24VDC/0.5A _Output voltage: 5VDC/2A isolated (10W)

- Working temperature: -10 to 85 degrees Celsius _Microcontroller: ATSAMD21G18 _With fuse for overcurrent and short circuit protection _RS232, RS485, Ethernet TCP/IP communication with HMI display

- Communication Host USB 2.0 with thermal printer

- Include MicroSD card slot

- There is an M3 screw hole to fix the circuit board

- There are LED status indicator lights

- Board size: 83 x 67mm
