IoT CONTROLLER SUPPORTS REPORTING THE STATUS OF PRODUCTS IN REAL-TIME

IoT CONTROLLER SUPPORTS REPORTING THE STATUS OF PRODUCTS IN REAL-TIME

CUSTOMER : DATALOGIC

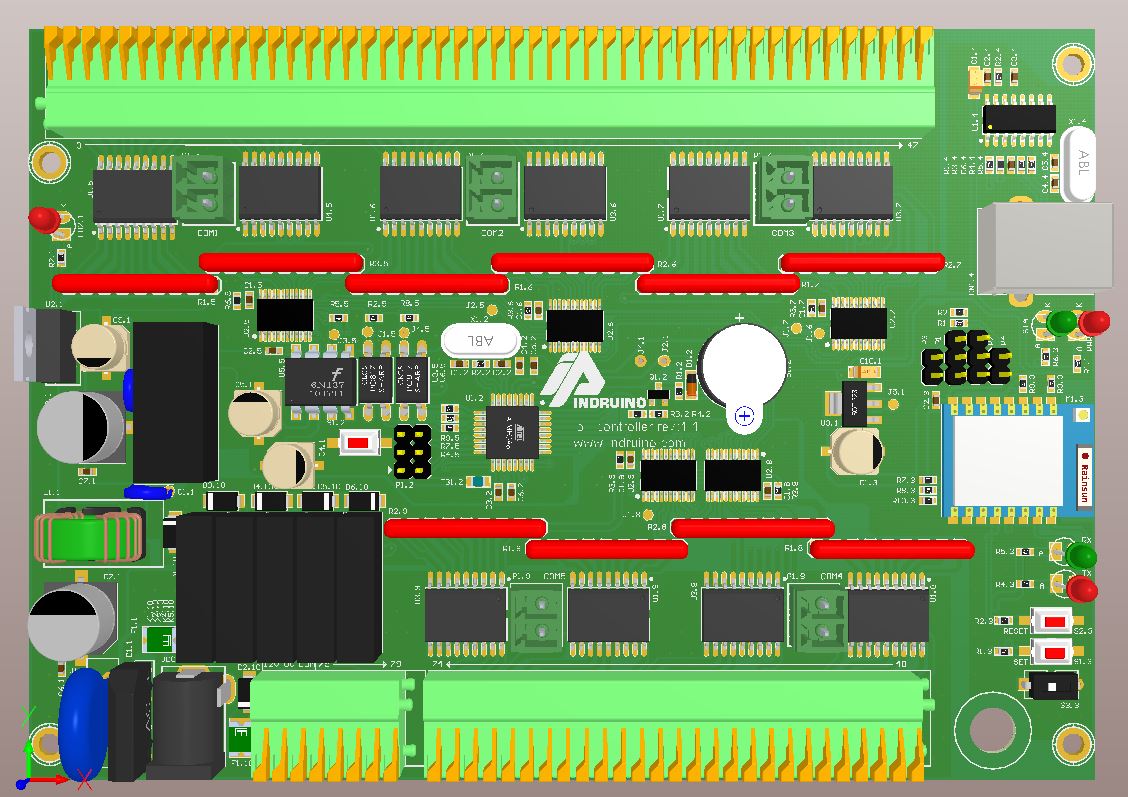

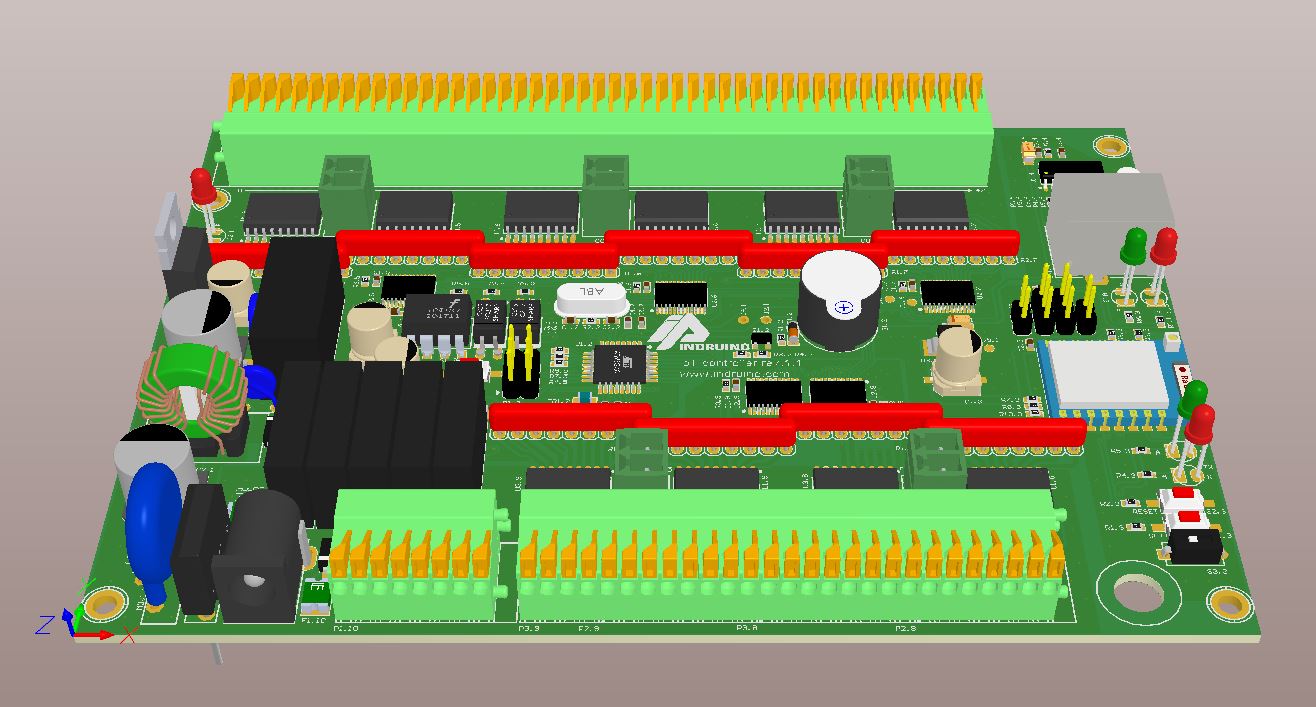

- This is an IoT controller that automatically reports the status of production materials to the warehouse department in real time, this product is designed and manufactured by Indruino Company according to customer needs.

- This product is used to update the status of materials supplied to production workers, connect wifi to the factory's server system to exchange information in real time.

TECHNICAL SPECIFICATIONS

- Input voltage: 12VDC/1.5A

- Output voltage: 5VDC/2A isolation

- Number of open-collector outputs: 75 channels

- Relay contact output number: 5 channels 3A

- USB communication, WIFI ESP8266 IEEE 802.11b/g/n

- Using spring dominoes, easy to connect wires without using screwdrivers

- Assembled according to Dinrail standards

- There are 4 screw holes to fix the circuit board

- Circuit board size: 152 x 107mm
