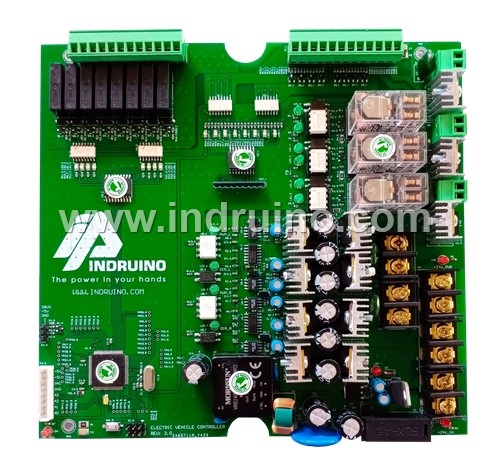

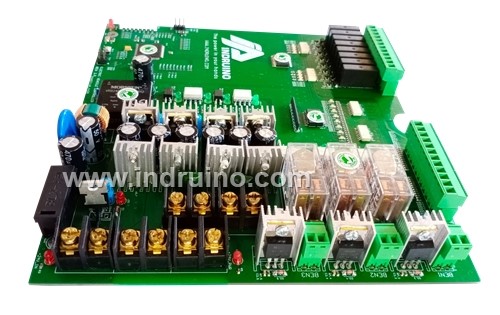

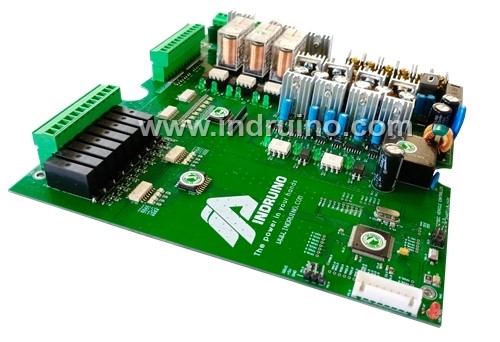

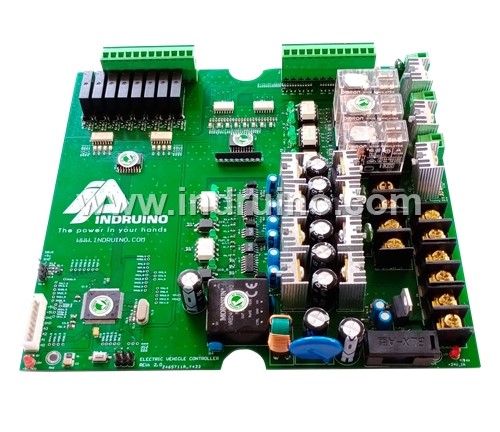

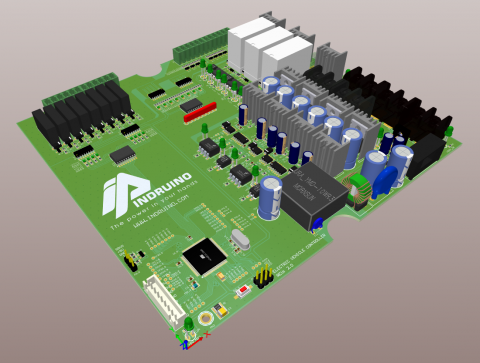

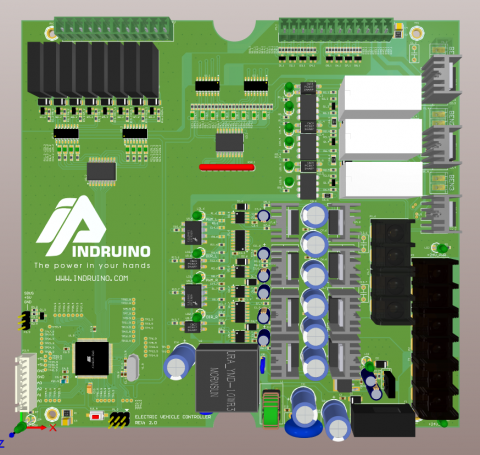

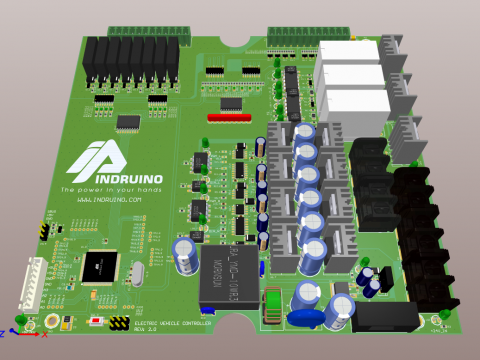

FIRE TRUCK CONTROLLER

FIRE TRUCK CONTROLLER

CUSTOMER : SAM NHIET DOI

- This is the new product, it is designed used to do central controller for electric vehicle all type.

- It's integrated the isolated DC/DC regulator.DC motor controller High current, up to 50A/motor.

- Support 8 isolated digital input channels, to connect with safe sensor, 8 isolated relay output channels, max current up to 3A per each contact point.

- It is supported communication Sbus and ADC to connect with remote controll.

TECHNICAL SPECIFICATIONS

- Power supply: 18-36VDC

- Microcontroller: ATMega2560

- Interface: ICSP

- Number of inputs: 8 isolated channels

- Number of outputs: 8 isolated relay output channels

- High power  DC motor controller: 2 motors, up to 50A/motor

- Low power DC motor controller: 3 motors, up to 5A/motor

- Short circuit, over current, over voltage protection

- Support remote controller: SBUS protocol

- Number of analog signal: 4

- Size: 185x172mm
