ELECTRICAL EQUIPMENT CONTROLLER IN HOTEL ROOM

ELECTRICAL EQUIPMENT CONTROLLER IN HOTEL ROOM

CUSTOMER : Dalat Vocational College

- This is a controller for opening and closing electrical devices in the hotel rooms, this product is designed and manufactured by Indruino Company according to the needs of customers.

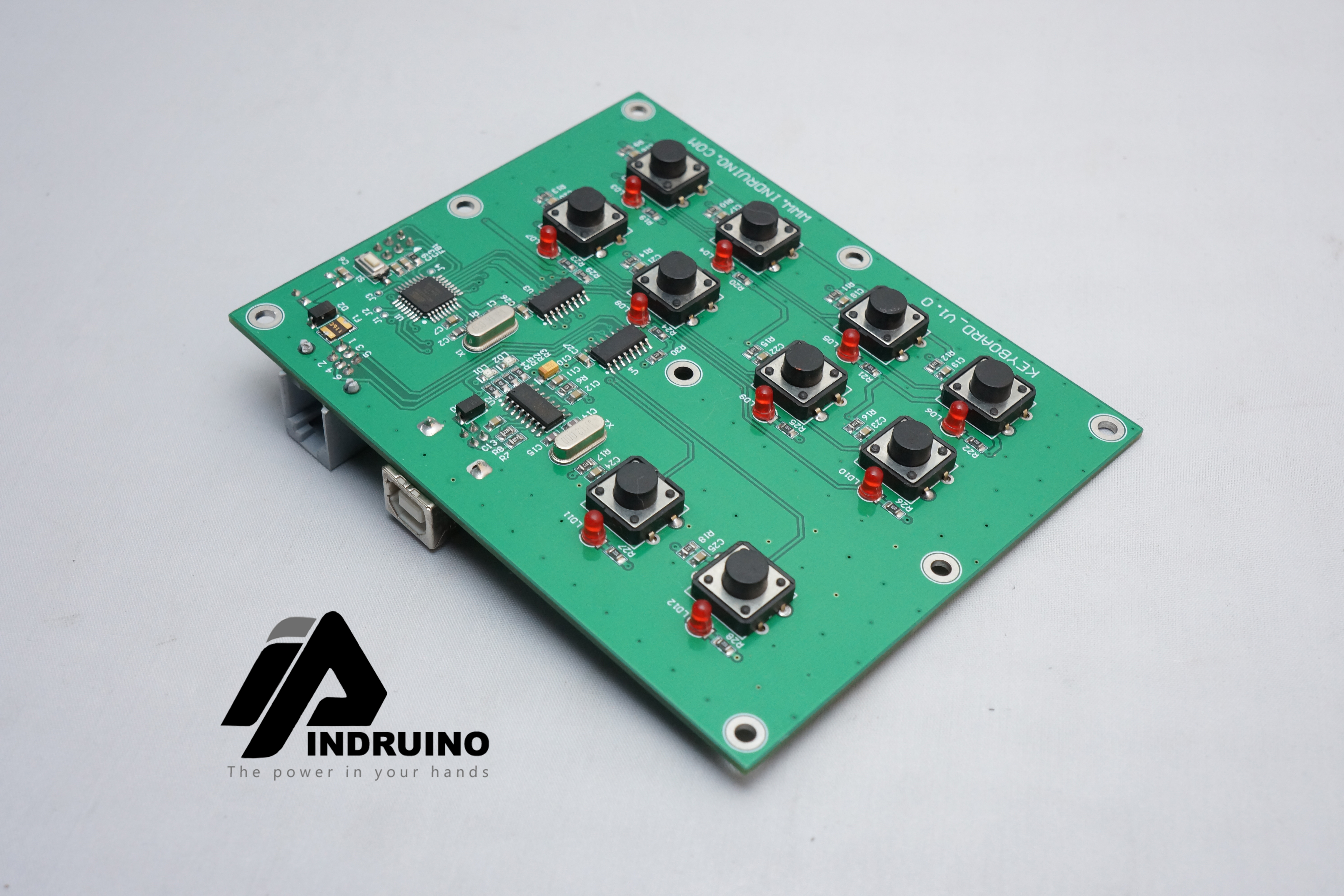

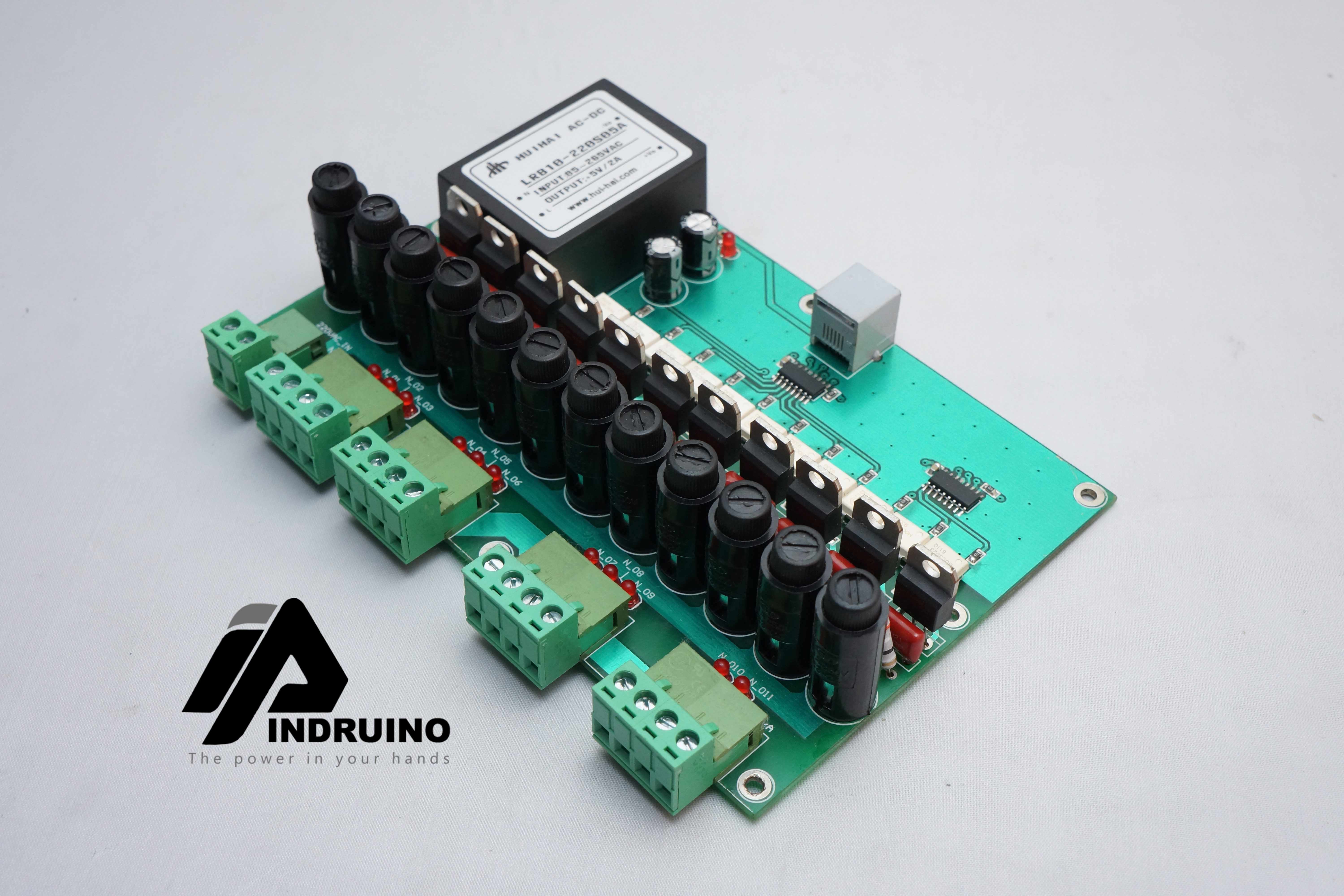

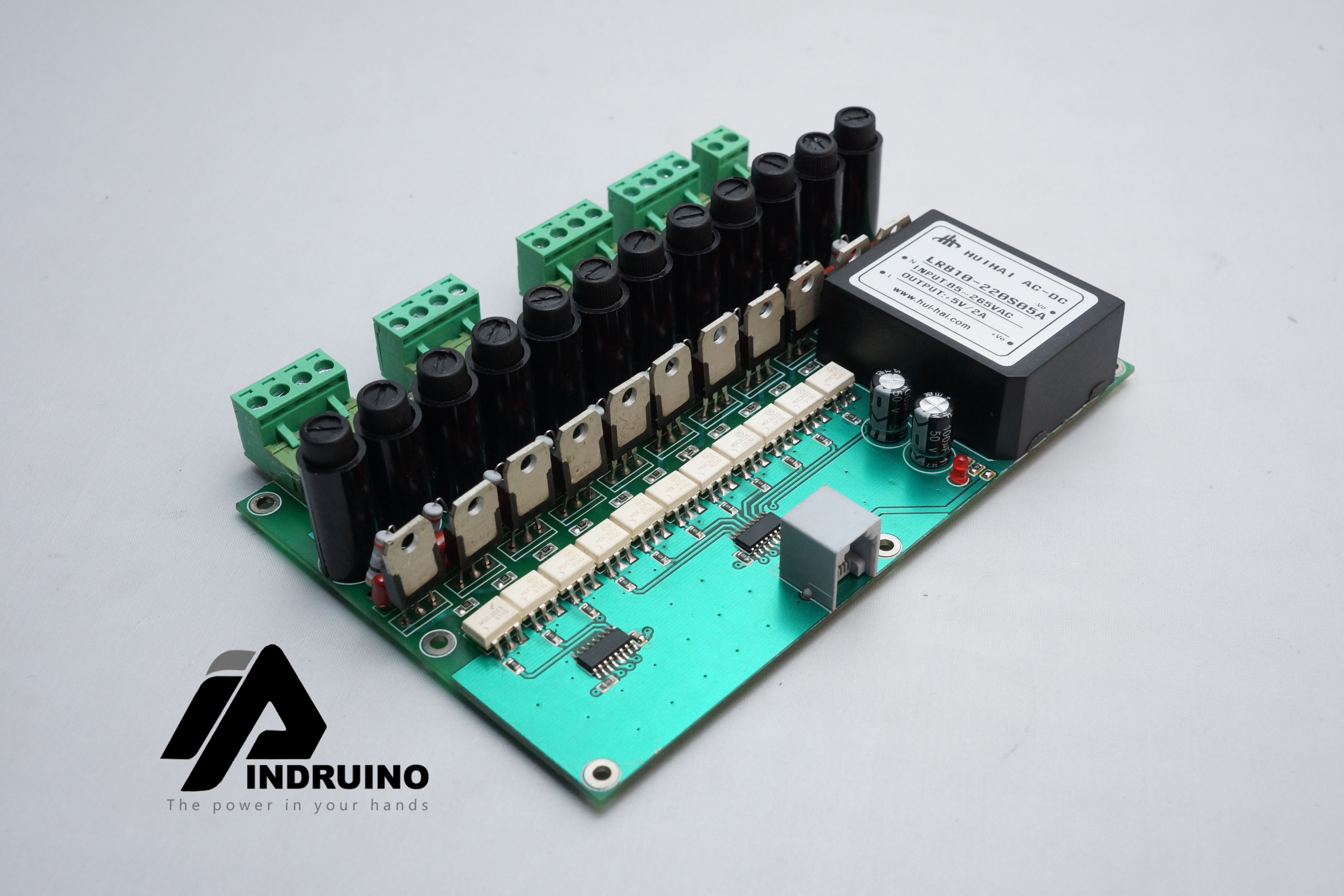

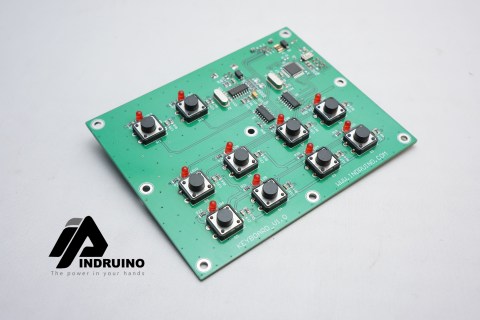

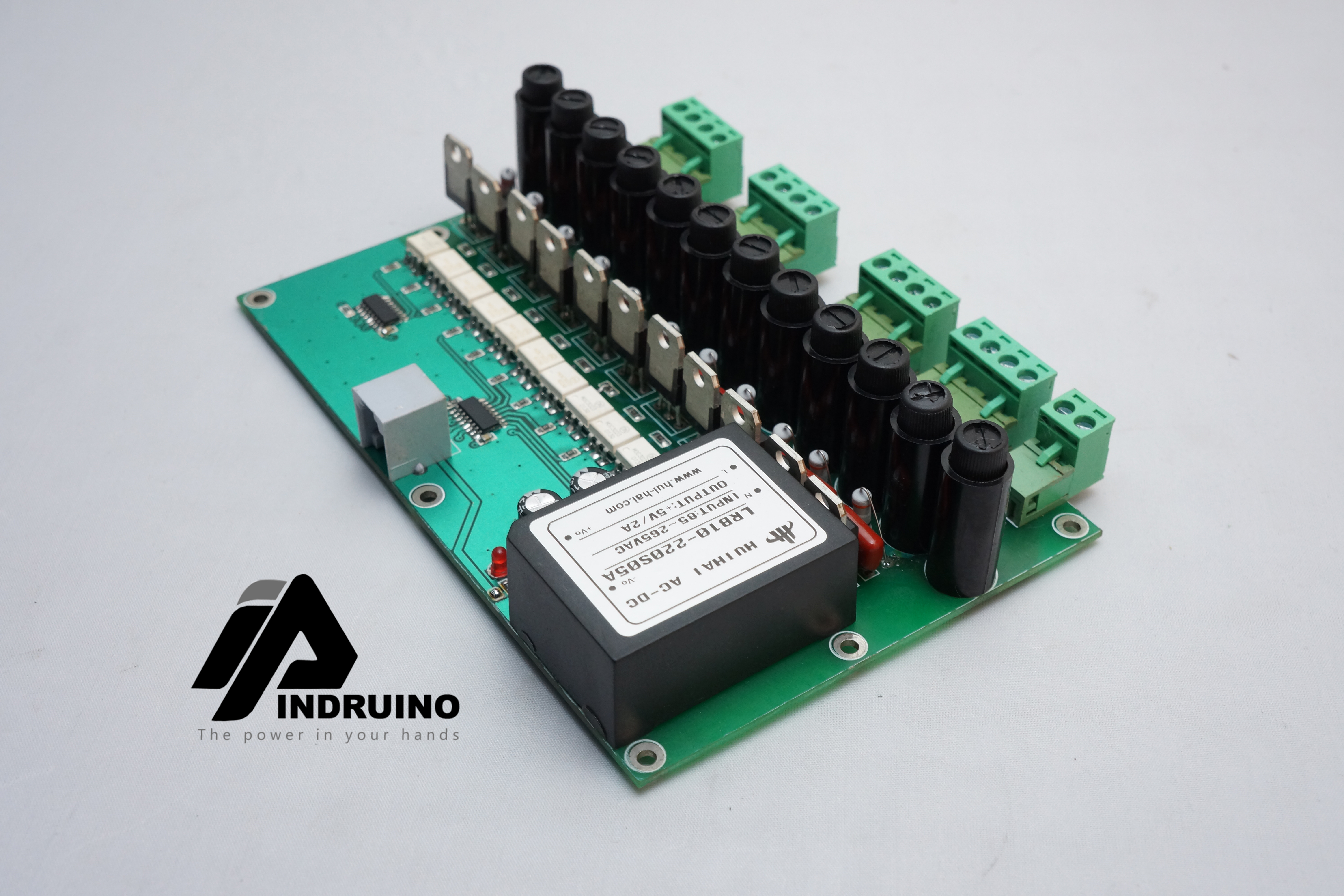

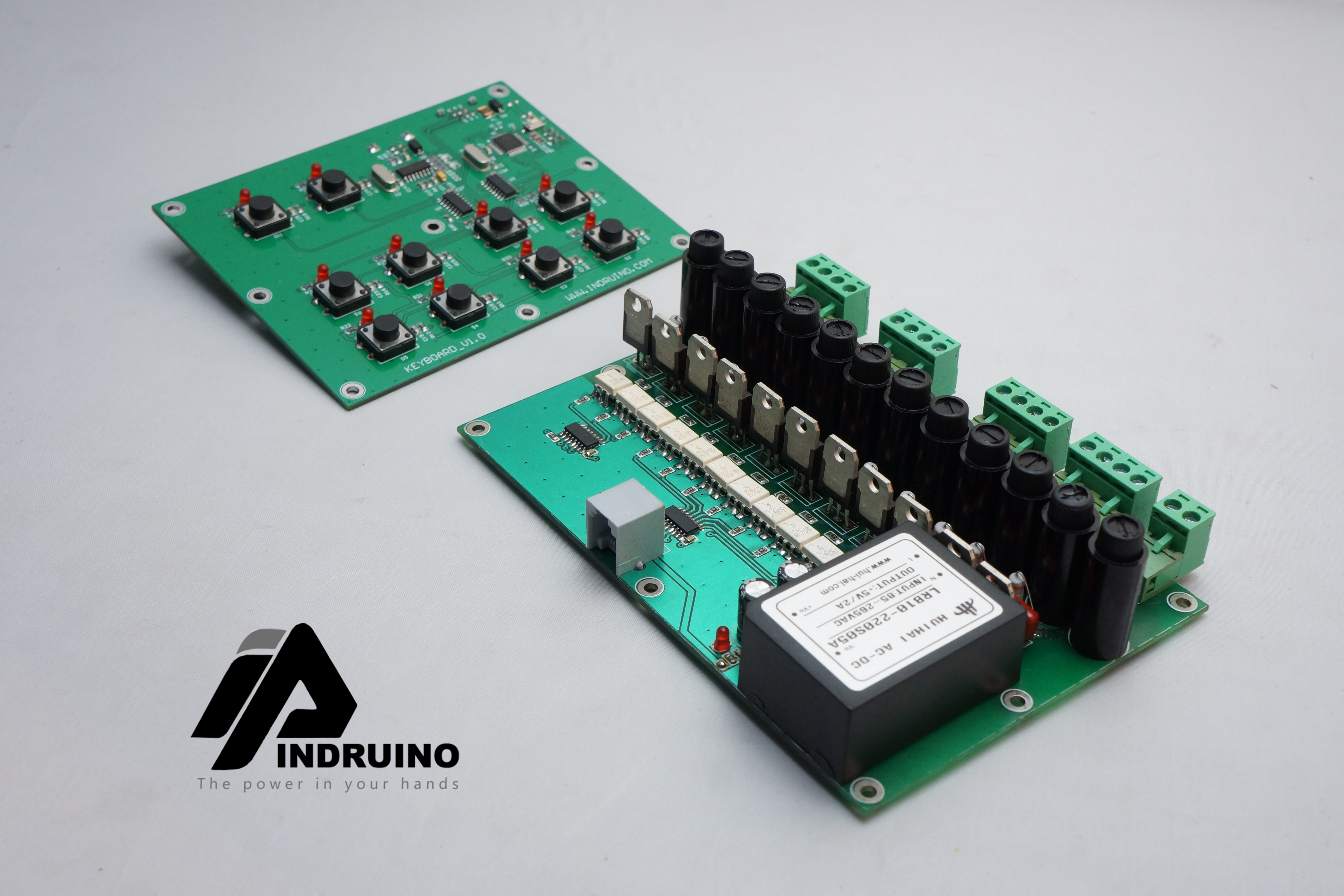

- The product includes a controller with the buttons interface and led lights to display the opening and closing status of the devices. Power circuit opens and closes devices using voltage 220AC.

- The product is compactly designed, has a heat sink, uses high quality AC/DC modules, has good anti-interference ability, has a fuse to protect against overcurrent, short circuit, and has LED status lights.

TECHNICAL SPECIFICATIONS

- Input voltage: 220VDC _Output voltage: 5VDC/2A isolated (10W)

- Working temperature: -10 to 85 degrees Celsius

- With fuse for overcurrent and short circuit protection

- Number of buttons: 10 buttons

- Number of triac outputs: 11 outputs

- Using plugable dominoes, convenient to install or remove

- There are 4 holes for M3 screws to fix the circuit board

- Size of push button board: 121 x 97mm

- Size of power board: 152 x 100mm
