UART TO RS485 CONVERTER ISOLATED MODULE

UART TO RS485 CONVERTER ISOLATED MODULE

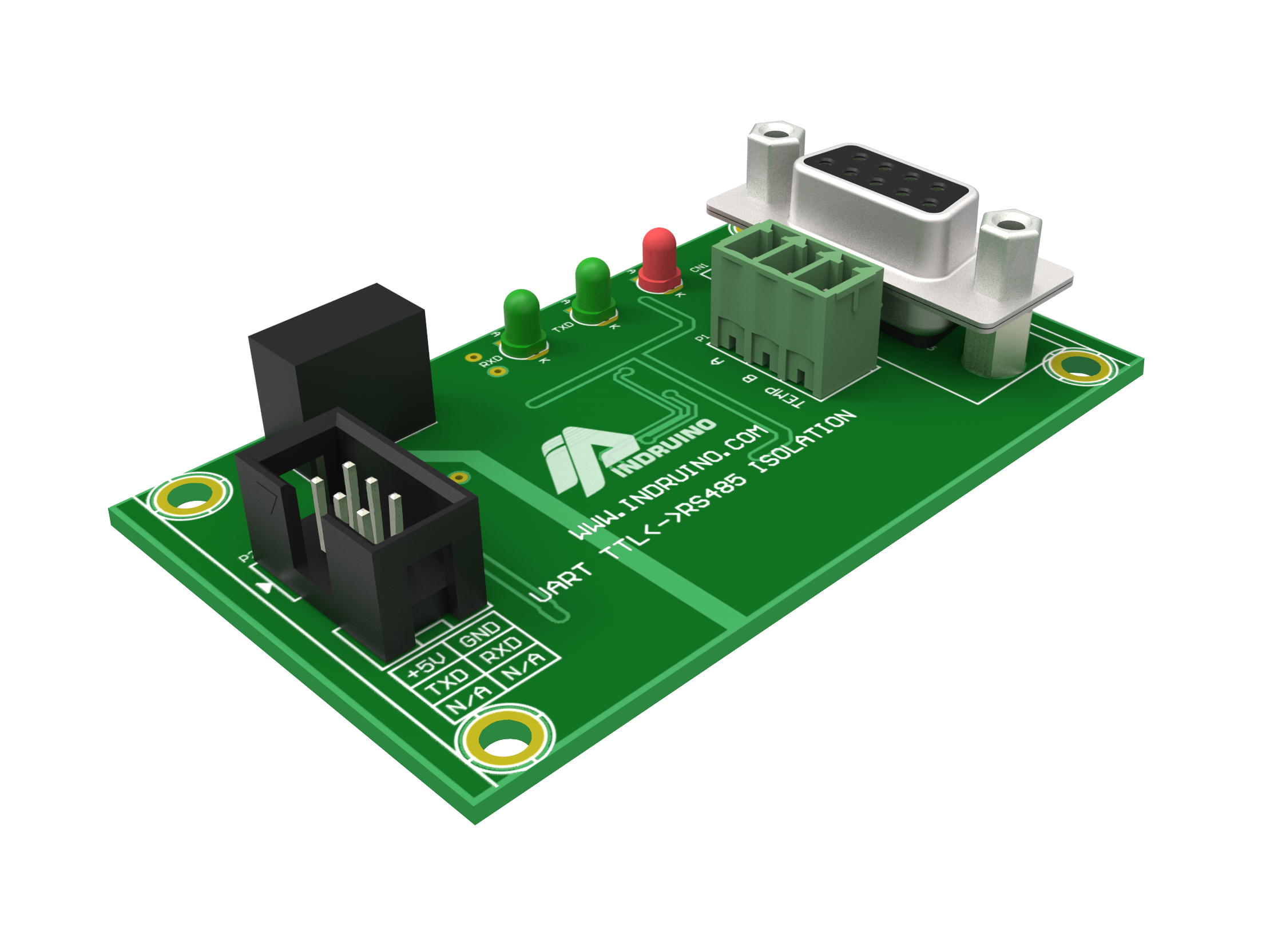

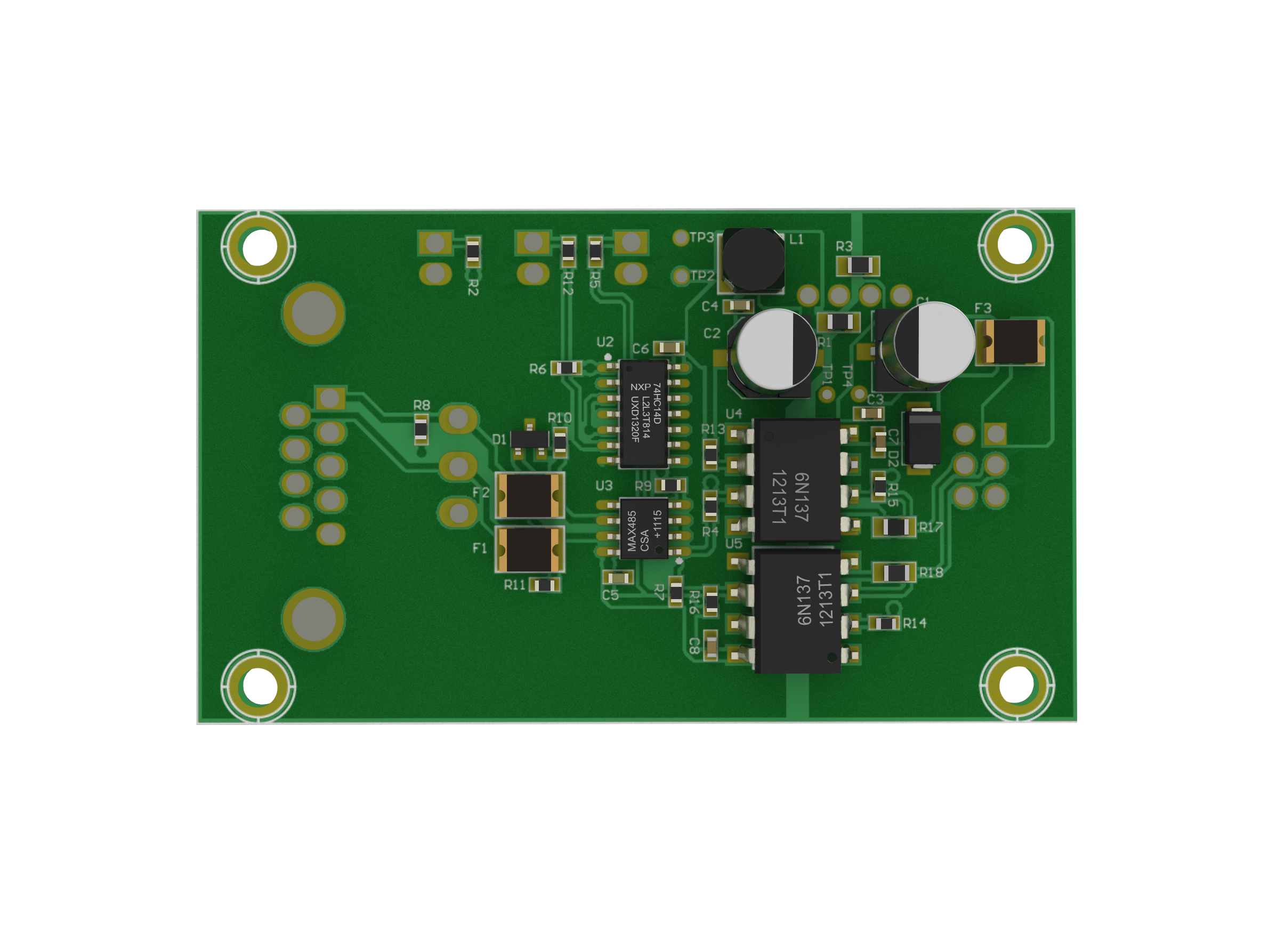

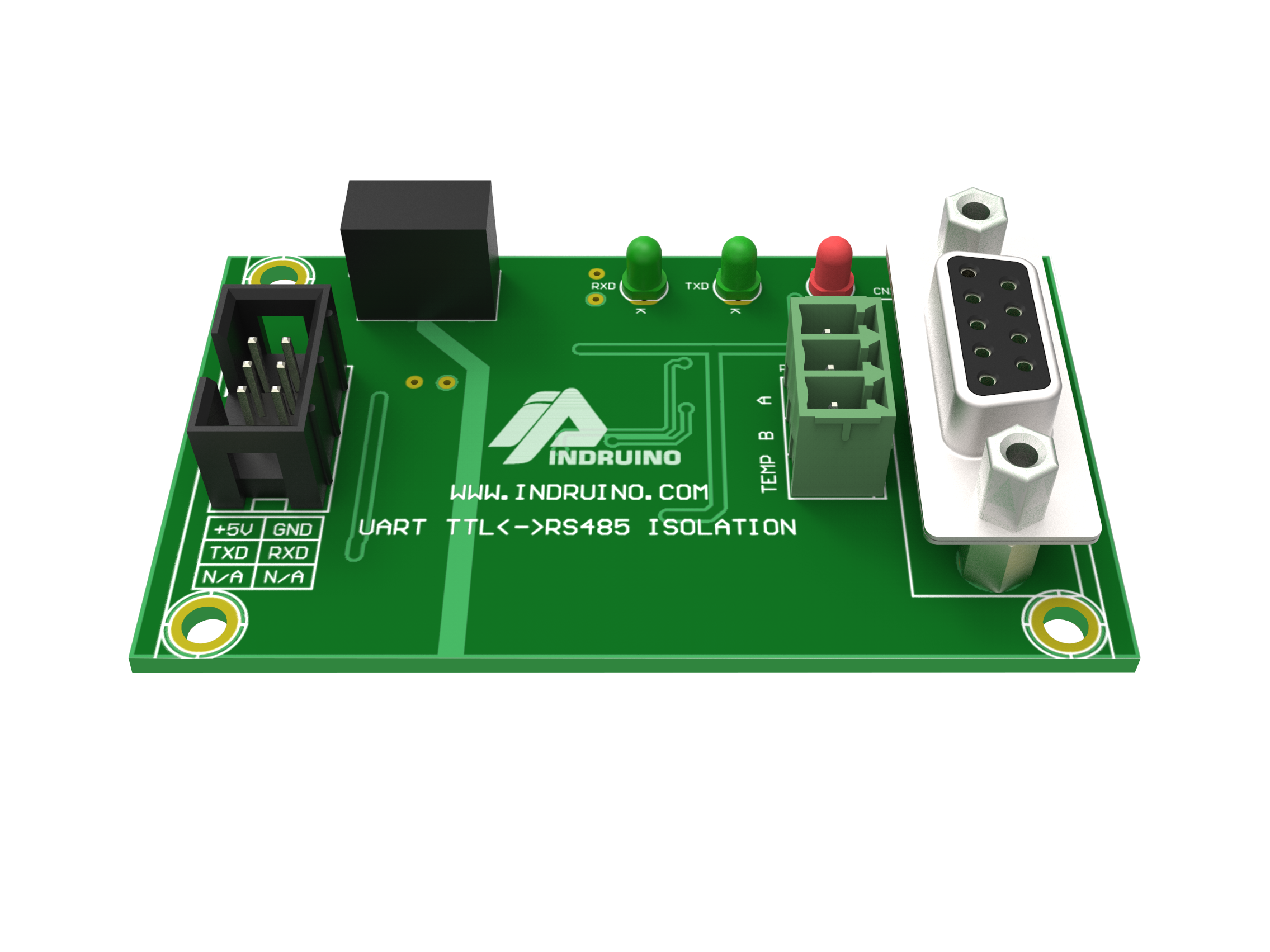

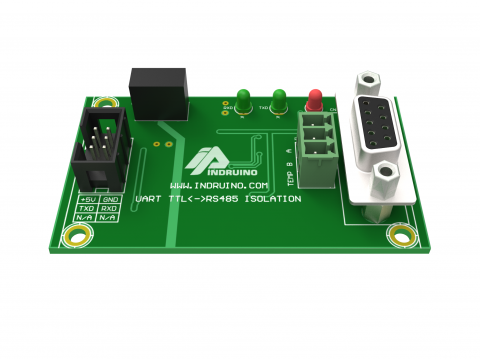

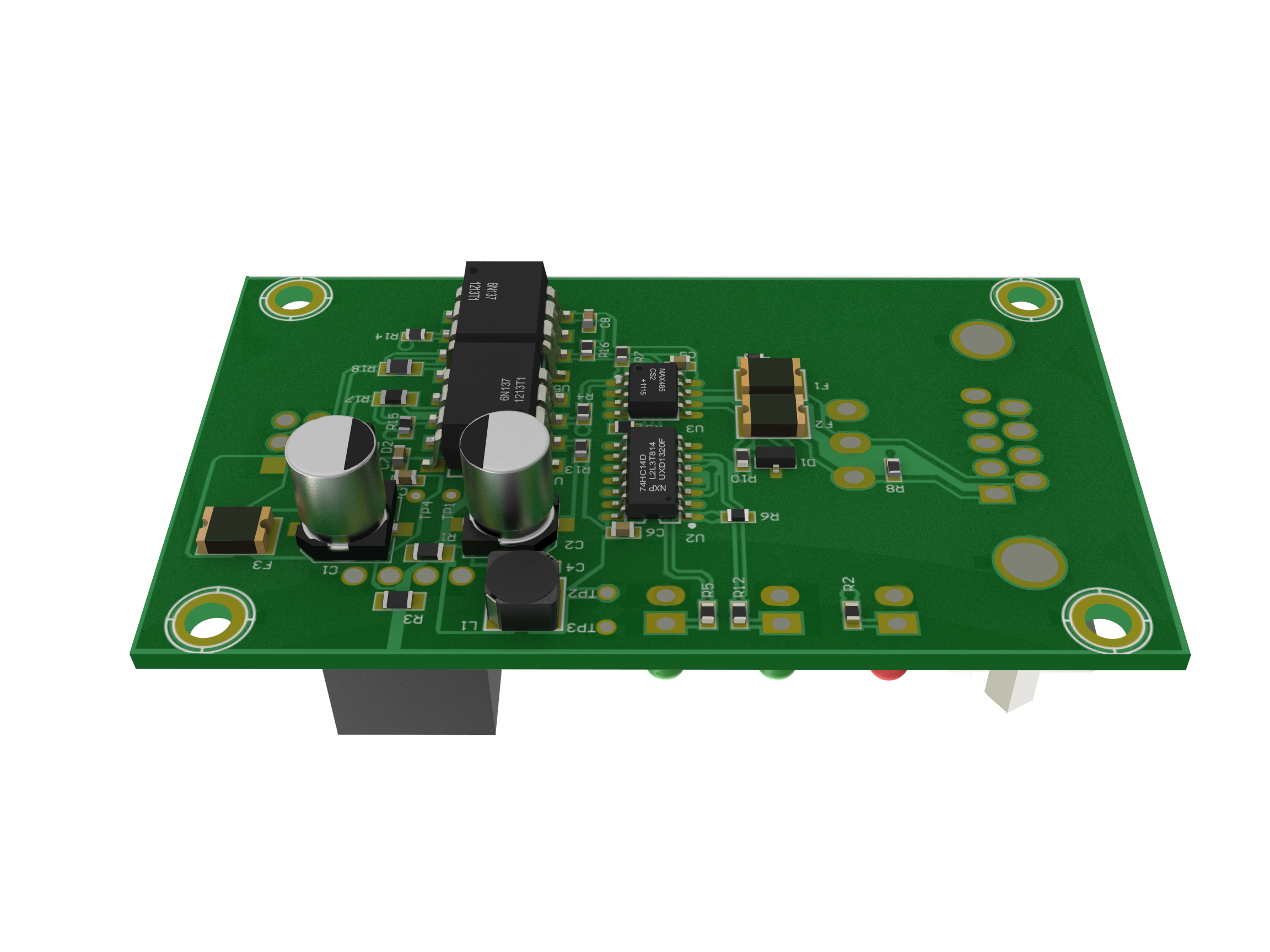

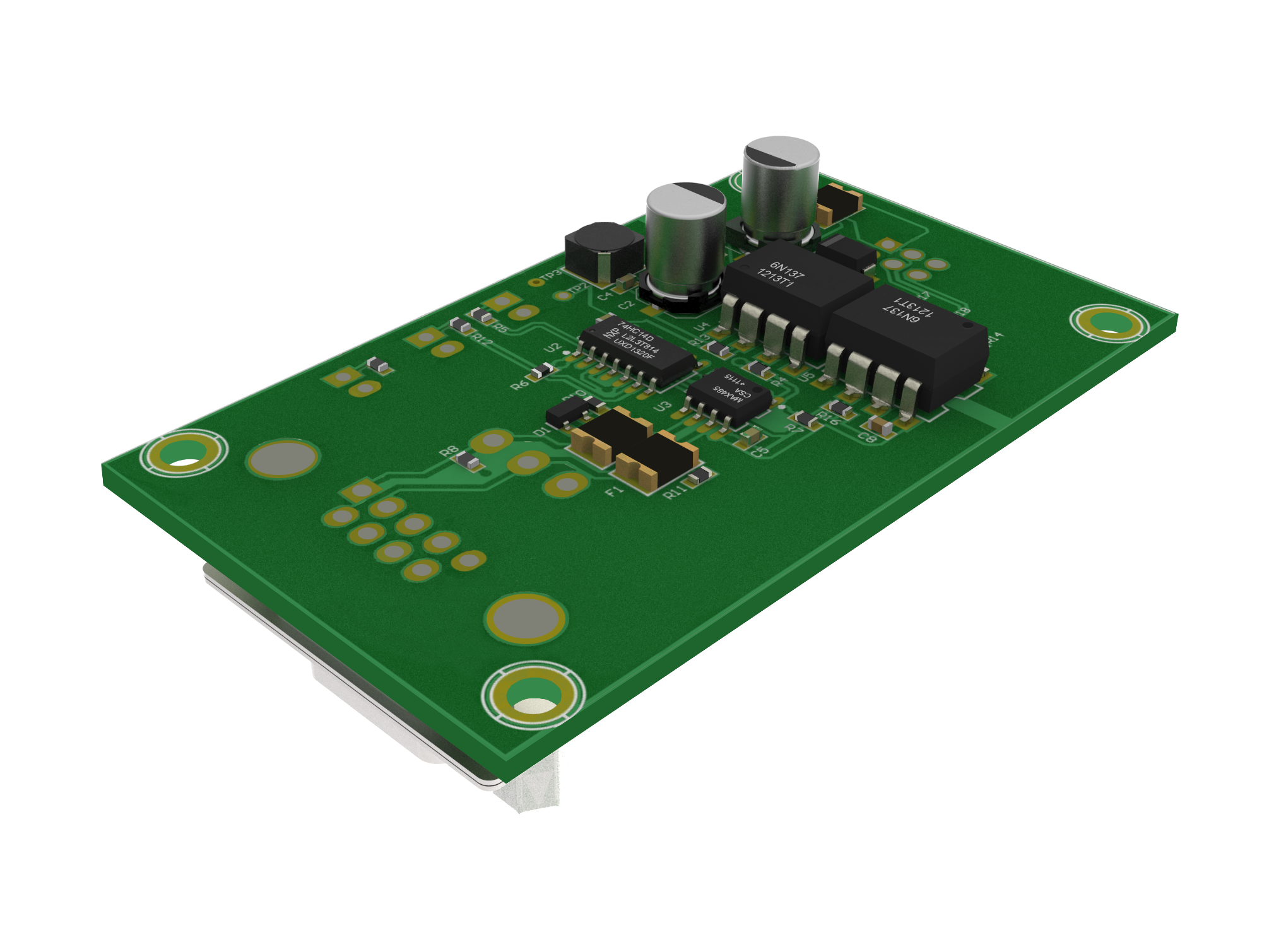

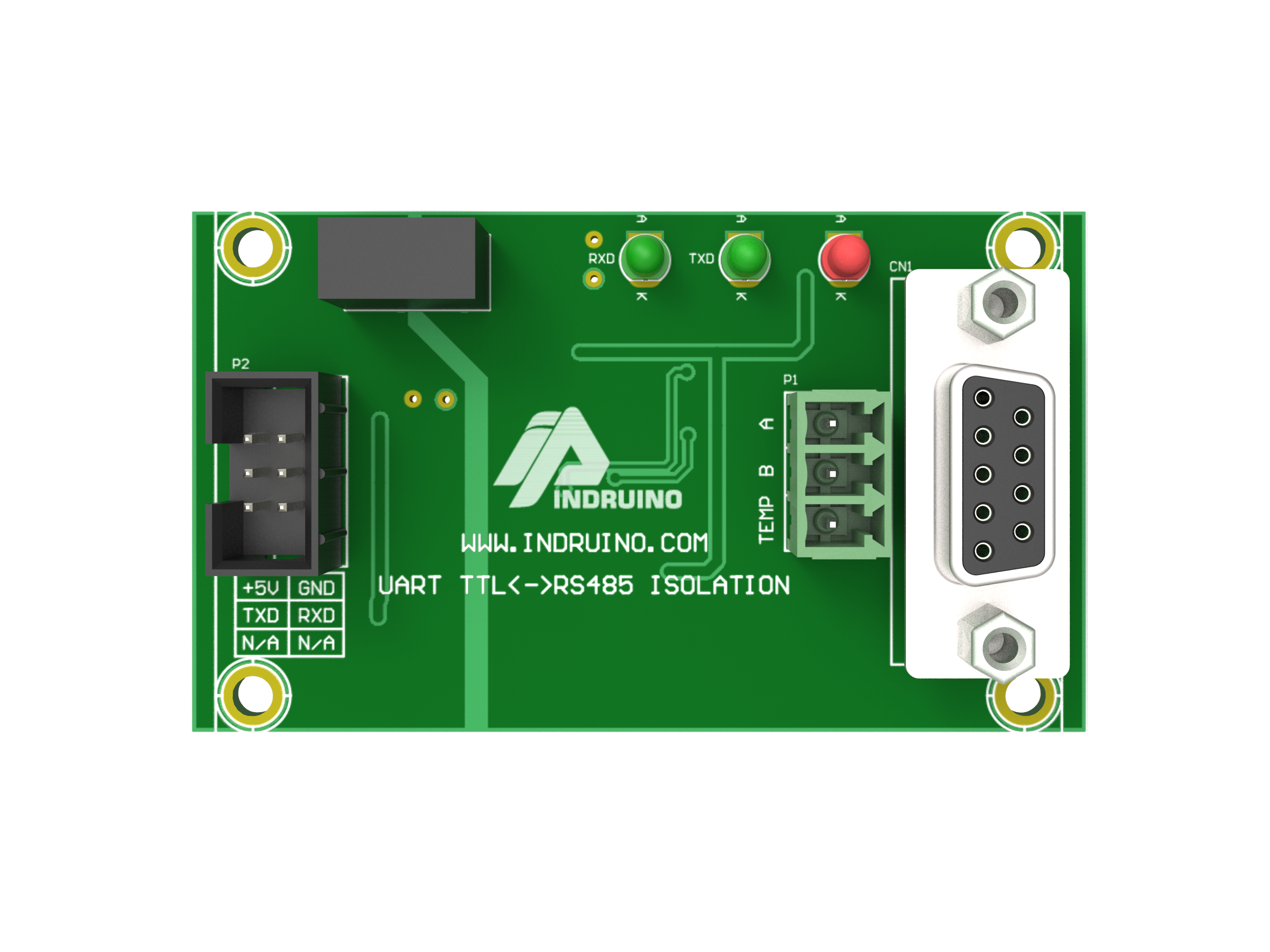

This is a isolated serial TTL to RS485 module, convert RS485 data to serial UART by using opto for isolation. DC/DC isolation power for better noise cancelation and stability.

Key features:

- Converting RS485 to UART and vice versa.

- Opto isolation and DC/DC isolation.

- ESD protection.

- DB9 connector and IDC 3x2

- Status led indicators.

- Small size, easy to intergrated into the system.

Technical Specifications :

- Power supply: 5 VDC

- Max current: 500 mA

- Interface: RS485, UART

- Max baudrate: 115200 bps

- Duplex: Half

- Isolation voltage : 1500Vrms

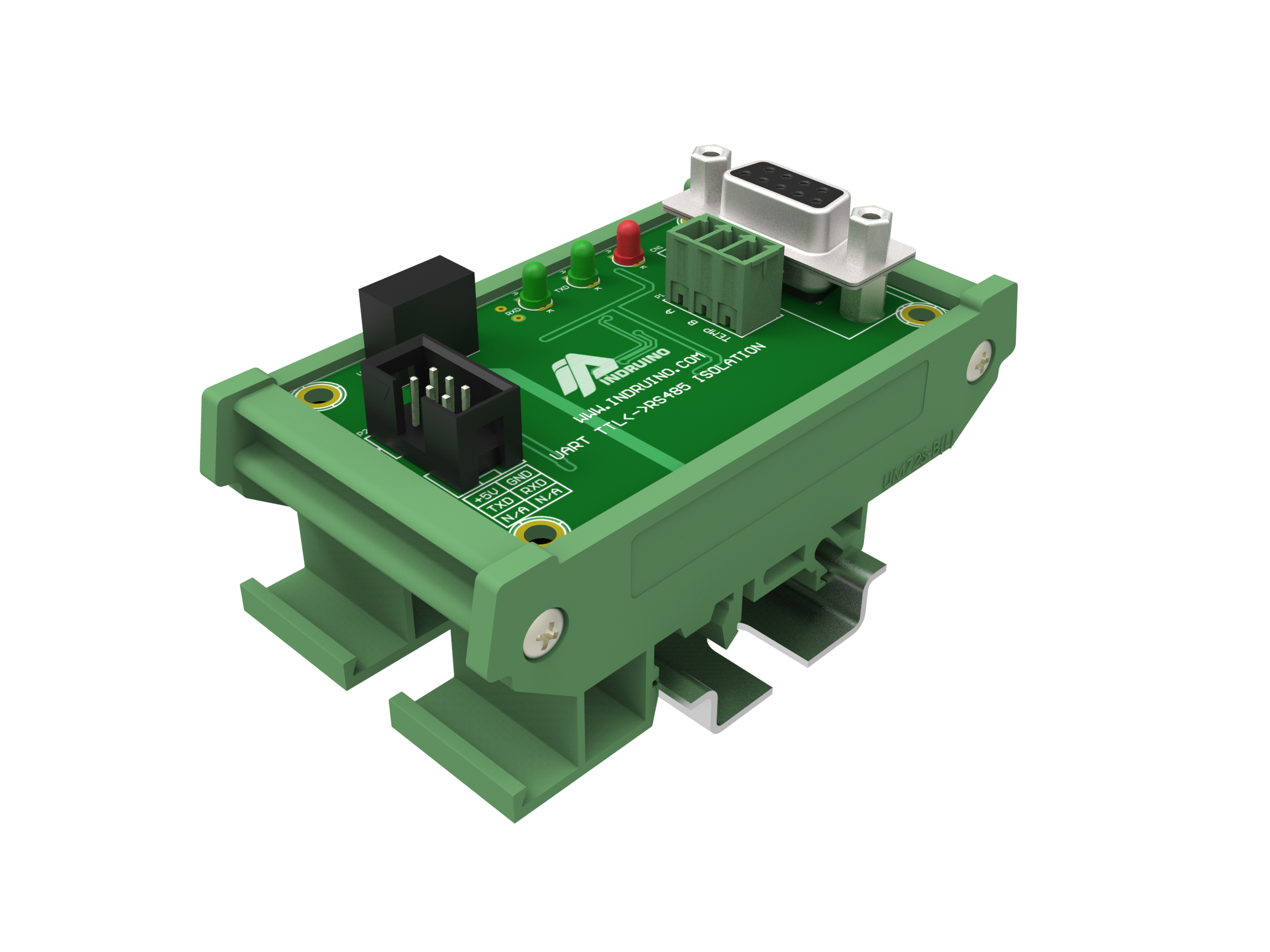

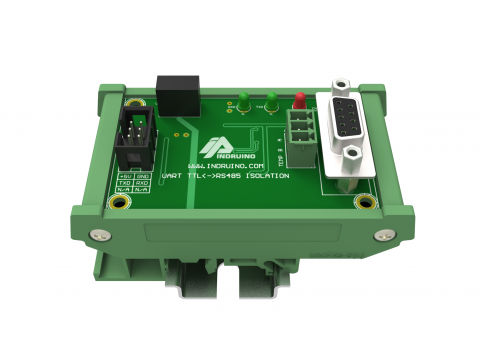

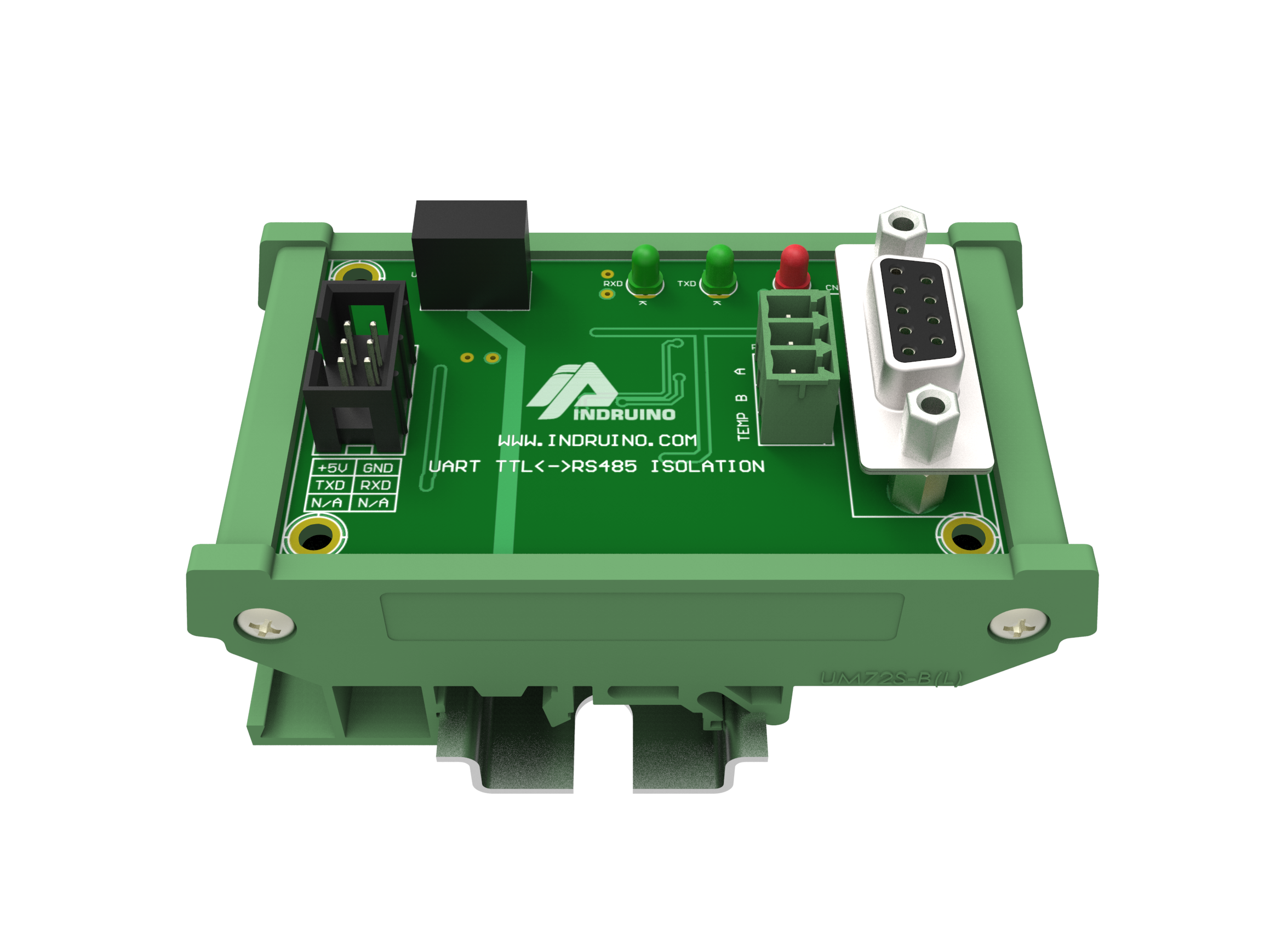

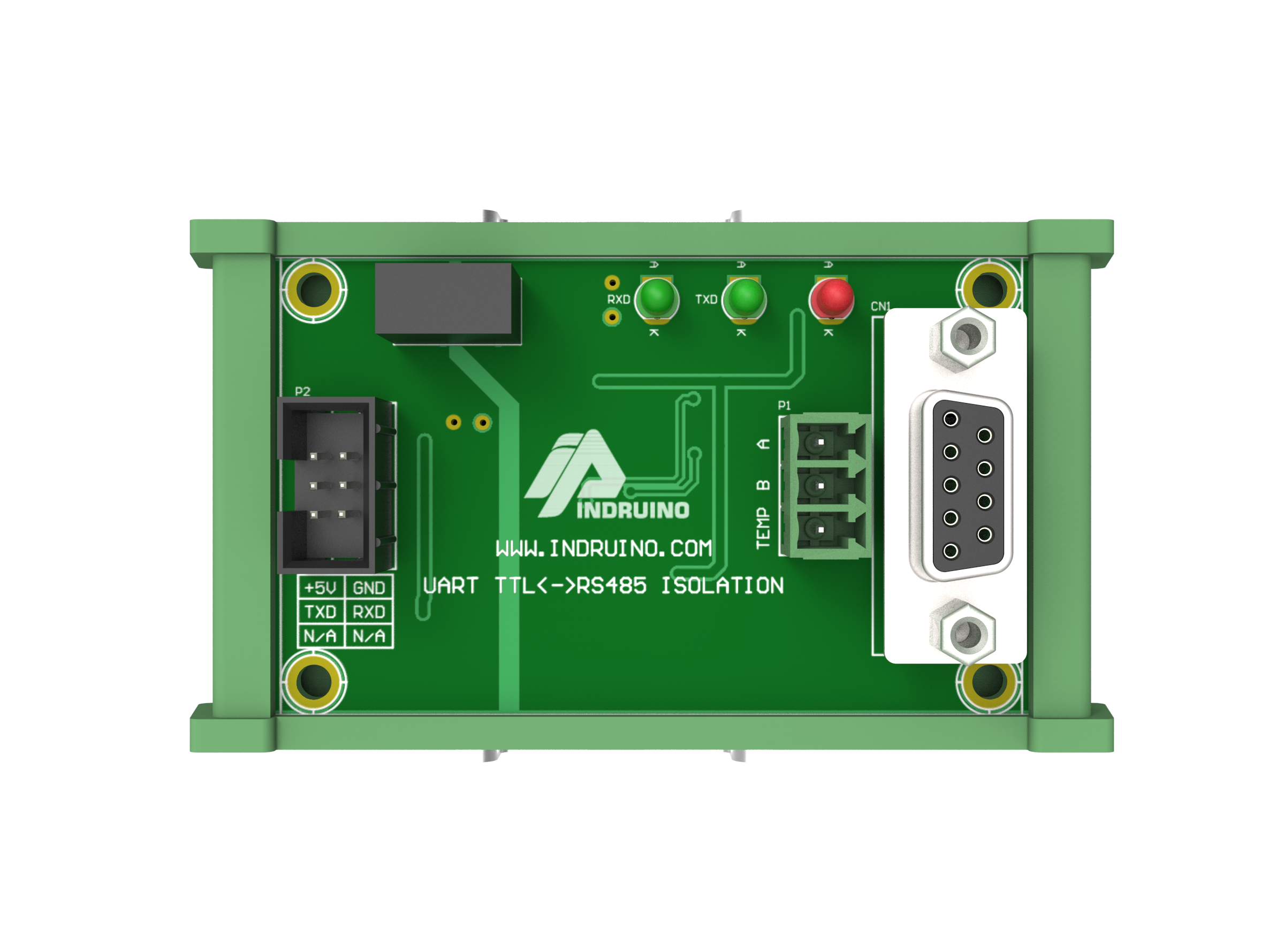

- Assembly method : Dinrail

- Dimension: 72x42x20 mm

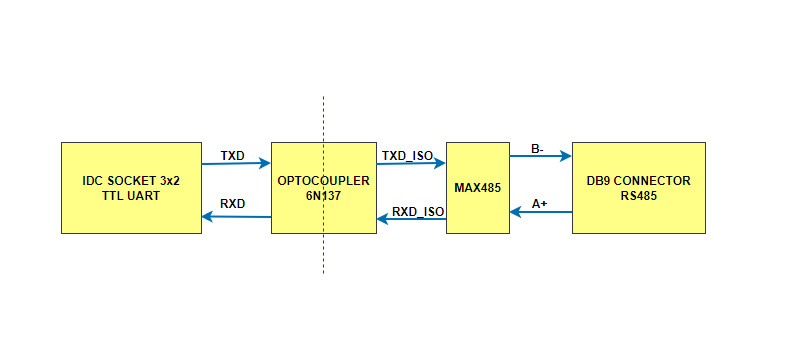

Block Diagram:

Download: https://drive.google.com/file/d/1-iZFvna9TdHSCNq2uvl87CJuwdM510Nh/view?usp=sharing
