UART TO RS232 CONVERTER ISOLATED MODULE

UART TO RS232 CONVERTER ISOLATED MODULE

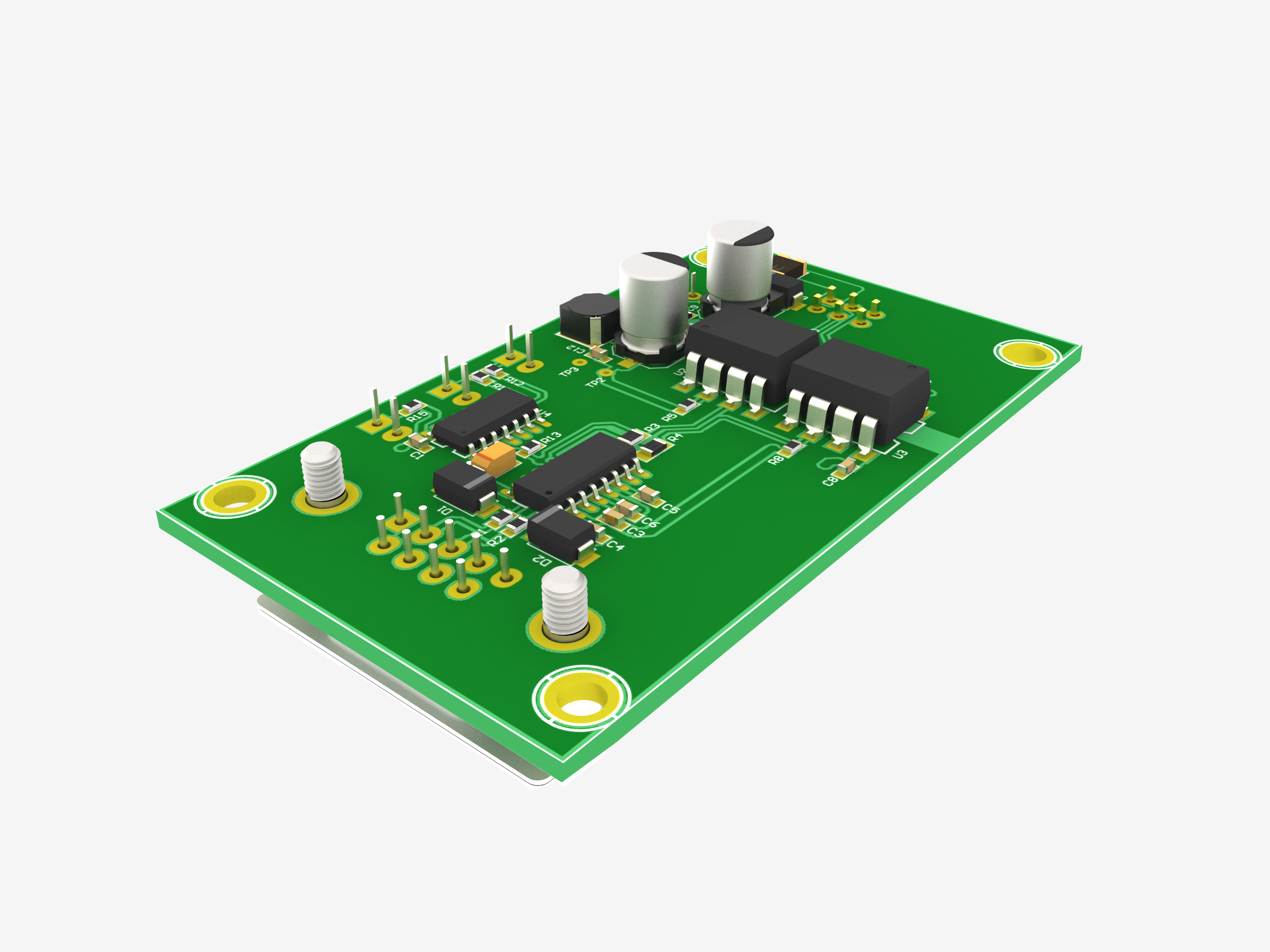

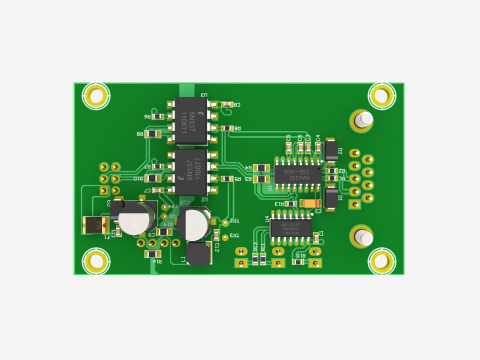

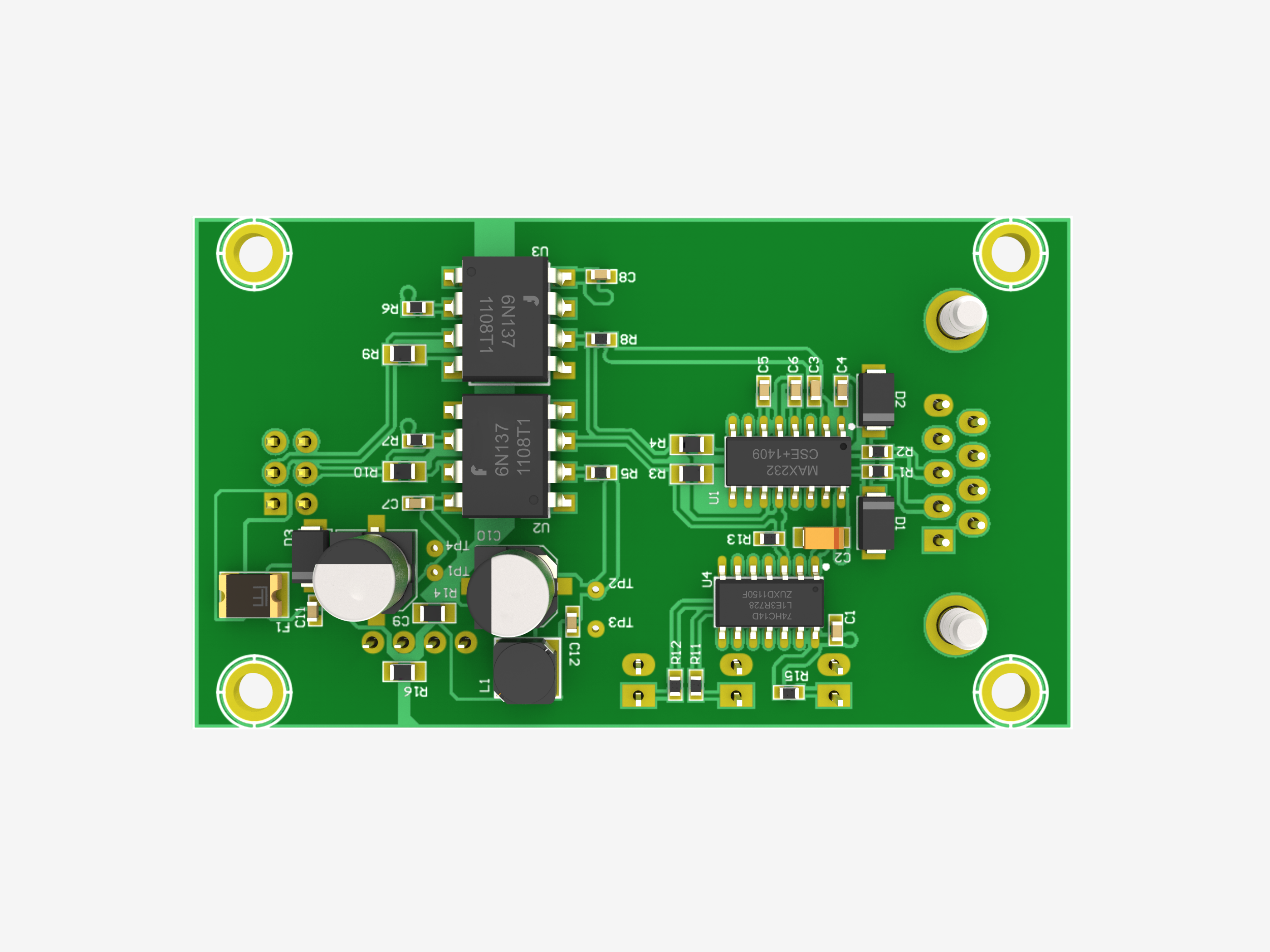

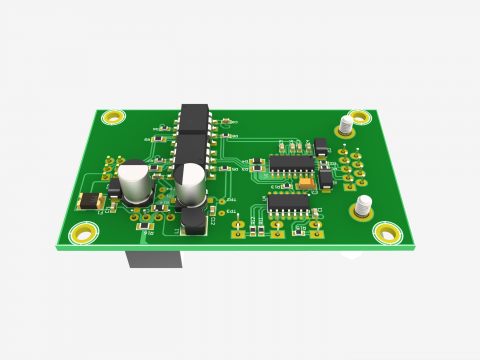

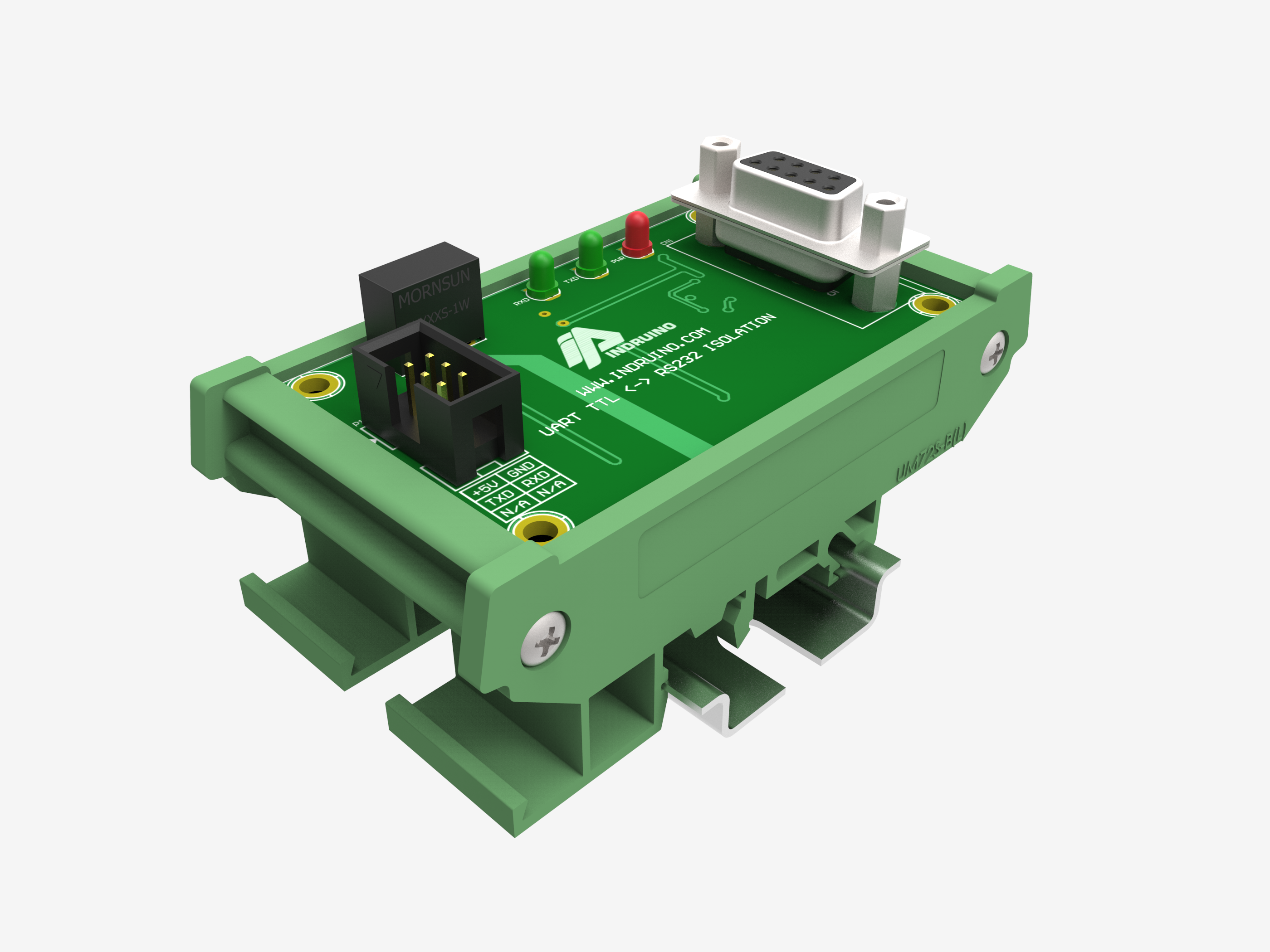

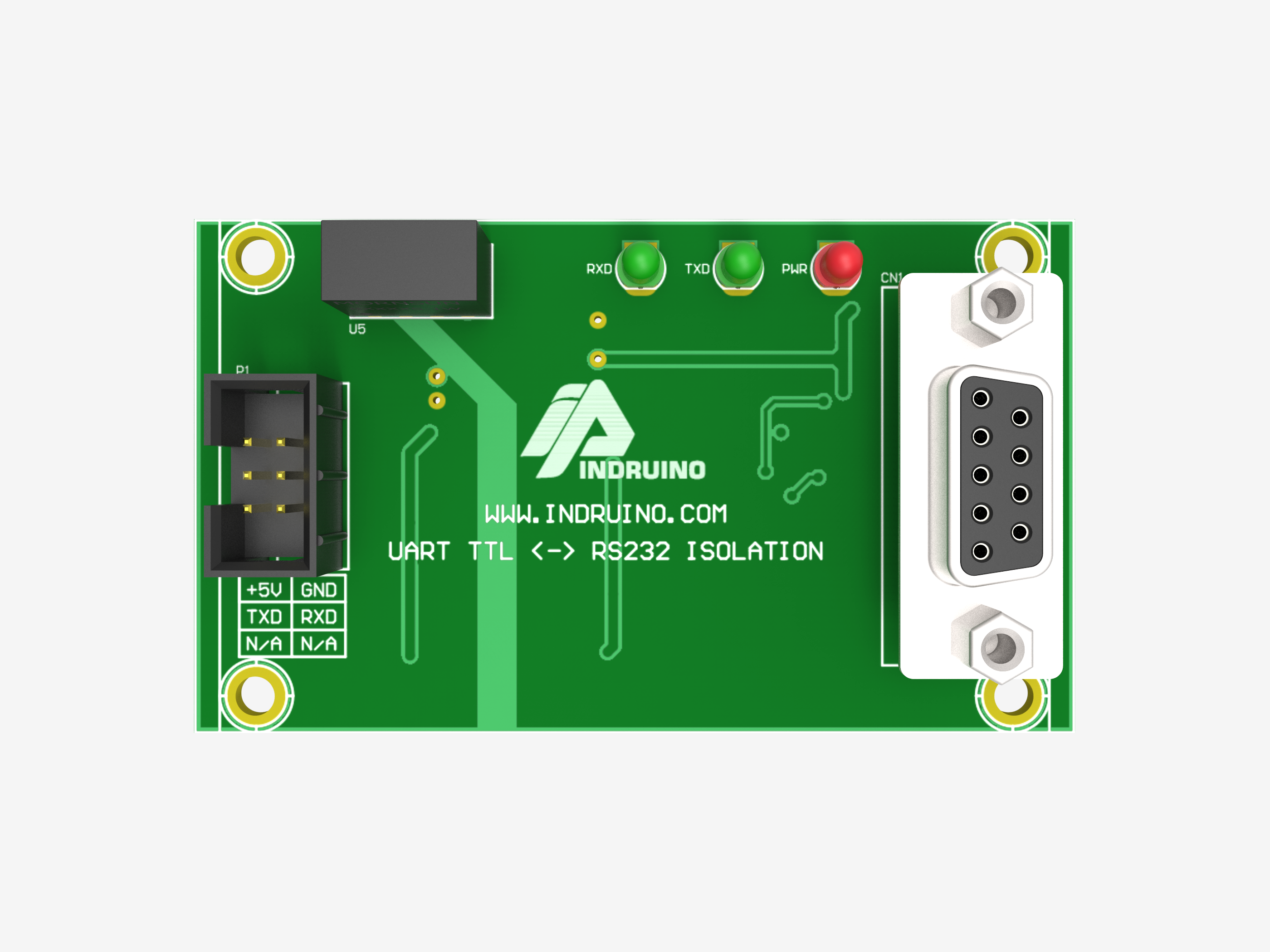

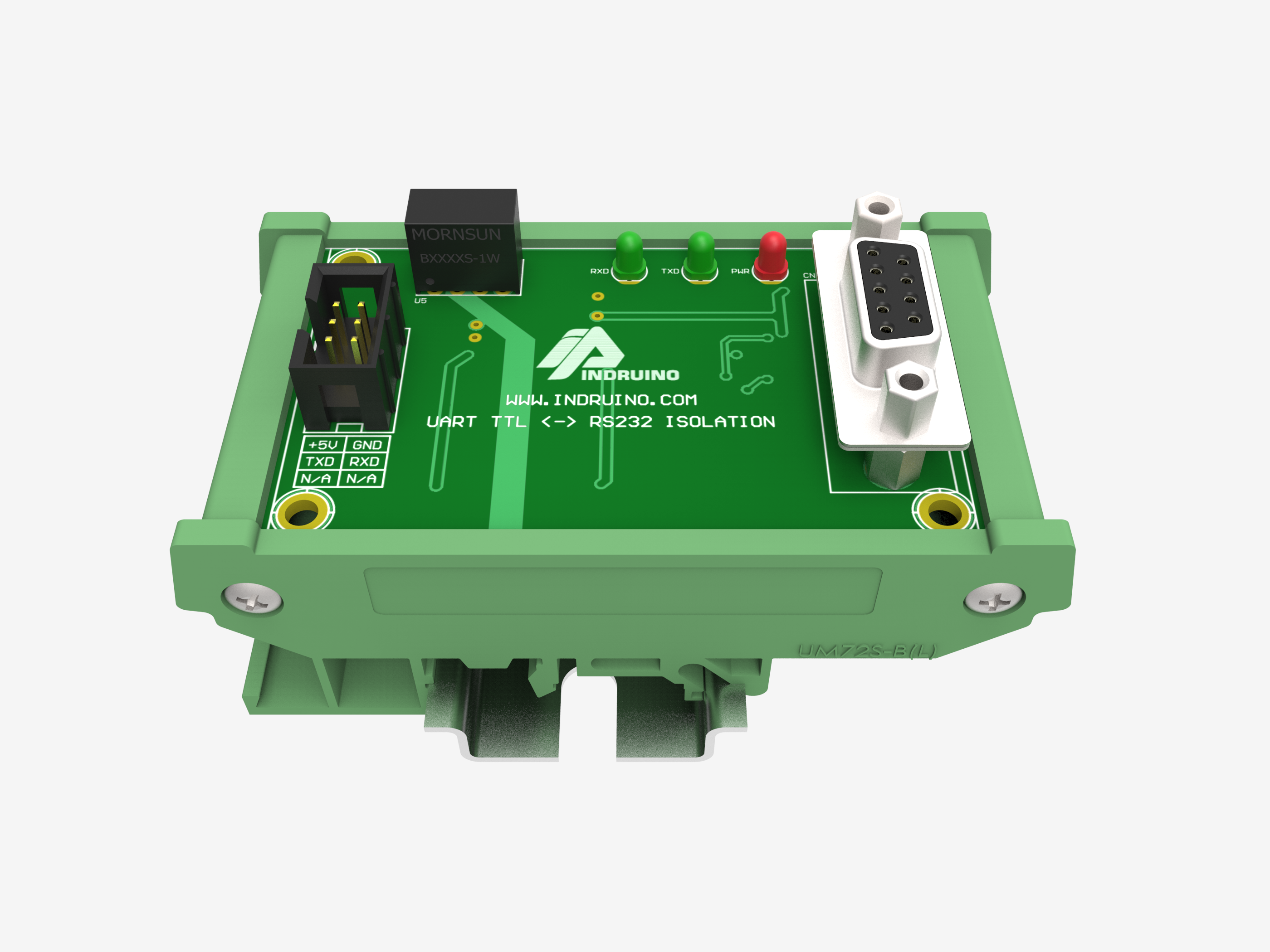

This is a isolated serial TTL to RS232 module, converting RS232 data to serial UART.

Key features:

- Converting RS232 to UART and vice versa.

- Opto isolation and DC/DC isolation.

- ESD protection.

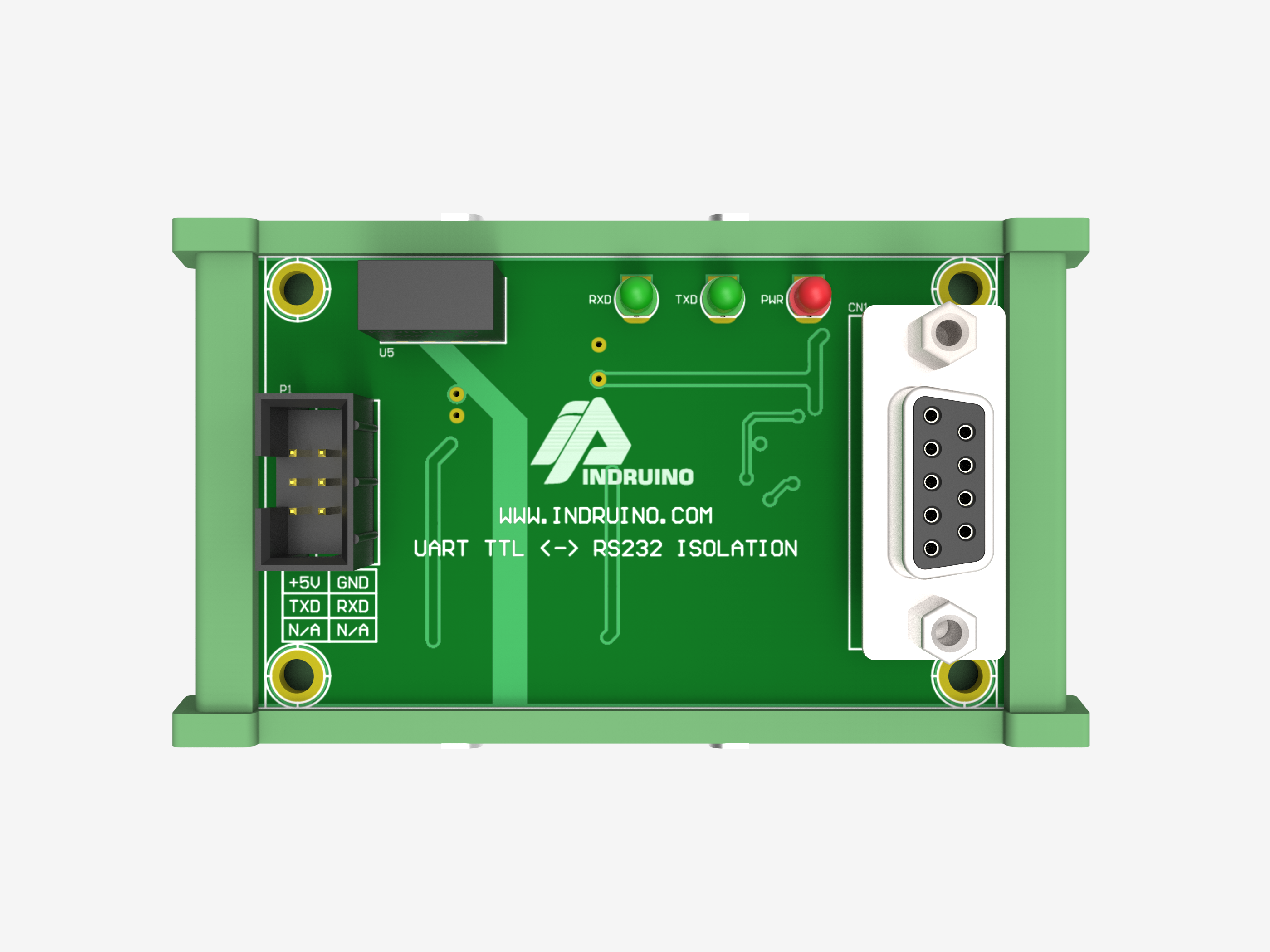

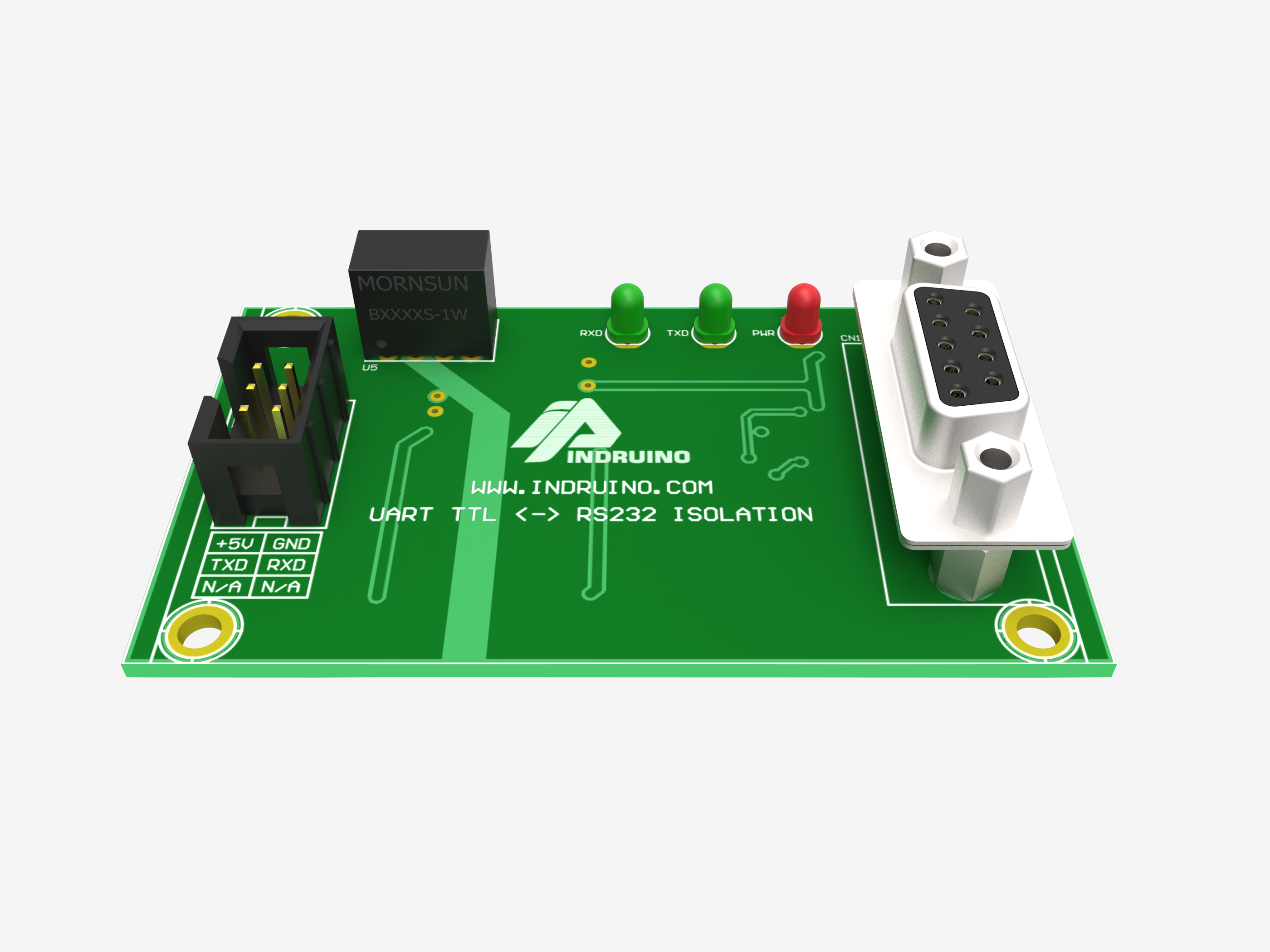

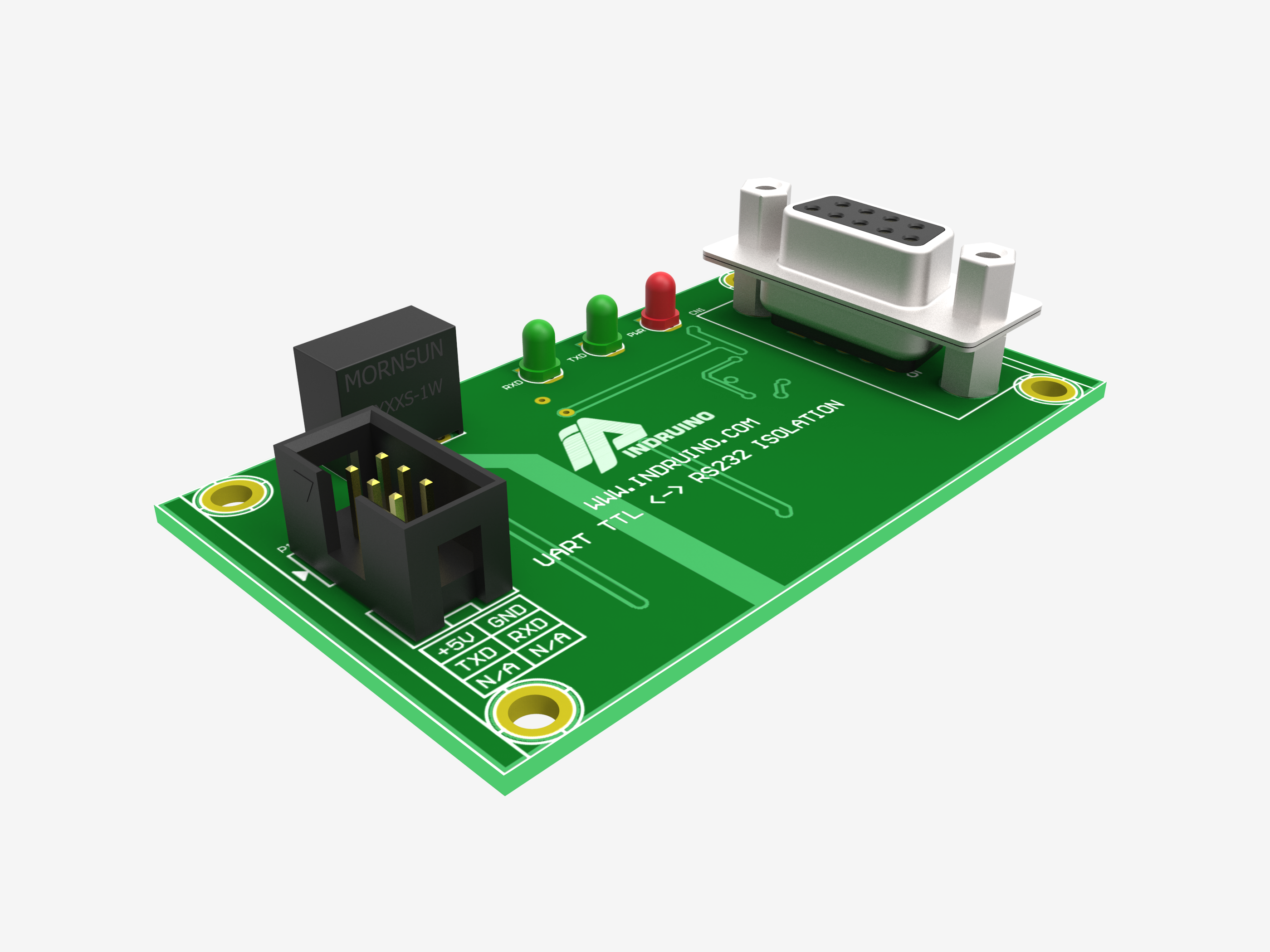

- DB9 connector and IDC 3x2

- Status led indicators.

- Small size, easy to intergrated into the system.

Technical Specifications :

- Power supply: 5 VDC

- Max current: 500 mA

- Interface: RS232, UART

- Max baudrate: 115200 bps

- Duplex: Full

- Isolation voltage : 1500Vrms

- Assembly method : Dinrail

- Dimension: 72x42x20 mm

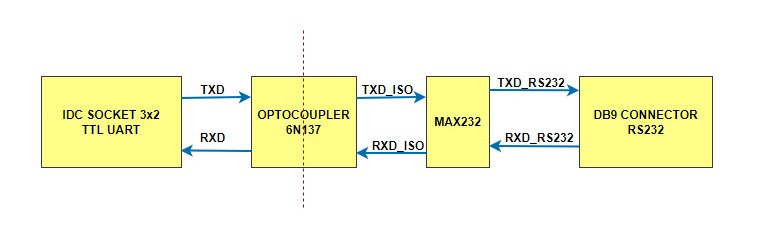

Block Diagram:

Download: https://drive.google.com/file/d/1yMFYOla8o6_wENzYMsTQTt7Q6QtD7s6J/view?usp=sharing
