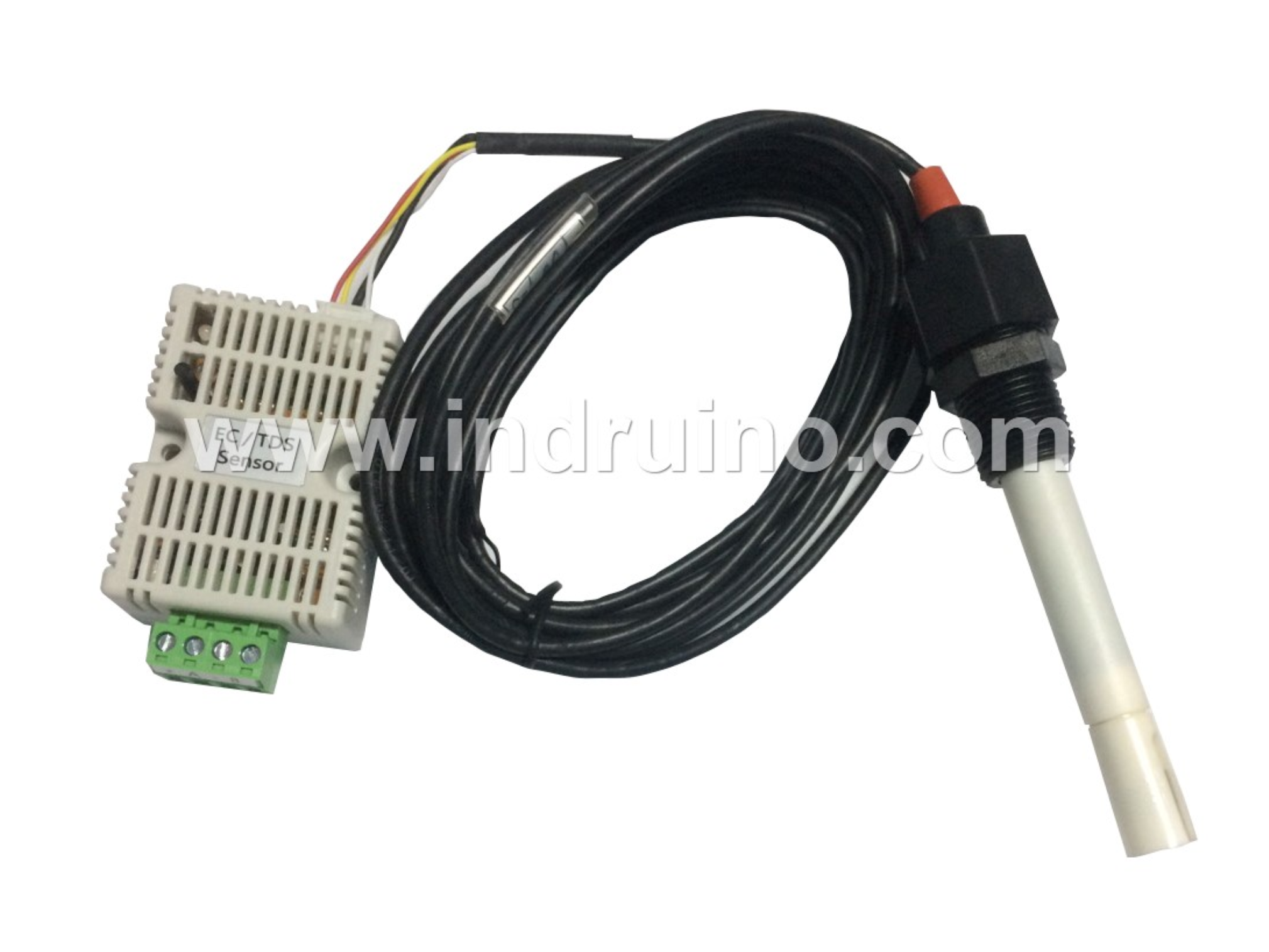

EC/TDS Sensor with RS484 Interface

EC/TDS Sensor with RS484 Interface

1. Overview

EC-TDS transmitter with direct one-button calibration, automatic temperature compensation, good or bad electrode calibration, power failure protection, making calibration results and reservation data not lost due to shutdown or power failure, overcurrent protection, overvoltage protection, high measurement accuracy and quick response.
Small size, light weight, easy to install and maintenance, industrial standard signal output (0-5V, 0-10V, 4-20MA, Modbus RTU485) maximizes the need to connect to many Real-time monitoring devices. This tool is connected to perform online monitoring of EC and TDS status.

2. Application
This product is suitable for: electroplating, fermentation, food processing, waste water treatment, metallurgy, environmental protection, ect ...

TECHNICAL SPECIFICATIONS

- EC range: Option: 0-440 uS/cm, 0-4400 uS/cm, 0-44000 uS/cm

- EC accuracy: ≤±2% F.S

- TDS range: Option: 0-200PPM, 0-2000PPM, 0-20000PPM

- TDS accuracy: ≤±2% F.S

- Power supply: DC:12V～24V

- Output: DC: 0 ~ 5V or 0 ~ 10V or 4-20MA or Modbus RTU485

- Resistance:

- Capacity: <1W

- Storage condition: 10-50 ° C, 20-60% rh

- Working condition: 0℃～100℃

- Dimension: 65×46×28.5mm3
