iCB-BASIC-05

CB-BASIC-06

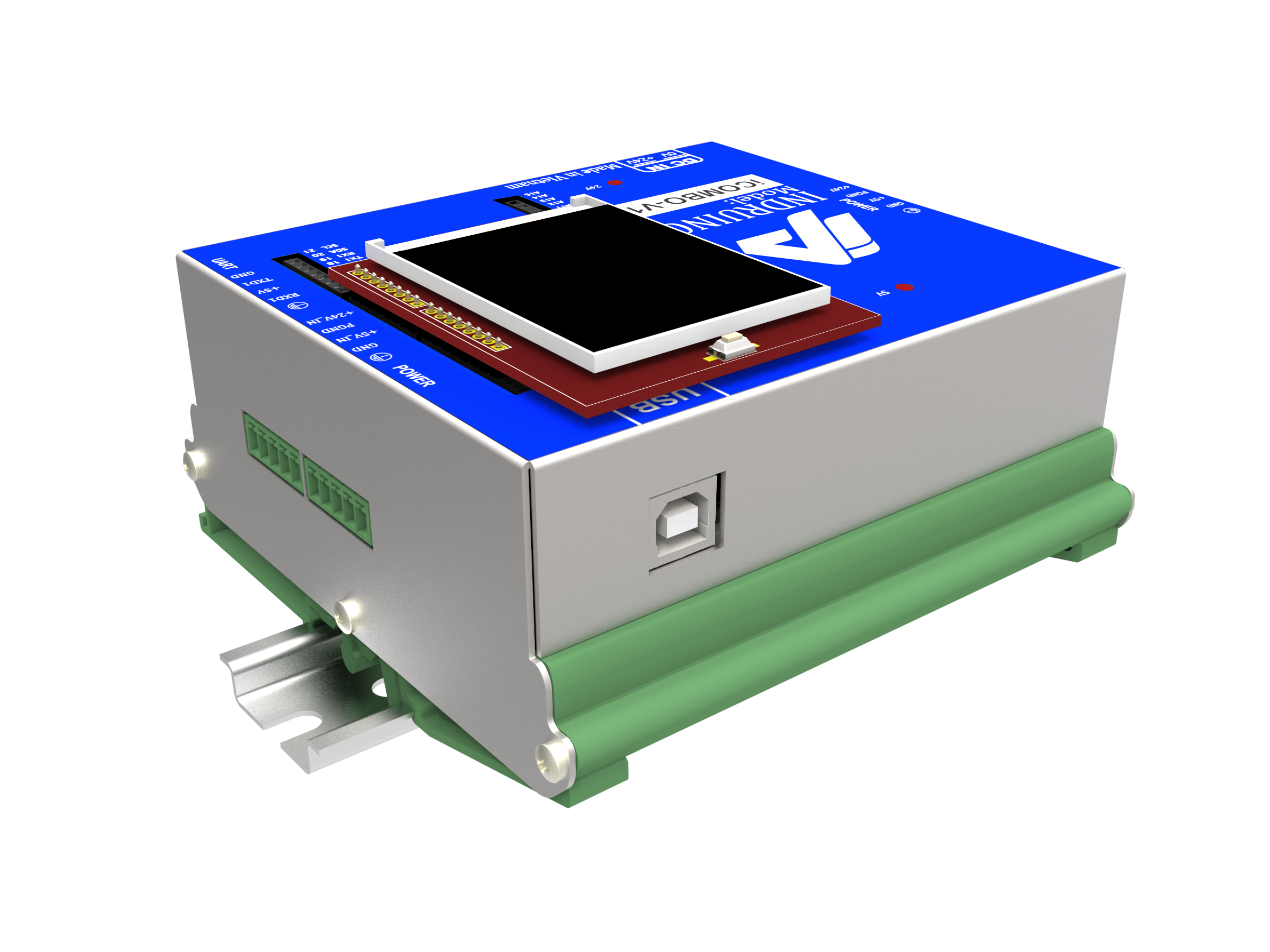

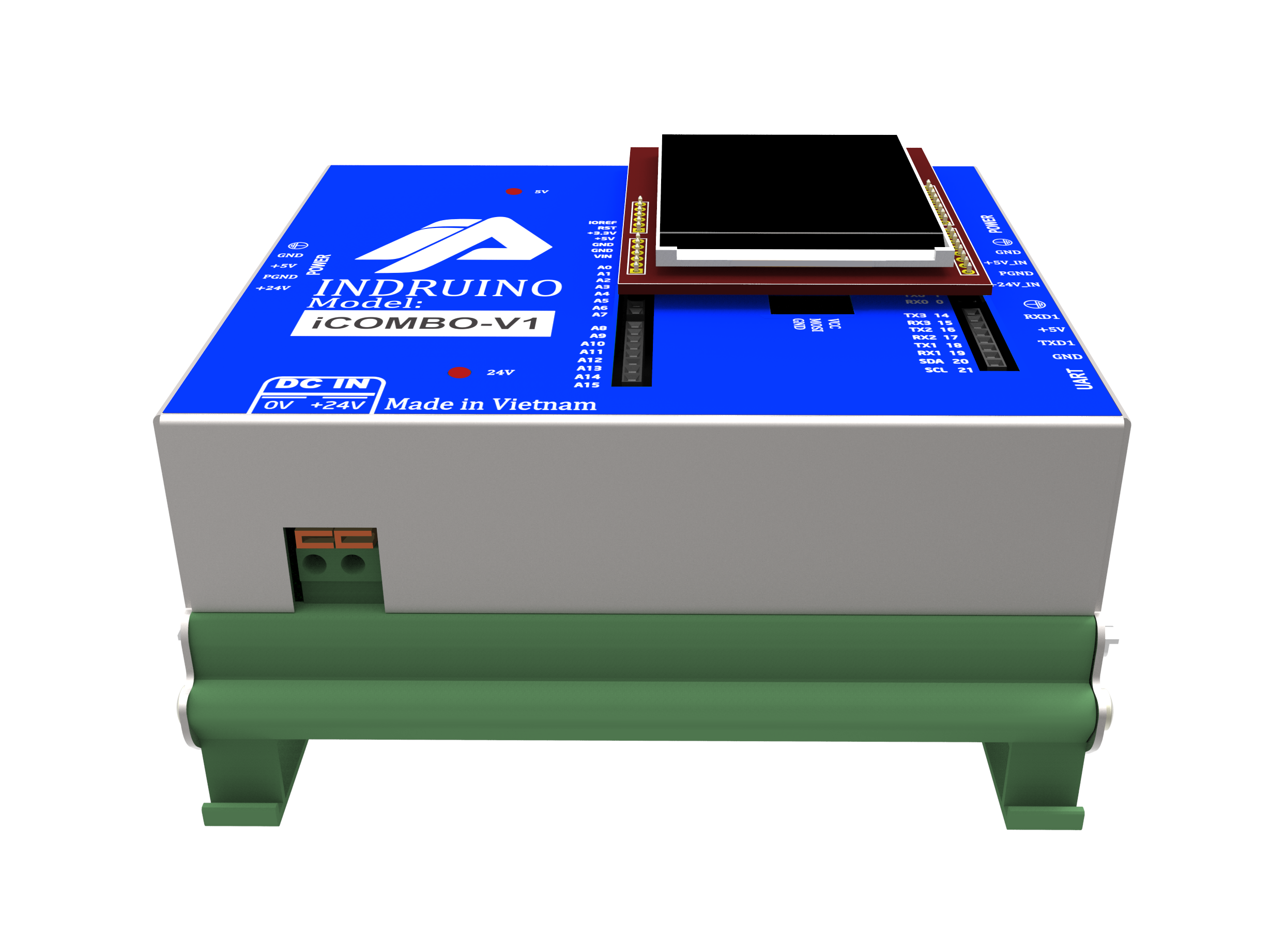

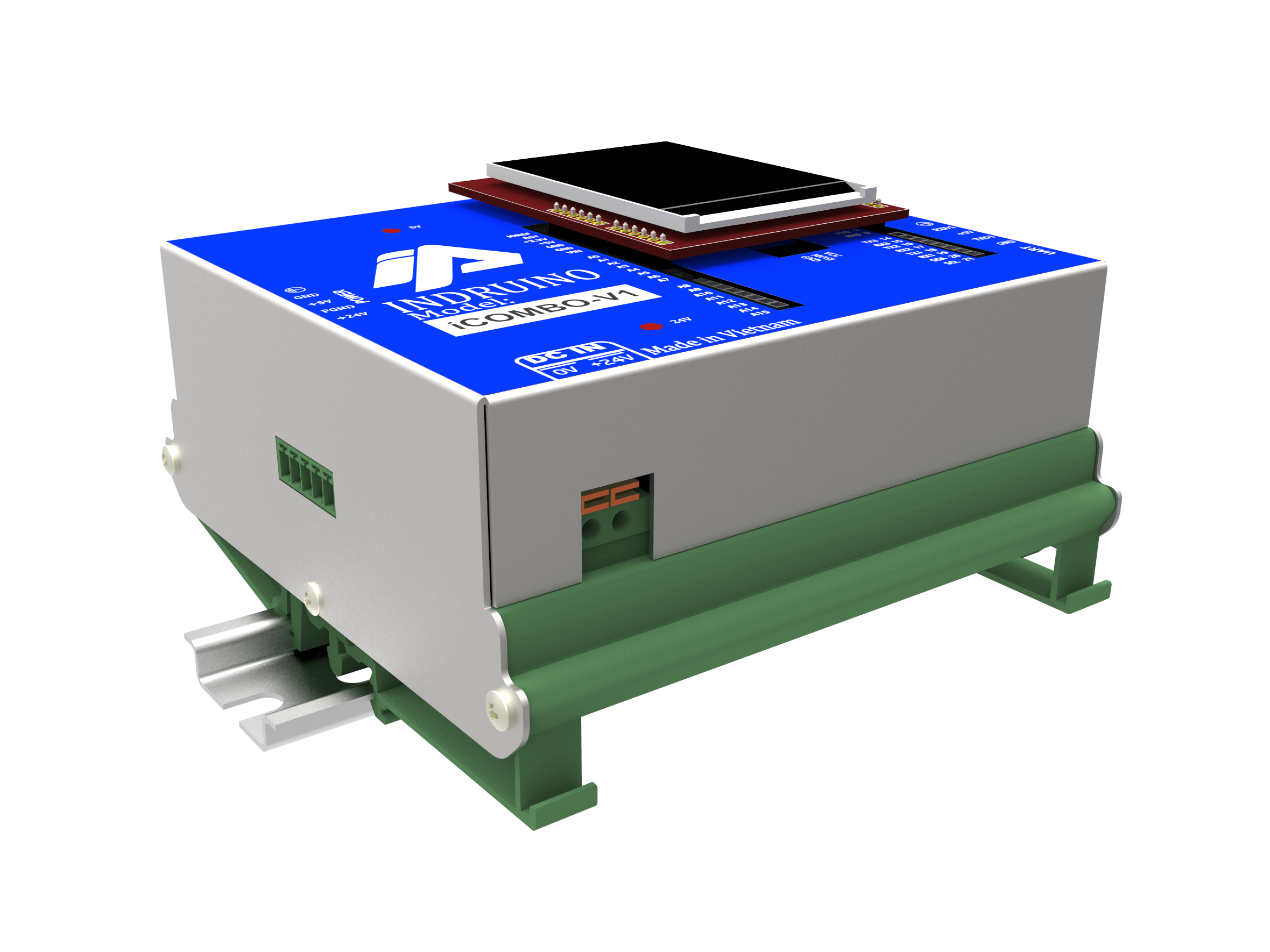

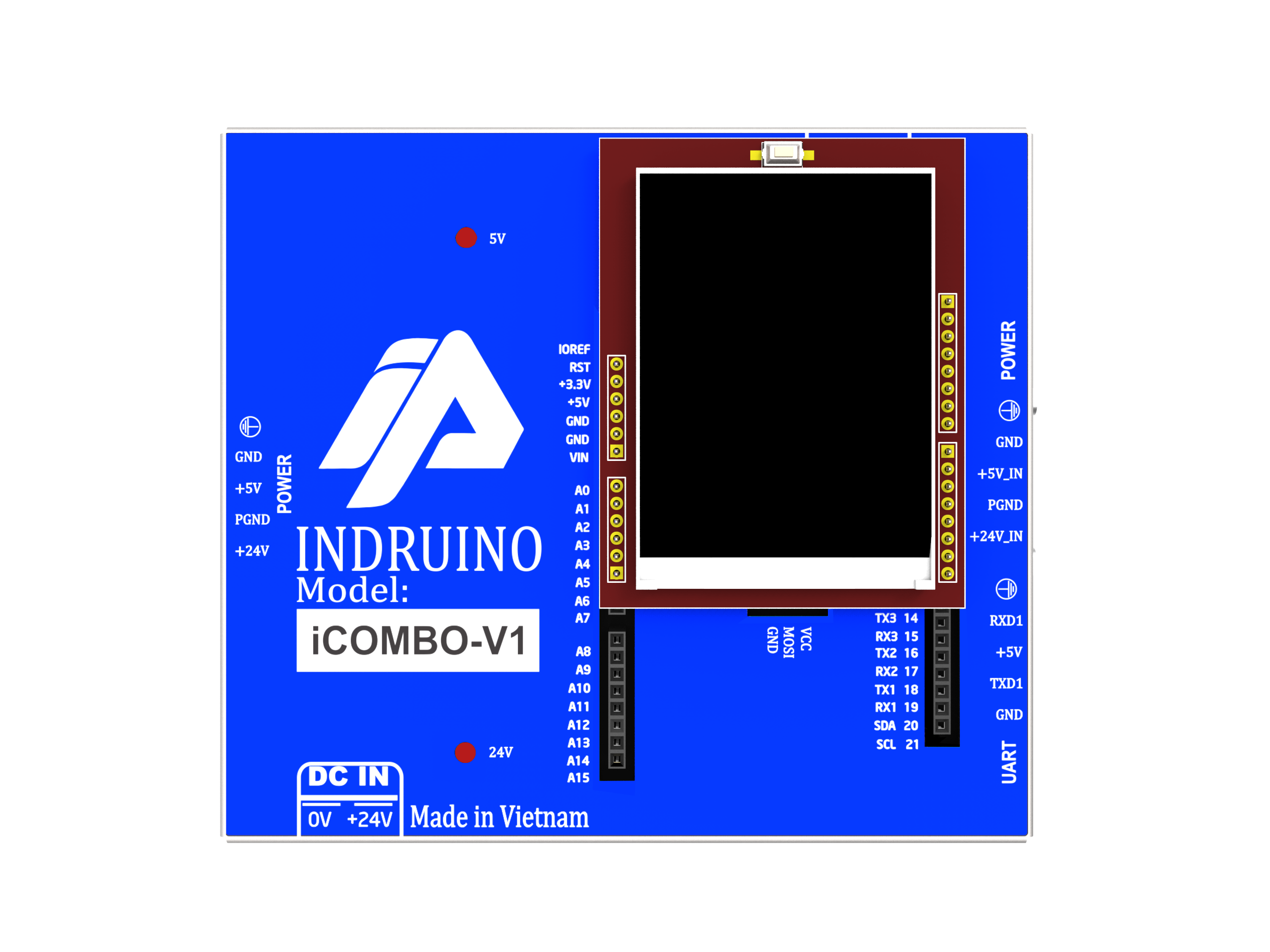

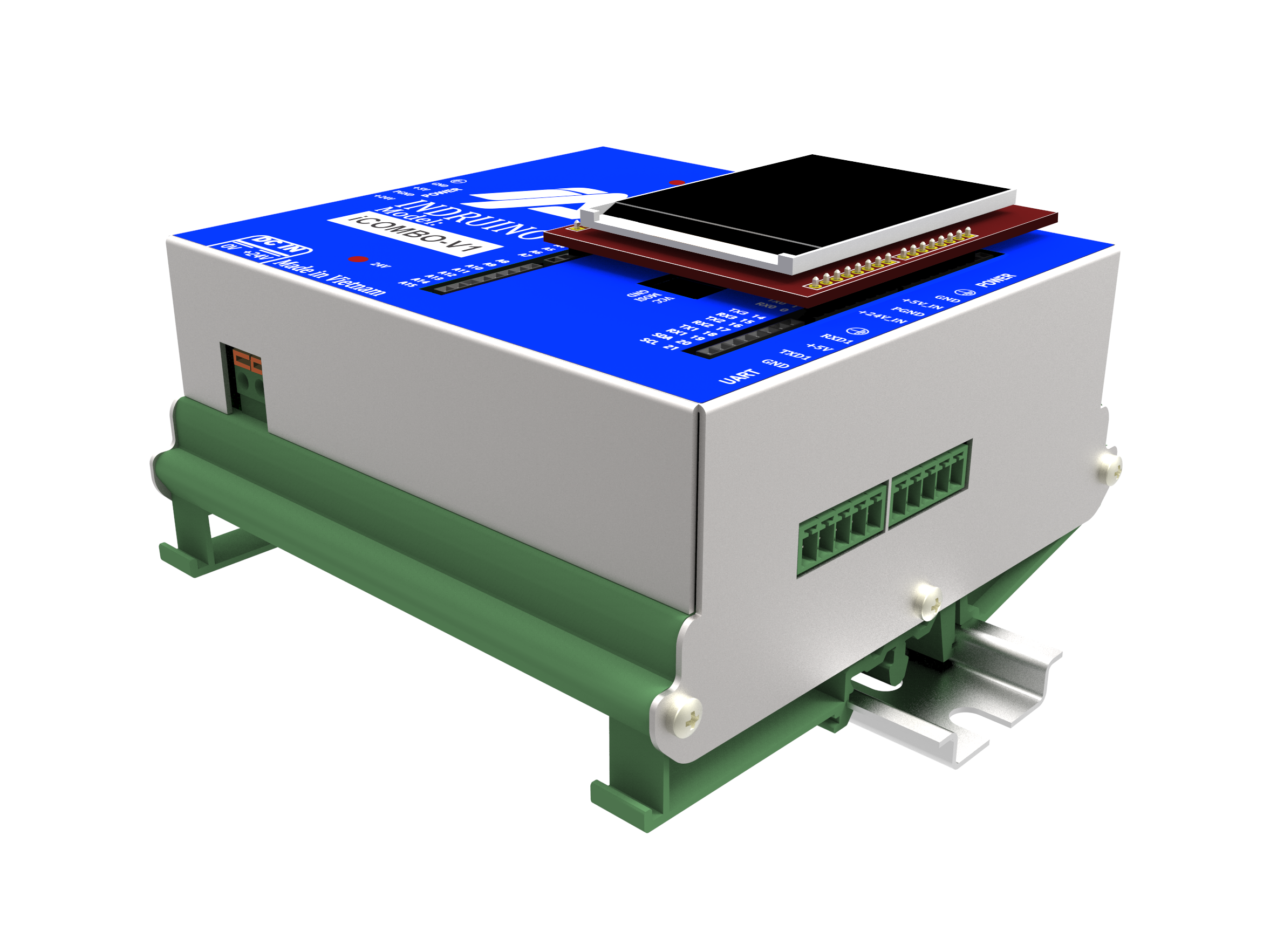

Indruino Combo Basic 05 is the perfect combination of: Power Supply DC / DC-24V / 5V-ISO, iMega2560-ISO controller combined with Indruino standard Baseboard & Adapter, stainless steel cover box and 2.4 inch TFT LCD Shield with resistive touch screen. Packaged with the industry standard Dinrail stand, the box to form a complete, ready-to-use solution in systems that require high stability, dust resistance.

Technical Specifications :

- Power supply: 24V
- Output voltage: 5V/2A
- Assembly method: Dinrail

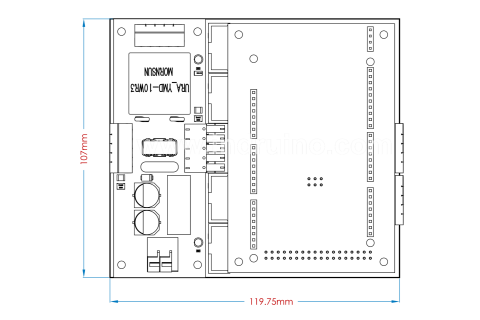

- Dimensions (LxWxH) : 123 x 124 x 90 mm
- Other features : Integrated inlet & outlet power port.
- Integrated UART port for extensioning I/Os.
- Includes:
    + iPower-ISO 5V/2A
    + CPU iMega2560-ISO
    + 2.4 inch TFT LCD Shield with resistive touch screen
    + Adapter board
    + Base board
    + Stainless steel protection cover

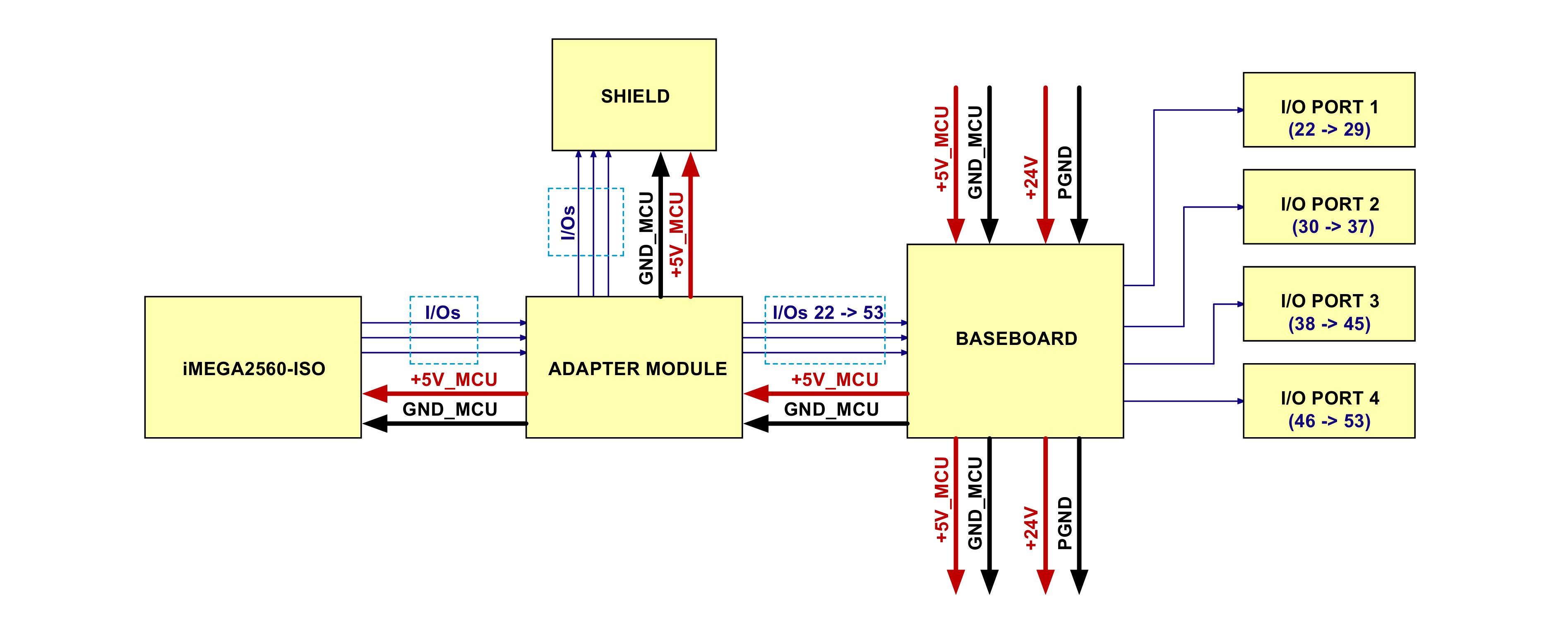

Block Diagram :

Download : https://drive.google.com/file/d/1GxR_s2clrxx-AqTqojLTtHt6E0Qfda2C/view?usp=sharing
