iMEGA2560 iOT
Description

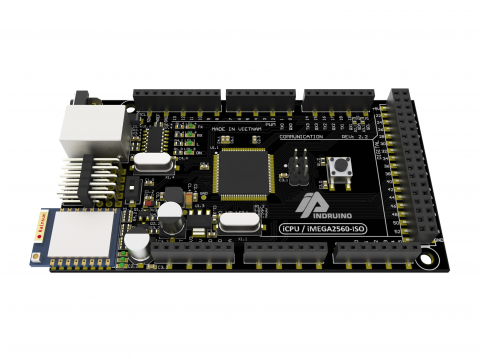

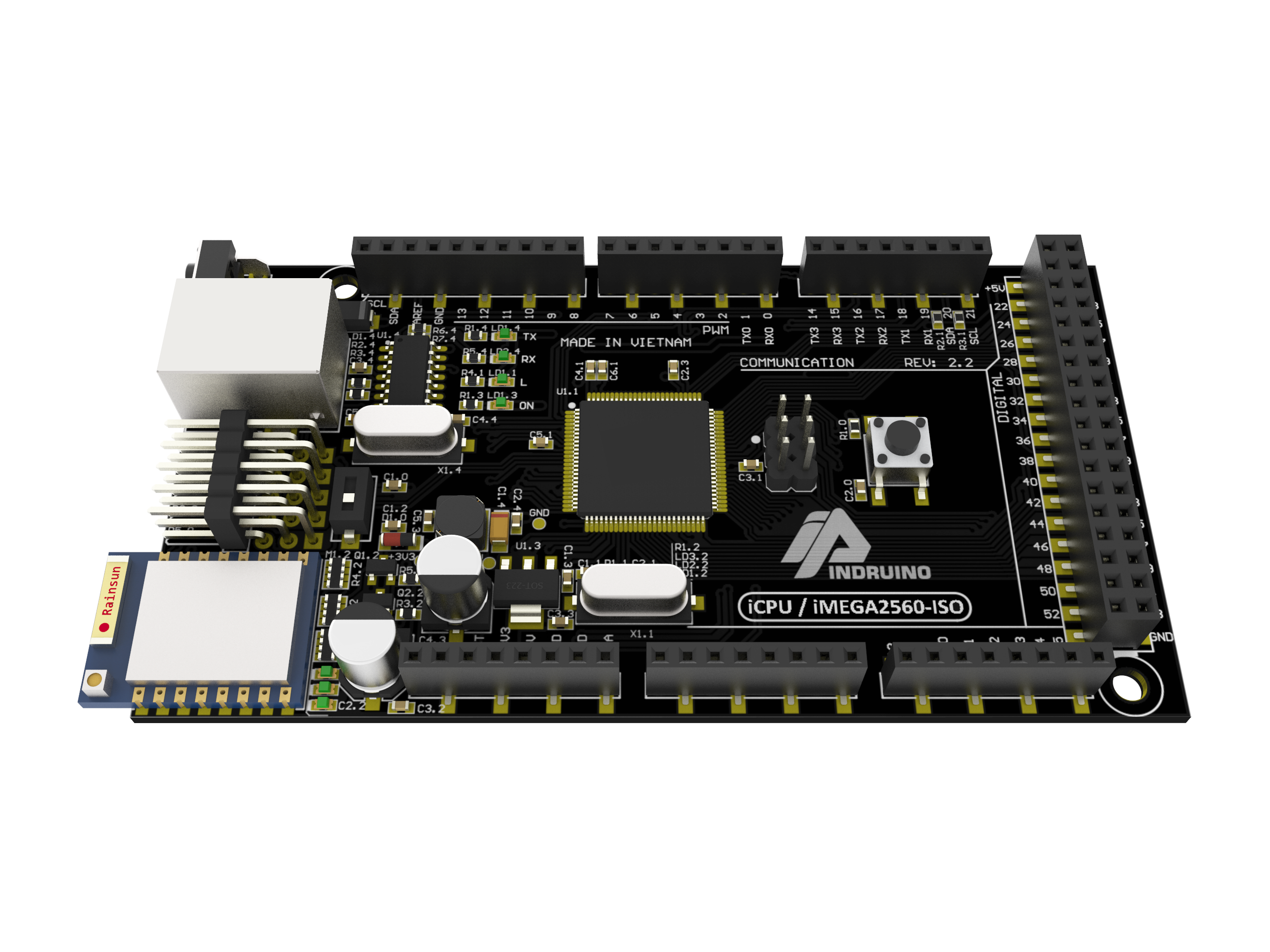

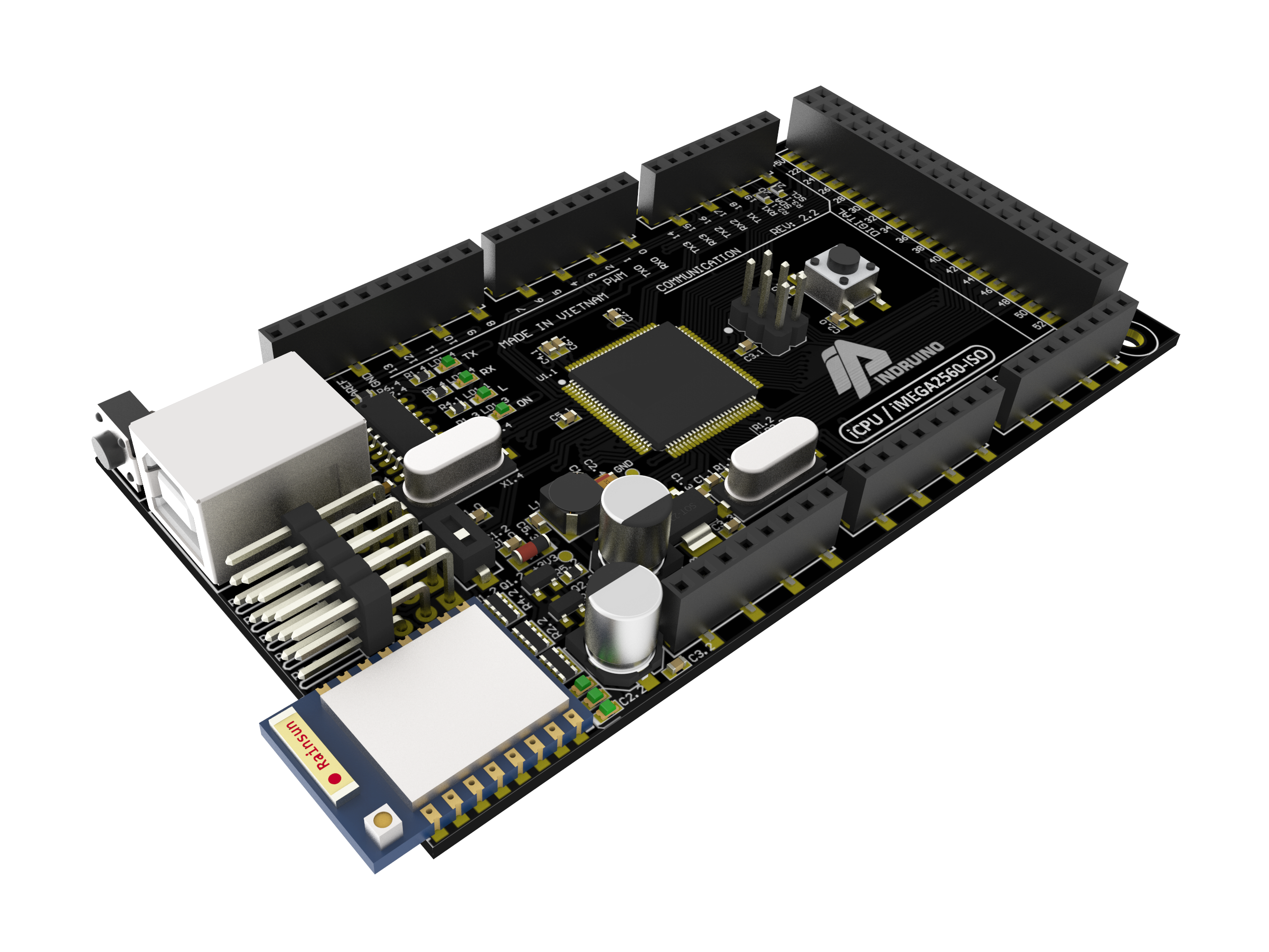

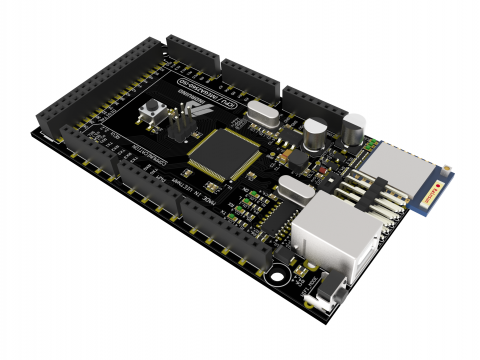

iMEGA2560 iOT
This product is designed for iOT applications. Main microcontroller is Mega2560 (Arduino compatible) and Wifi module is ESP8266.
Technical Specifications :
- Microcontroller : ATmega2560
- Power supply : 5V
- Interface : USB 2.0, WIFI 2.4GHz
- Digital I/O pins : 54 (15 PWM Digital I/O pins)
- Analog input pins : 16
- DC current for 3.3V pin : 50 mA
- DC current per I/O pin : 20 mA
- Flash memory : 256 KB
- SRAM : 8 KB
- EEPROM : 4 KB
- Clock speed : 16 MHz
- Led built-in : 13
- Dimensions (L x W x H) : 101.52 x 53.3 mm
- Weight : 60 g
- Other features : Arduino Mega2560 compatible; Upload sketch for MCU & WIFI via usb socket, select target via jumpers on board.

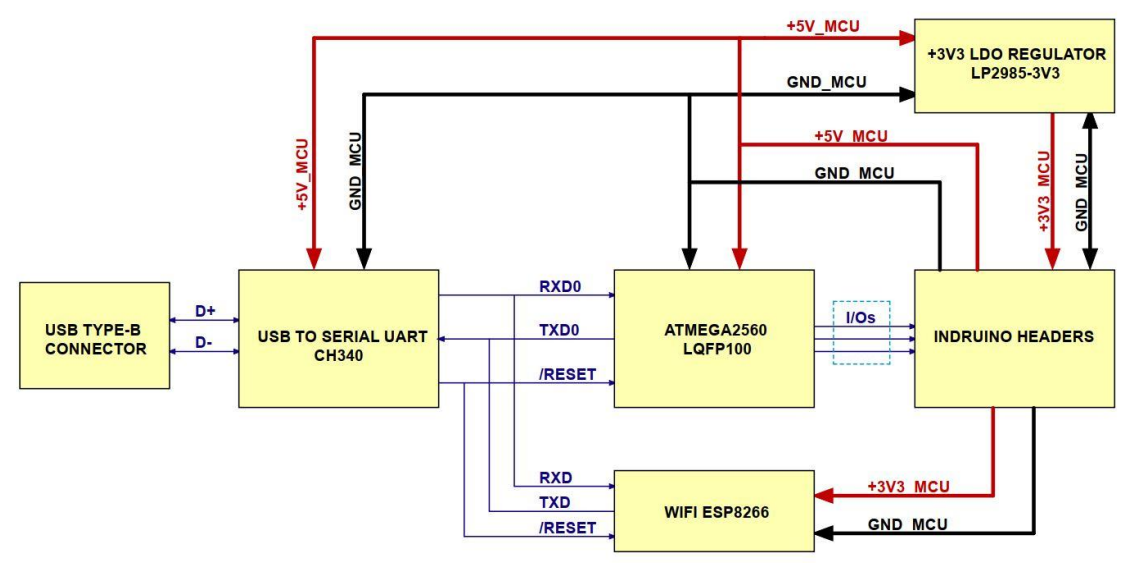

Block Diagram:
Download: https://drive.google.com/file/d/19tLp5cjjk3uRC6m8SHdEbfWsRgZHnx4U/view?usp=sharing
