iADC-2AI-ISOLATION MODULE

iADC-2AI-ISOLATION MODULE

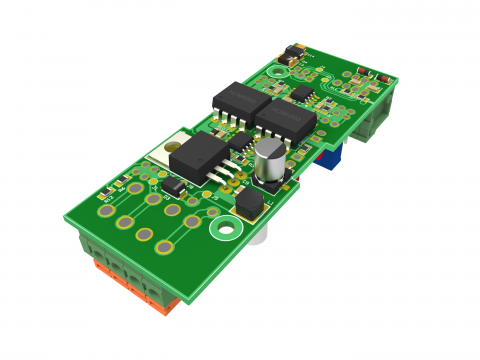

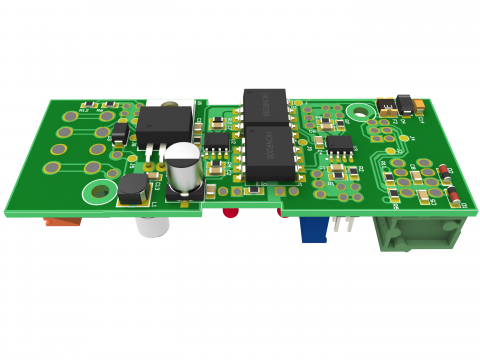

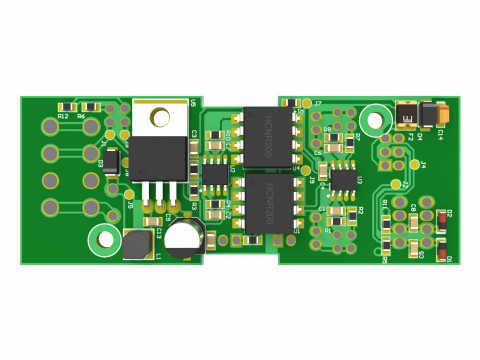

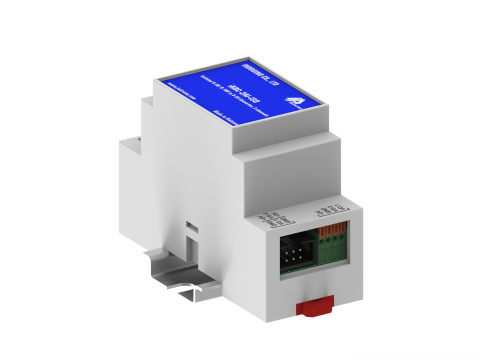

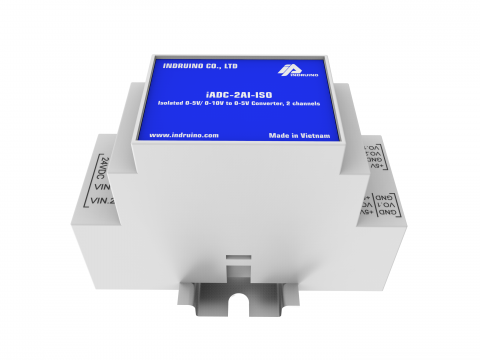

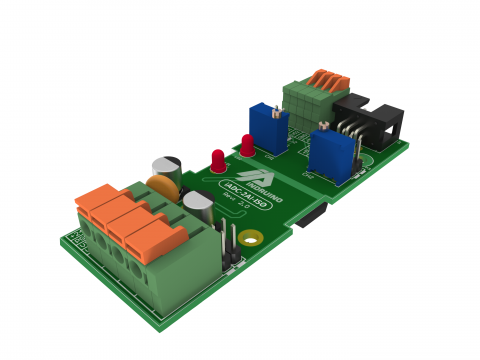

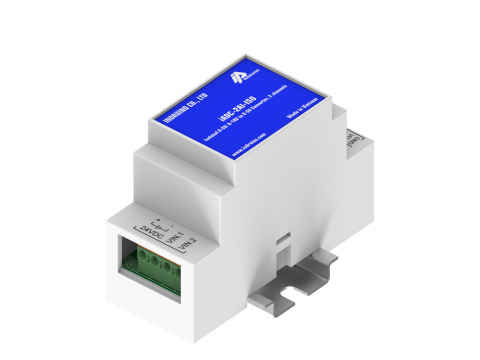

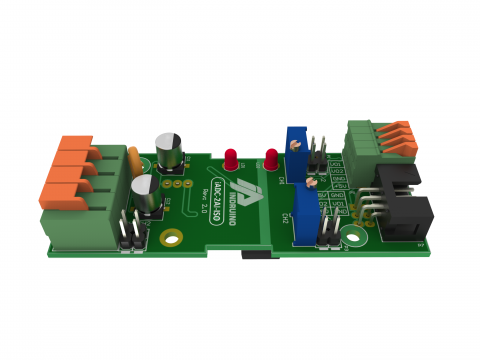

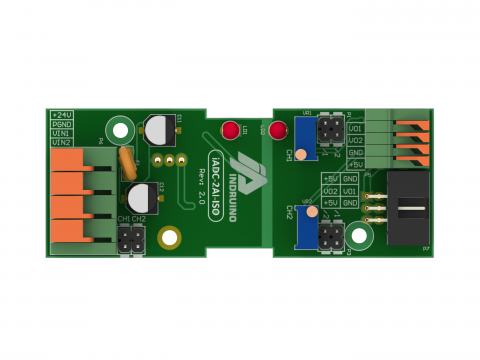

This product is used for converting the industrial analog signal range (0-5V; 0-10V; -10V -> 10V) to 0-5V analog signal range which is compatible with almost MCUs.

Key features :

- Industrial standard design, using the high quality  analog optocoupler and the isolated DC/DC power supply module, reduces noise from outside environment.

- Using the spring contact connector and IDC 3x2 connector, easy to assemly, replace or maintain.

- Small size, compatible with dinrail standard.

Technical Specifications :

- Power supply : 24V & 5V

- Num of channels : 2

- Input voltage : 0 ÷ 5V; 0 ÷ 10V; -10 ÷ 10V

- Output voltage : 0 ÷ 5V

- Isolation voltage : 5000Vrms

- Assembly method : Dinrail

- Dimensions (LxWxH)  : 72 x 42 x 31 mm

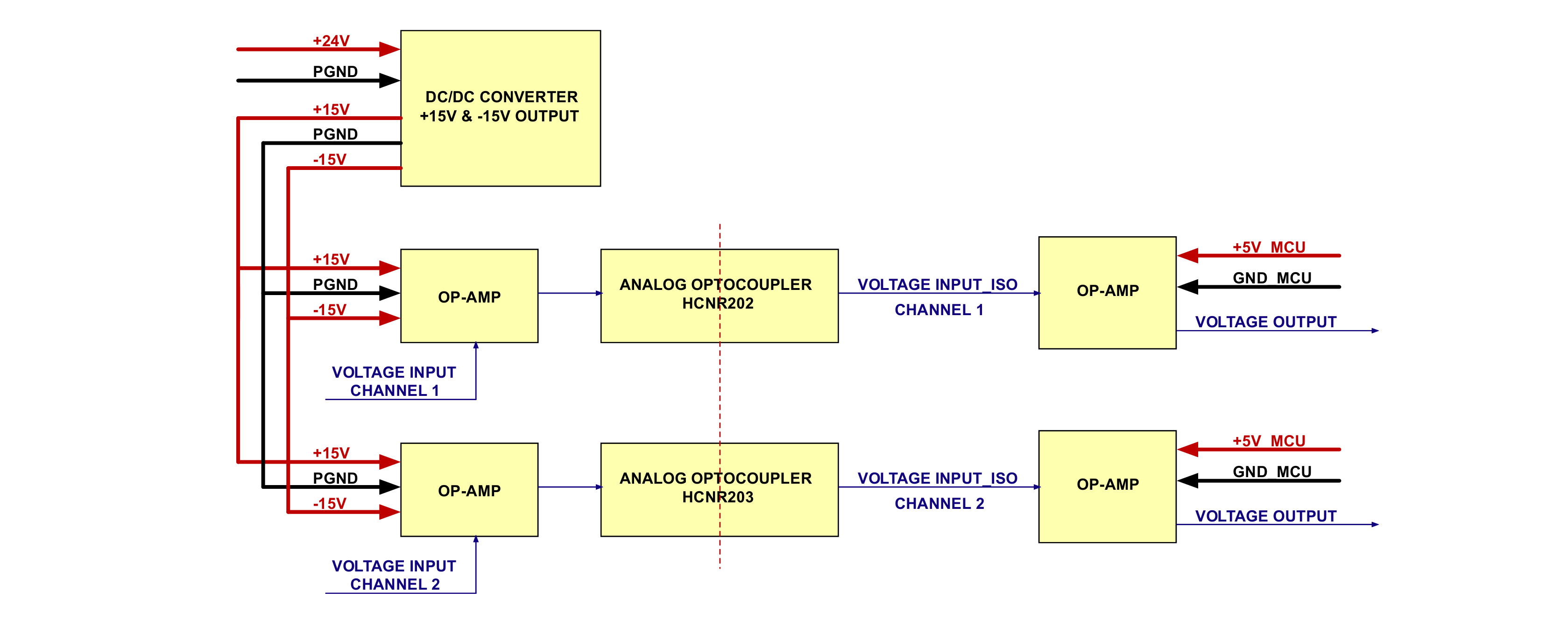

 Block Diagram :

Download : https://drive.google.com/file/d/1OHeQXux_n-T0tsIdJOSaV_WZge8zsh9k/view?usp=sharing

Video demo :  https://youtu.be/UUZ_5TmpKyk
