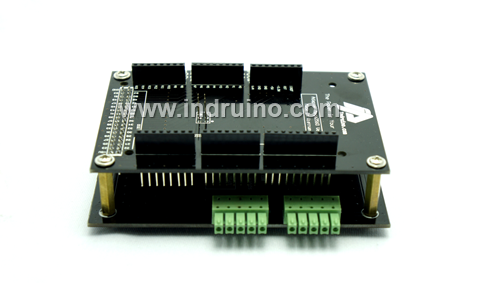

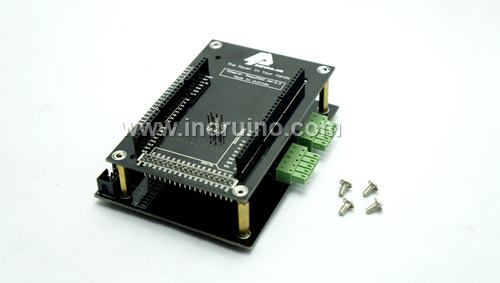

Baseboard & Adapter Basic

Baseboard& Adapter Basic

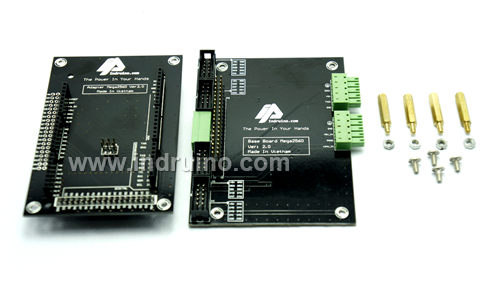

- Including base board basic and adapter board basic. This product is optimal designed for those systems which requires quickly in connection, assembly and replacement.

Technical Specifications :

Adapter

- Power supply : 5V

- Pinout configuration : Arduino pinout

- Dimensions (LxWxH) : 69 x 103 x 25 mm

Baseboard

- Power supply : 24V & 5V

- Protection : Anti-ESD for I/Os

- Digital I/O ports : 4

- Assembly method : Dinrail

- Dimensions (LxWxH) : 80 x 107 x 23 mm

 Download: https://drive.google.com/file/d/15-TH1J-hRaxEM0Oy6hB71FAa5cB7r3uL/view?usp=sharing
