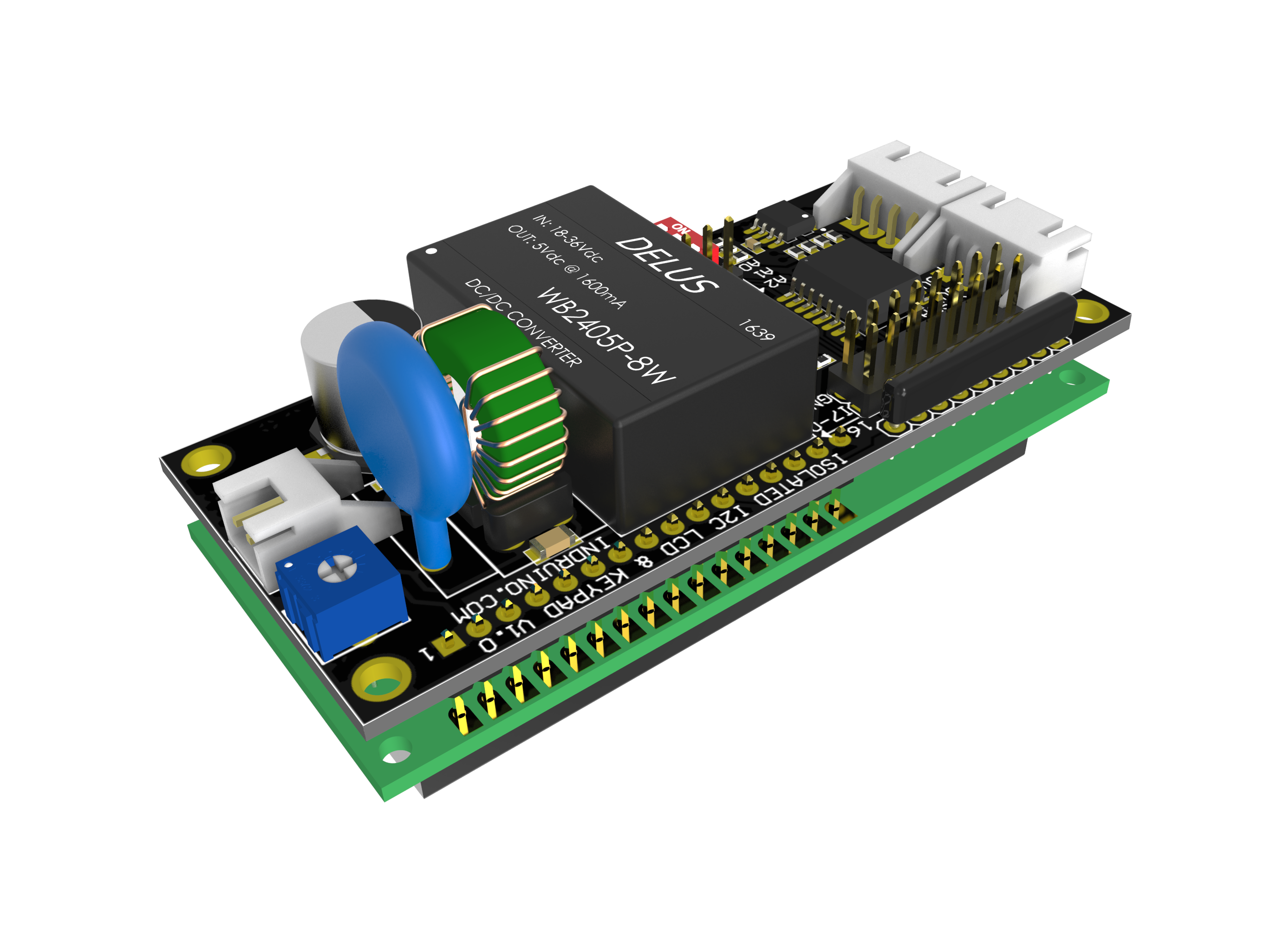

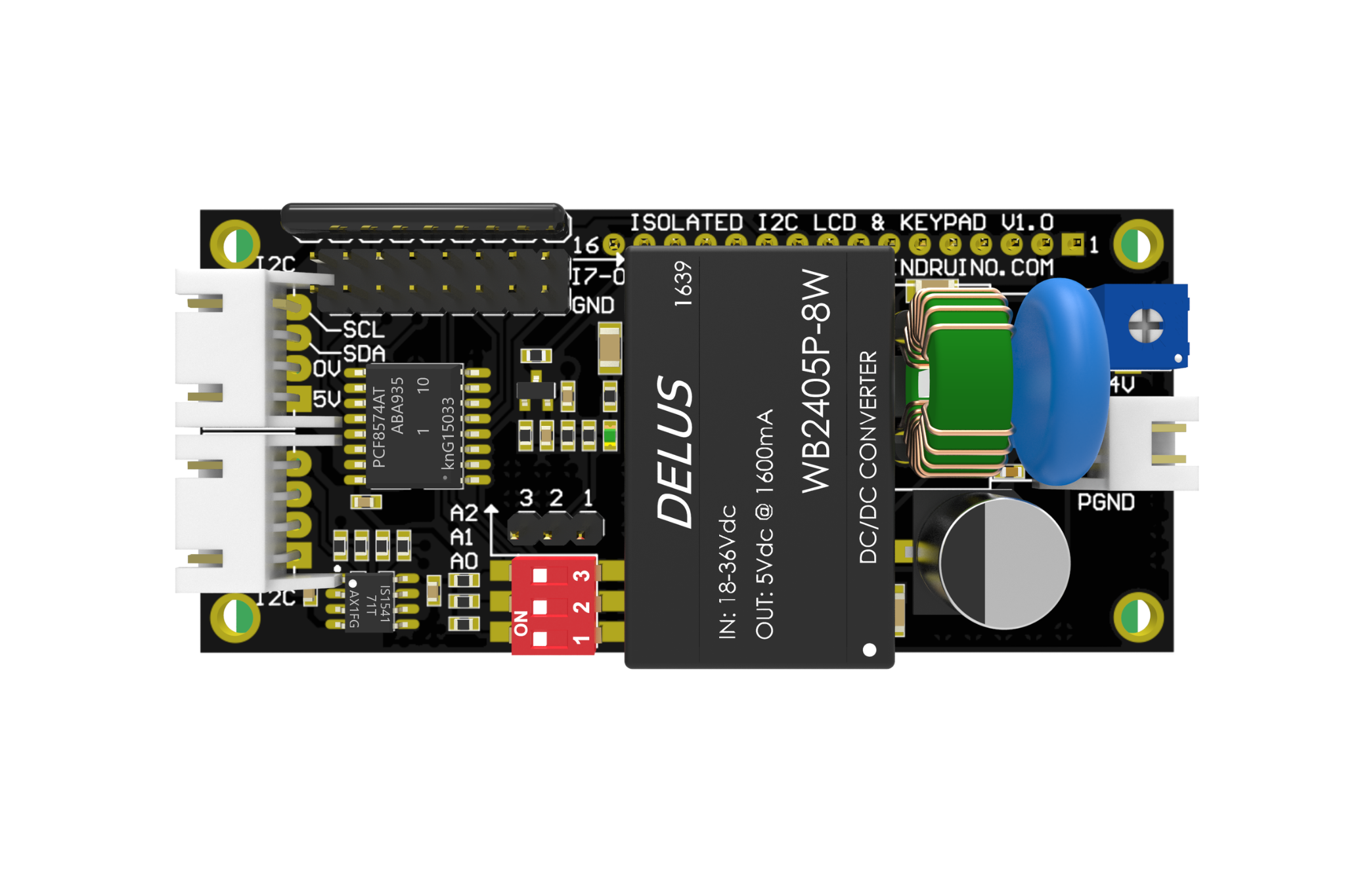

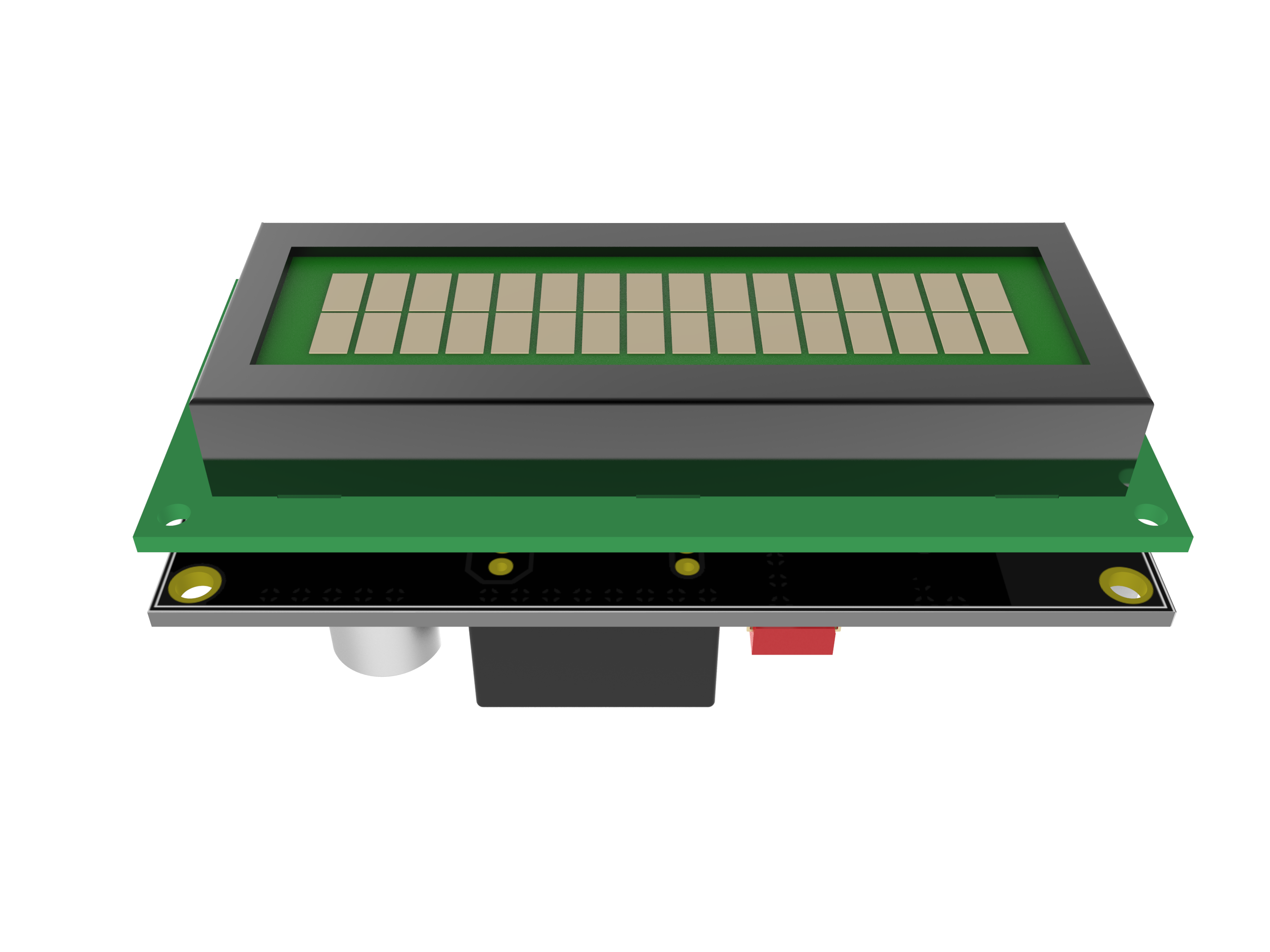

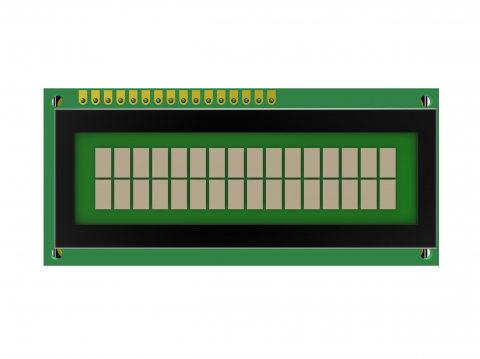

 This is control board for character LCD: 8x2, 16x2, 20x4. Designed for industrial environment.

Key features :

- Opto isolation and DC/DC isolation.

- I2C isolation communication.

Technical Specifications :

- Power supply : 24 V & 5 V

- Protocol : I2C

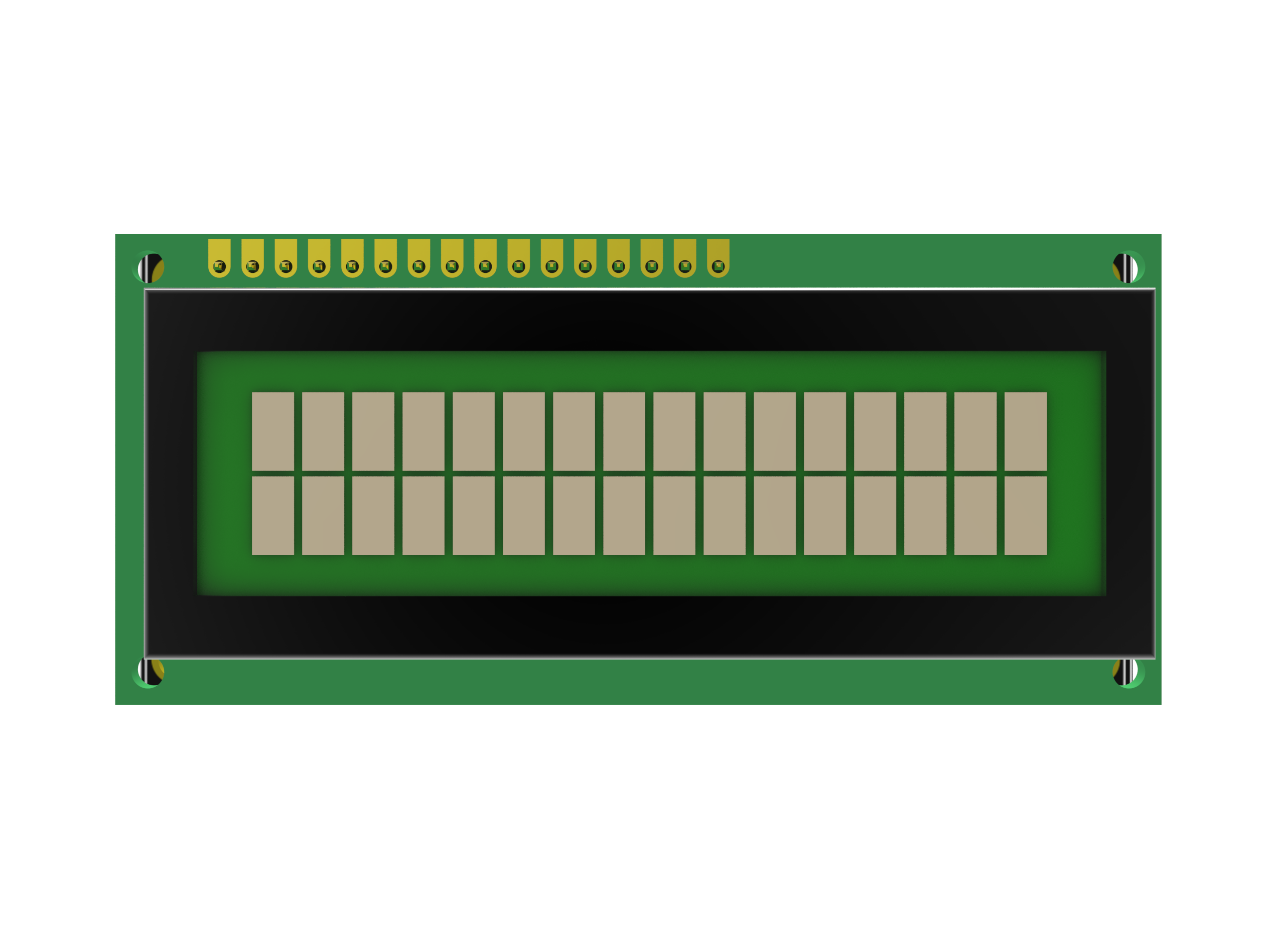

- Display type : Character LCD

- Display size : 16 x 2

- Isolation voltage : 2500Vrms

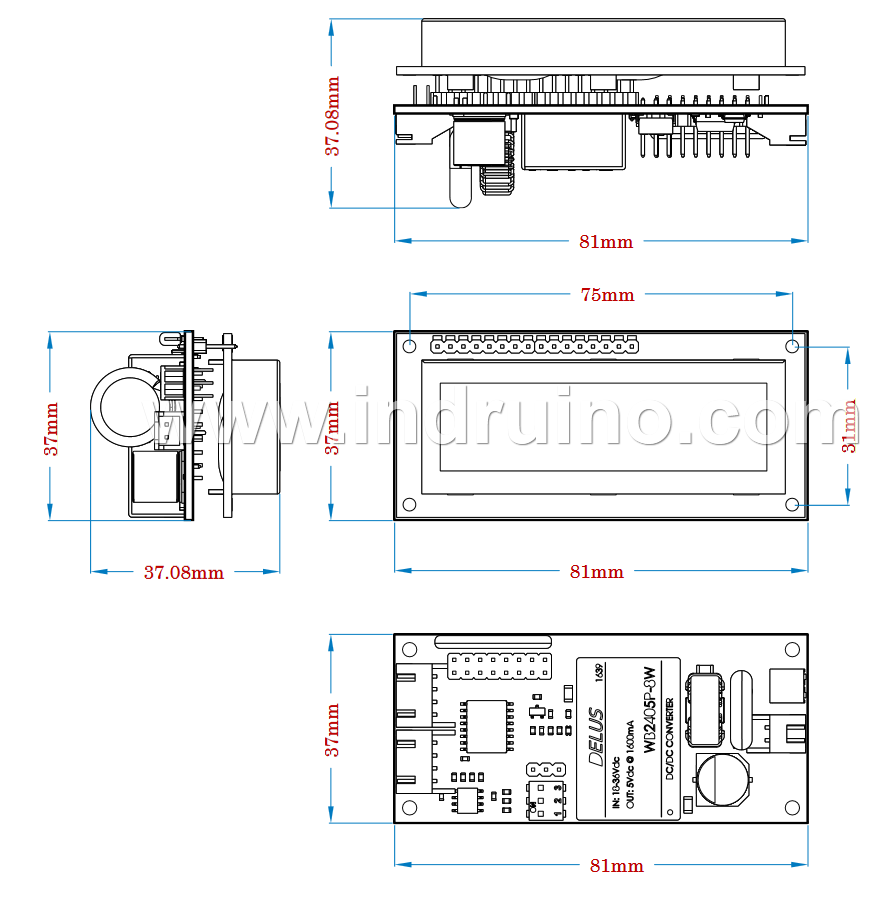

- Dimensions (L x W x H) : 81 x 37 x 37 mm

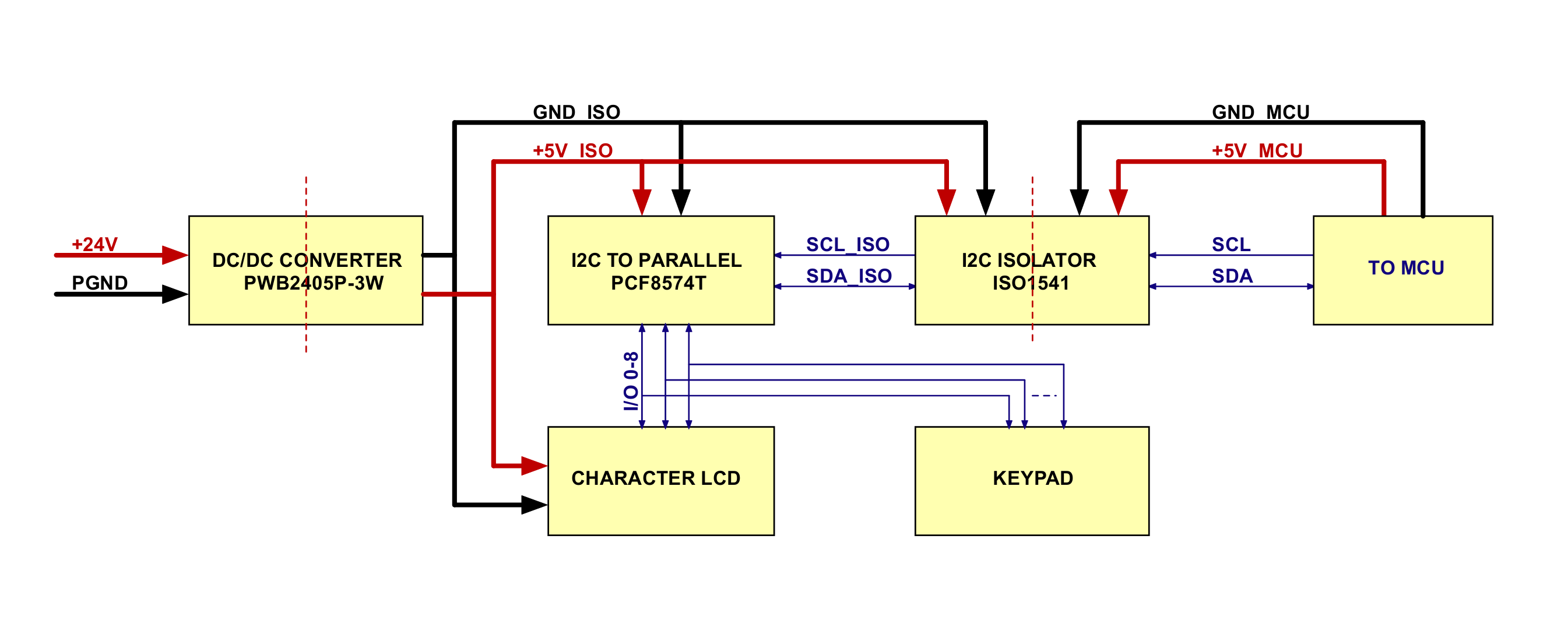

Block Diagram :

Download : https://drive.google.com/file/d/16YUCn1Ohh6n3GEZSd1PY4rTUMhc7-Hfz/view?usp=sharing
