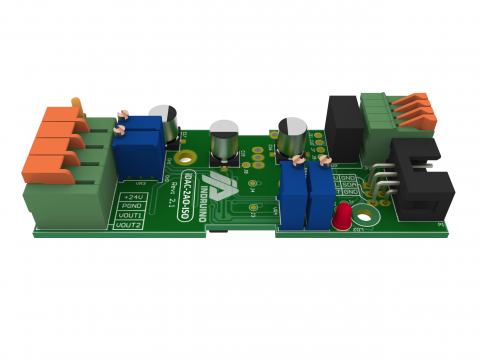

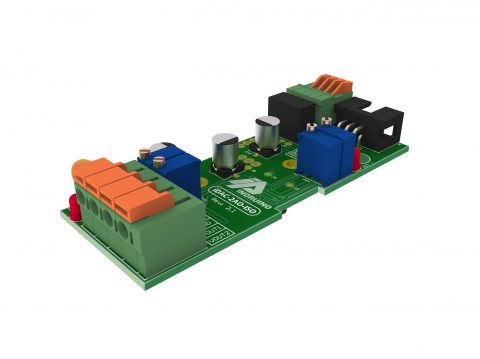

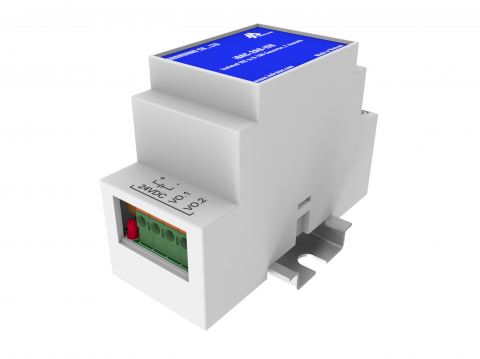

This product is used for providing the industrial signal range from -10 to 10V or 0 to 10V to control the industrial devices such as inverter.

Key features :

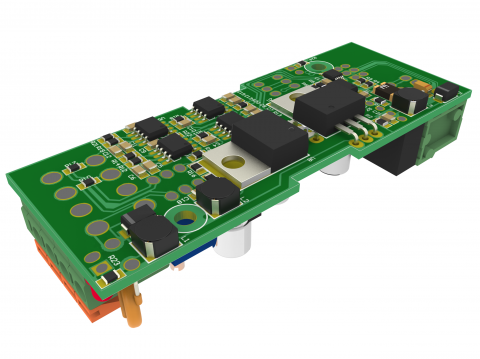

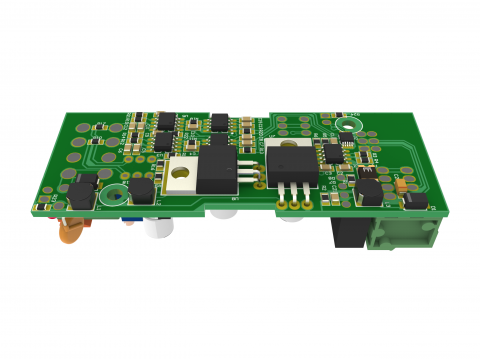

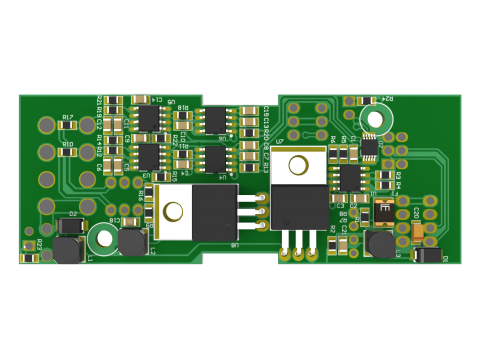

- Industrial standard design, using the high speed I2C optocoupler to communicate with the 10-bits DAC from Microchip. Using isolated DC/DC module to reduces noise from outside environment.

- The output signals are buffered upto 300mA, avoid signal dropping.

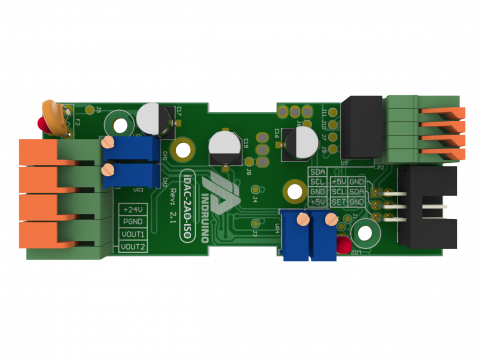

- Using the spring contact connector and IDC 3x2 connector, easy to assemly, replace or maintain.

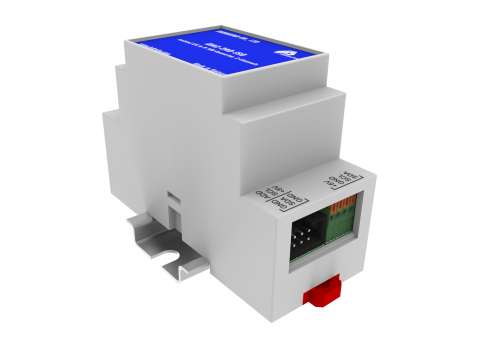

- Small size, compatible with dinrail standard.

Technical Specifications :

- Power supply : 24V & 5V

- Num of channels : 2

- Interface : I2C isolation

- Output voltage : 0 ÷ 5V; 0 ÷ 10V; -10 ÷ 10V

- Isolation voltage : 2500Vrms

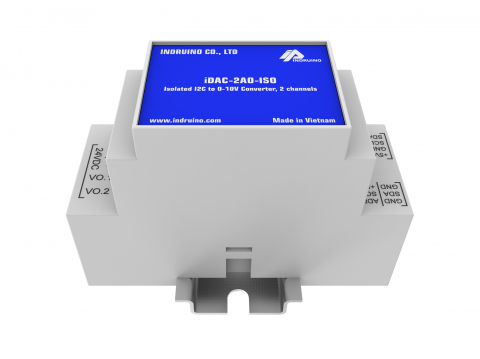

- Assembly method : Dinrail

- Dimensions (LxWxH) : 72 x 42 x 31 mm

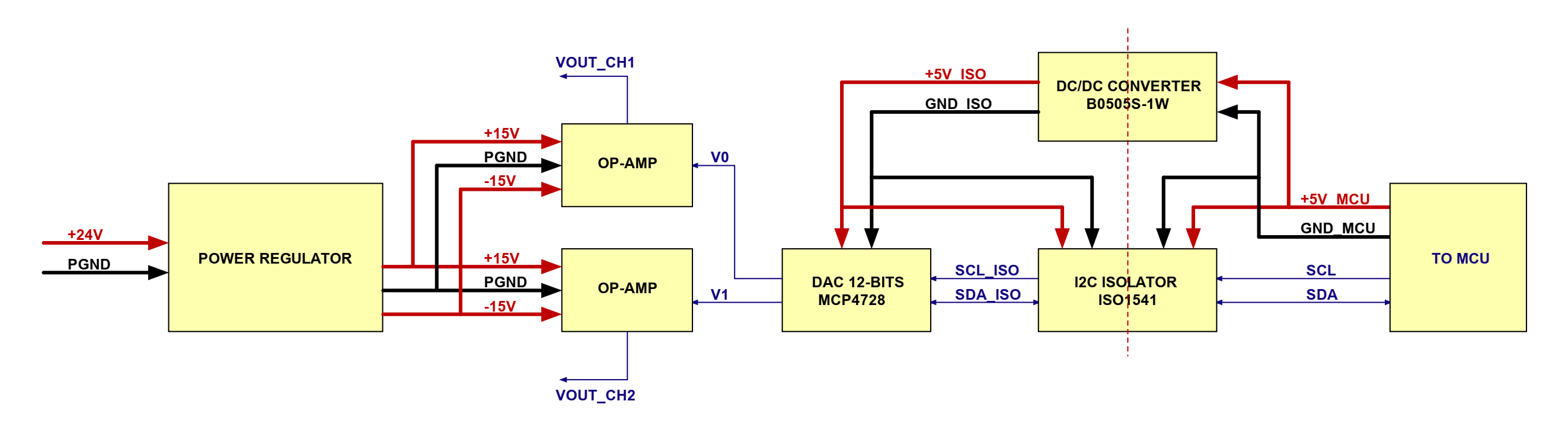

Block Diagram :

Download : https://drive.google.com/file/d/1y3dGRJivZJvssQ5mo7FtBKtkCmdJkj4M/view?usp=sharing
